Hazard Warning Switch: Testing and Inspection

LIGHTING: HAZARD WARNING SWITCH: INSPECTION

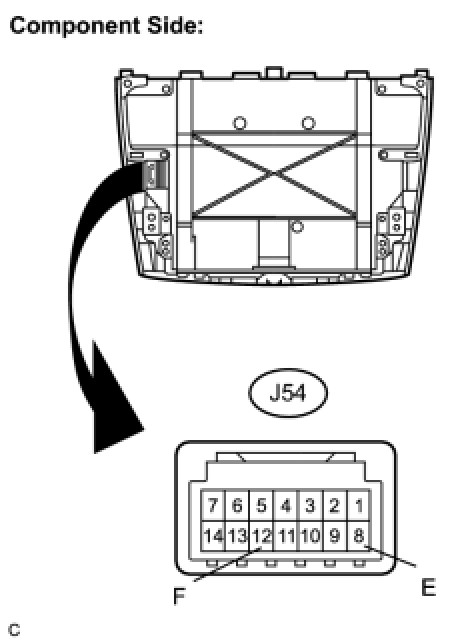

1. INSPECT INTEGRATION CONTROL PANEL (Without Navigation System)

(a) Measure the resistance according to the value(s) in the table below.





Standard resistance:





If the result is not as specified, replace the integration control panel.

2. INSPECT CLOCK ASSEMBLY (With Navigation System)

(a) Measure the resistance according to the value(s) in the table below.





Standard resistance:





If the result is not as specified, replace the clock assembly.
