Inspection

LIGHTING: STOP LIGHT SWITCH: INSPECTION

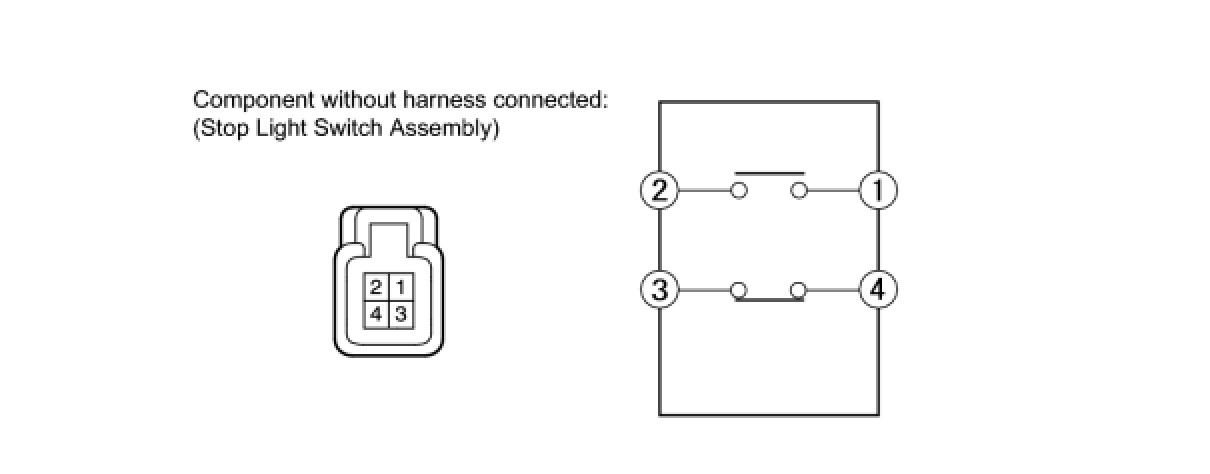

1. INSPECT STOP LIGHT SWITCH ASSEMBLY

(a) Remove the switch.





(b) Measure the resistance according to the value(s) in the table below.

Standard resistance:





If the result is not as specified, replace the switch assembly.
