Removal

LIGHTING: STOP LIGHT SWITCH: REMOVAL

1. DISCONNECT CABLE FROM NEGATIVE BATTERY TERMINAL

CAUTION:
Wait for 90 seconds after disconnecting the cable to prevent airbag deployment Service Precautions

2. REMOVE FRONT DOOR SCUFF PLATE LH (w/o Illumination) Removal

3. REMOVE FRONT DOOR SCUFF PLATE LH (w/ Illumination) Removal

4. REMOVE FRONT DOOR OPENING TRIM COVER LH Removal

5. REMOVE SIDE INSTRUMENT PANEL LH Removal

6. REMOVE NO. 1 INSTRUMENT PANEL UNDER COVER SUB-ASSEMBLY Removal

7. REMOVE LOWER INSTRUMENT PANEL FINISH PANEL SUB-ASSEMBLY Removal

8. REMOVE DRIVER SIDE KNEE AIRBAG ASSEMBLY Removal

9. REMOVE STOP LIGHT SWITCH ASSEMBLY

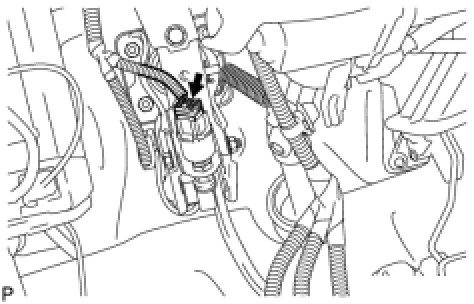

(a) Disconnect the connector.

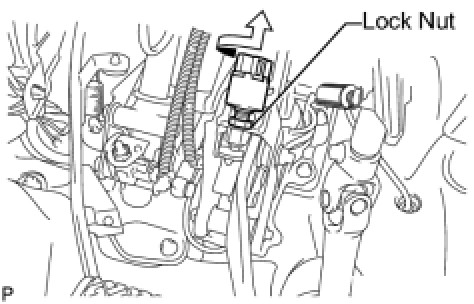

(b) Loosen the lock nut and remove the stop light switch assembly.
