Component Tests and General Diagnostics

LIGHTING: LICENSE PLATE LIGHT ASSEMBLY: ON-VEHICLE INSPECTION

1. INSPECT LICENSE PLATE LIGHT ASSEMBLY

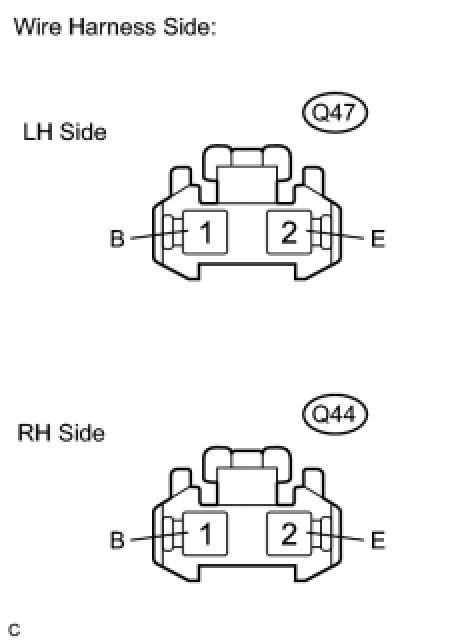

(a) Disconnect the connector from the license plate light.





(b) Measure the voltage according to the value(s) in the table below.

Standard voltage:

LH Side
RH Side










If the result is not as specified, repair or replace the wire harness or connector.
