Removal

LIGHTING: REAR DOOR COURTESY SWITCH: REMOVAL

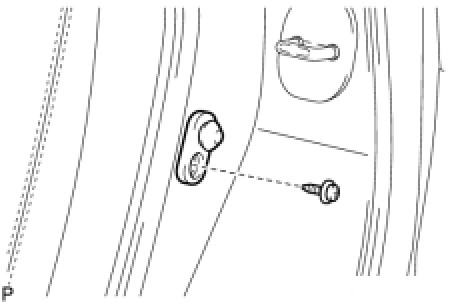

1. REMOVE REAR DOOR COURTESY LIGHT SWITCH ASSEMBLY

(a) Using a "torx" socket wrench (T30), remove the "torx" bolt.





(b) Disconnect the connector and remove the rear door courtesy light switch assembly.
