Removal

LIGHTING: FRONT DOOR COURTESY SWITCH: REMOVAL

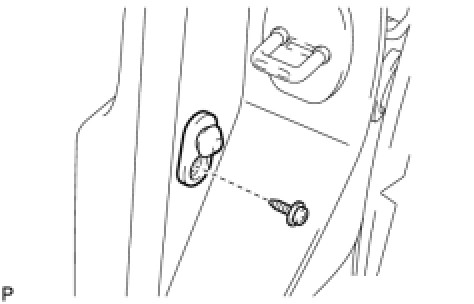

1. REMOVE FRONT DOOR COURTESY LIGHT SWITCH ASSEMBLY

(a) Using a "torx" socket wrench (T30), remove the "torx" bolt.





(b) Disconnect the connector and remove the front door courtesy light switch assembly.
