Dimmer Switch: Testing and Inspection





METER: LIGHT CONTROL RHEOSTAT: INSPECTION

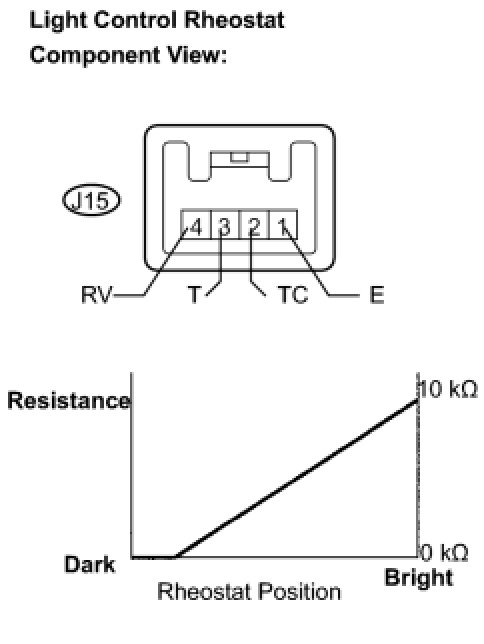

1. INSPECT LIGHT CONTROL RHEOSTAT

(a) Measure the resistance according to the value(s) in the table below.





Standard resistance:





HINT
If the value is not as specified, replace the light control rheostat.
