Removal

METER: LIGHT CONTROL RHEOSTAT: REMOVAL

1. REMOVE FRONT DOOR SCUFF PLATE LH (w/o Illumination) Removal

2. REMOVE FRONT DOOR SCUFF PLATE LH (w/ Illumination) Removal

3. REMOVE FRONT DOOR OPENING TRIM COVER LH Removal

4. REMOVE SIDE INSTRUMENT PANEL LH Removal

5. REMOVE LOWER INSTRUMENT PANEL FINISH PANEL SUB-ASSEMBLY Removal

6. REMOVE LIGHT CONTROL RHEOSTAT

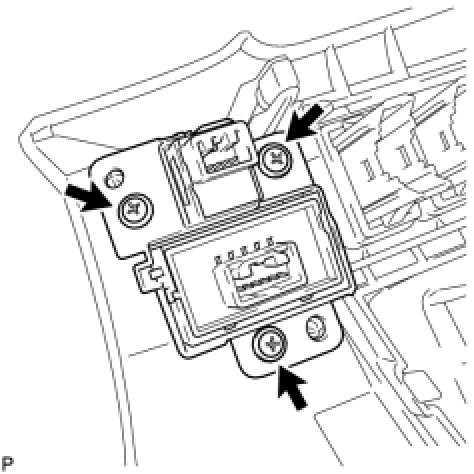

(a) Remove the 3 screws and the finish panel No. 2 retainer with switch.

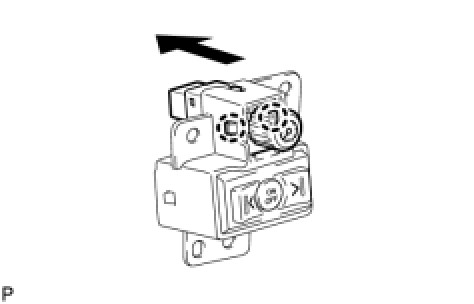

(b) Disengage the 2 claws and remove the light control rheostat from the finish panel No. 2 retainer.
