Installation

METER: LIGHT CONTROL RHEOSTAT: INSTALLATION

1. INSTALL LIGHT CONTROL RHEOSTAT

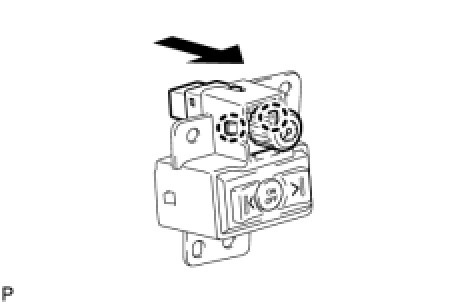

(a) Engage the 2 claws and install the light control rheostat.





(b) Install the finish panel No. 2 retainer with switch with the 3 screws.





2. INSTALL LOWER INSTRUMENT PANEL FINISH PANEL SUB-ASSEMBLY Installation

3. INSTALL SIDE INSTRUMENT PANEL LH Installation

4. INSTALL FRONT DOOR OPENING TRIM COVER LH Installation

5. INSTALL FRONT DOOR SCUFF PLATE LH (w/o Illumination) Installation

6. INSTALL FRONT DOOR SCUFF PLATE LH (w/ Illumination) Installation
