Installation

4GR-FSE ENGINE MECHANICAL: REAR CRANKSHAFT OIL SEAL: INSTALLATION

1. INSTALL ENGINE REAR OIL SEAL

(a) Apply MP grease to the lip of a new oil seal.

NOTICE:
Keep the lip free of foreign matter.

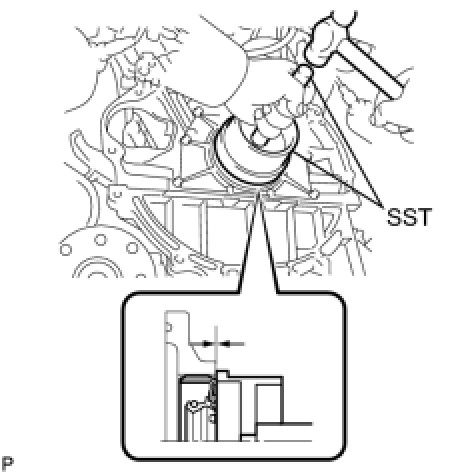

(b) Using SST and a hammer, tap in the oil seal until its surface is flush with the rear oil seal retainer edge.





SST : 09223-15030

SST : 09950-70010

09951-07150

NOTICE:
* Wipe off extra grease of the crankshaft.
* Keep the lip free of foreign matter.
* Do not tap on the oil seal at an angle.

2. INSTALL FLYWHEEL SUB-ASSEMBLY (for Manual Transmission) Installation

3. INSTALL DRIVE PLATE AND RING GEAR SUB-ASSEMBLY (for Automatic Transmission) Installation

4. INSTALL MANUAL TRANSMISSION ASSEMBLY (for Manual Transmission)

HINT
.

5. INSTALL AUTOMATIC TRANSMISSION ASSEMBLY (for Automatic Transmission)

HINT
* A960E .
* A760H Installation.

6. INSPECT FOR OIL LEAK
