Hazard Warning Lamps

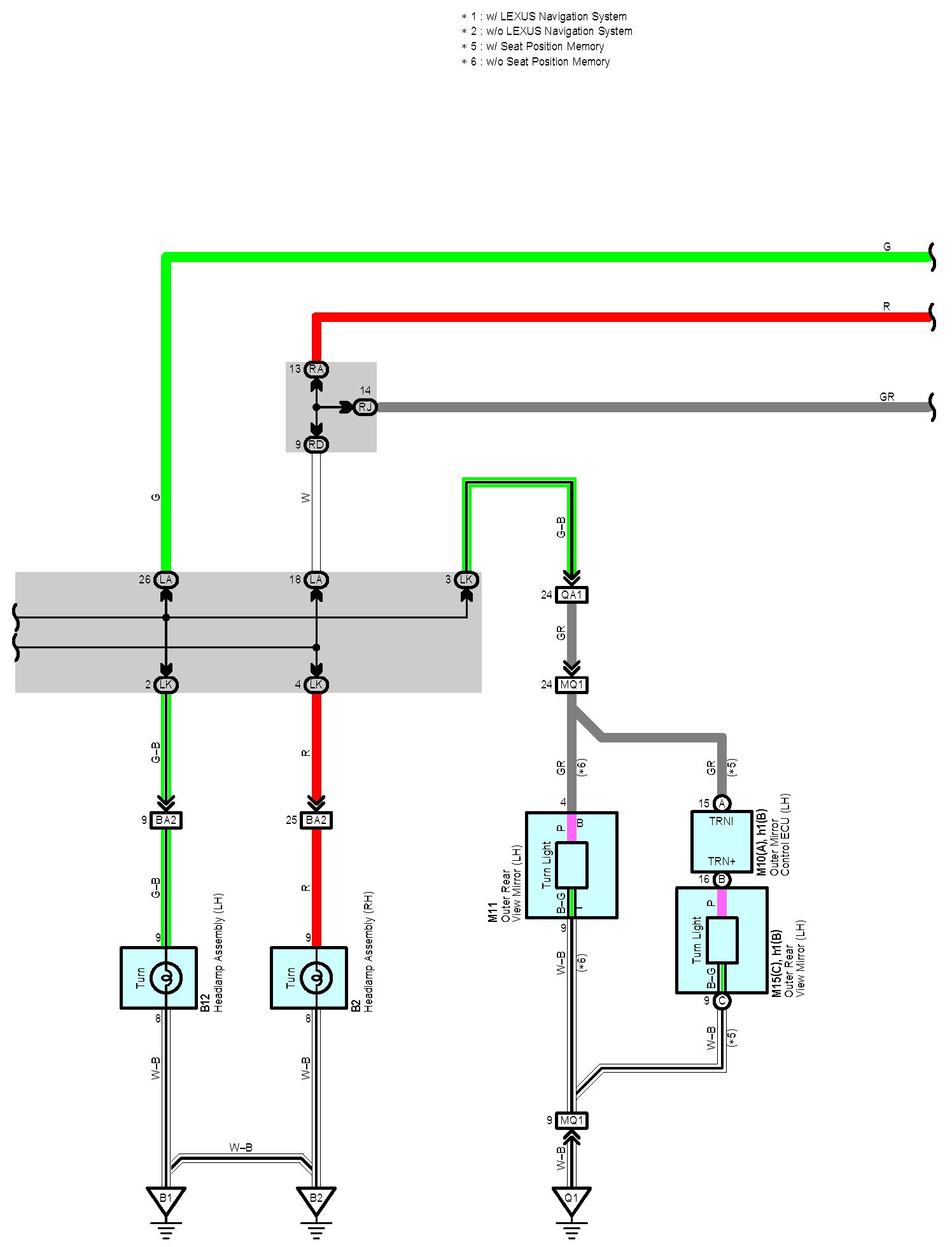

Turn Signal and Hazard Warning Light Part 1:

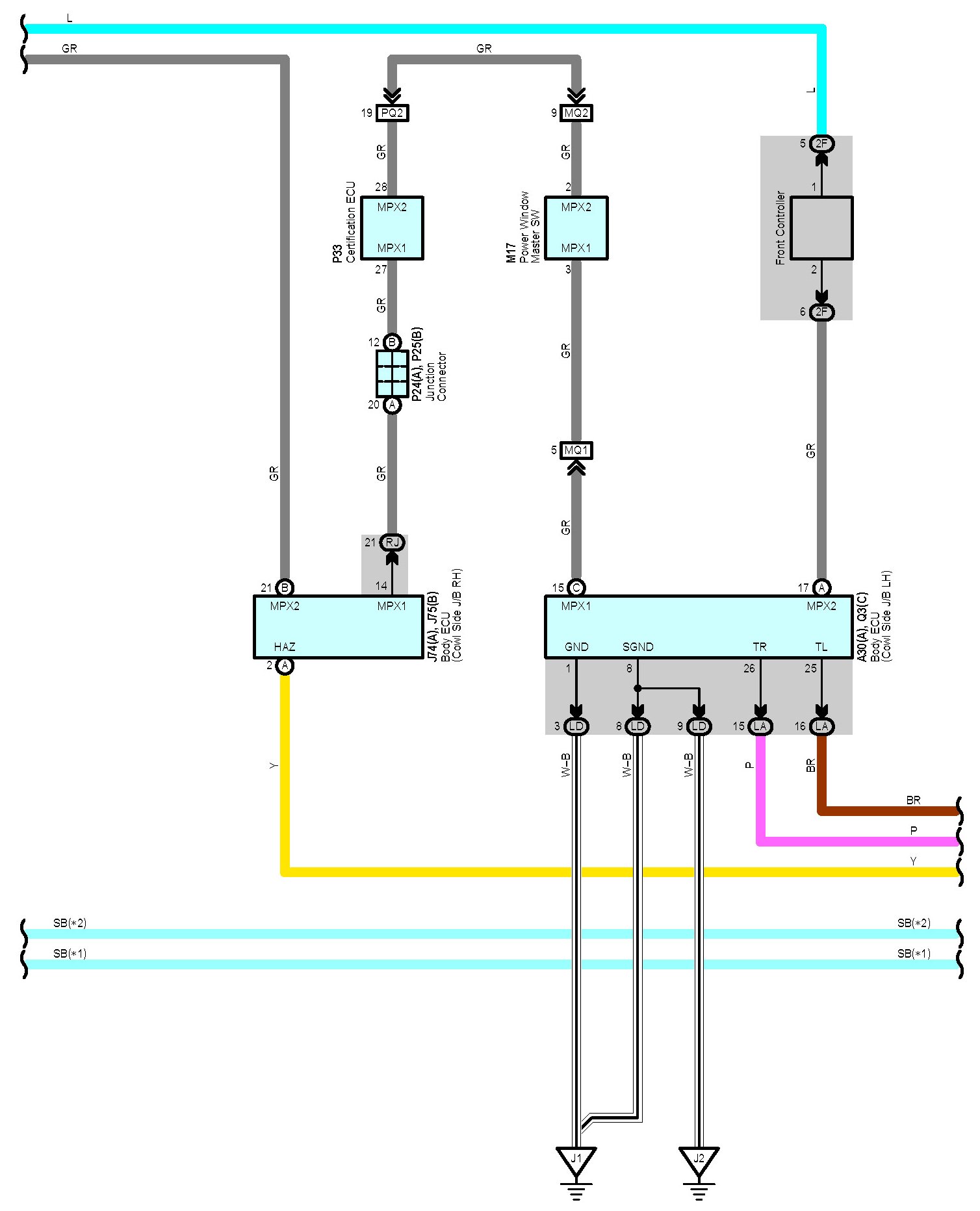

Turn Signal and Hazard Warning Light Part 2:

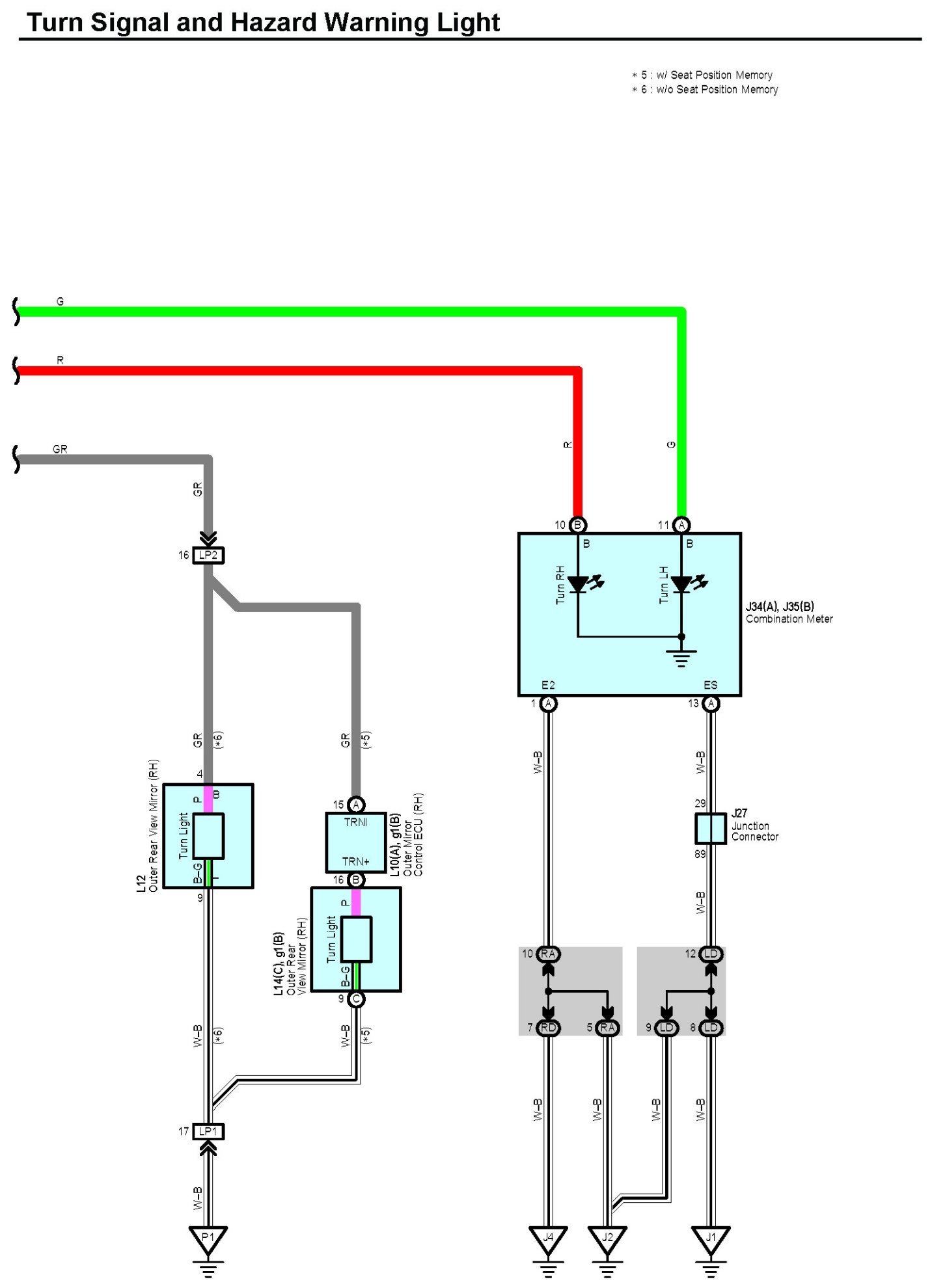

Turn Signal and Hazard Warning Light Part 3:

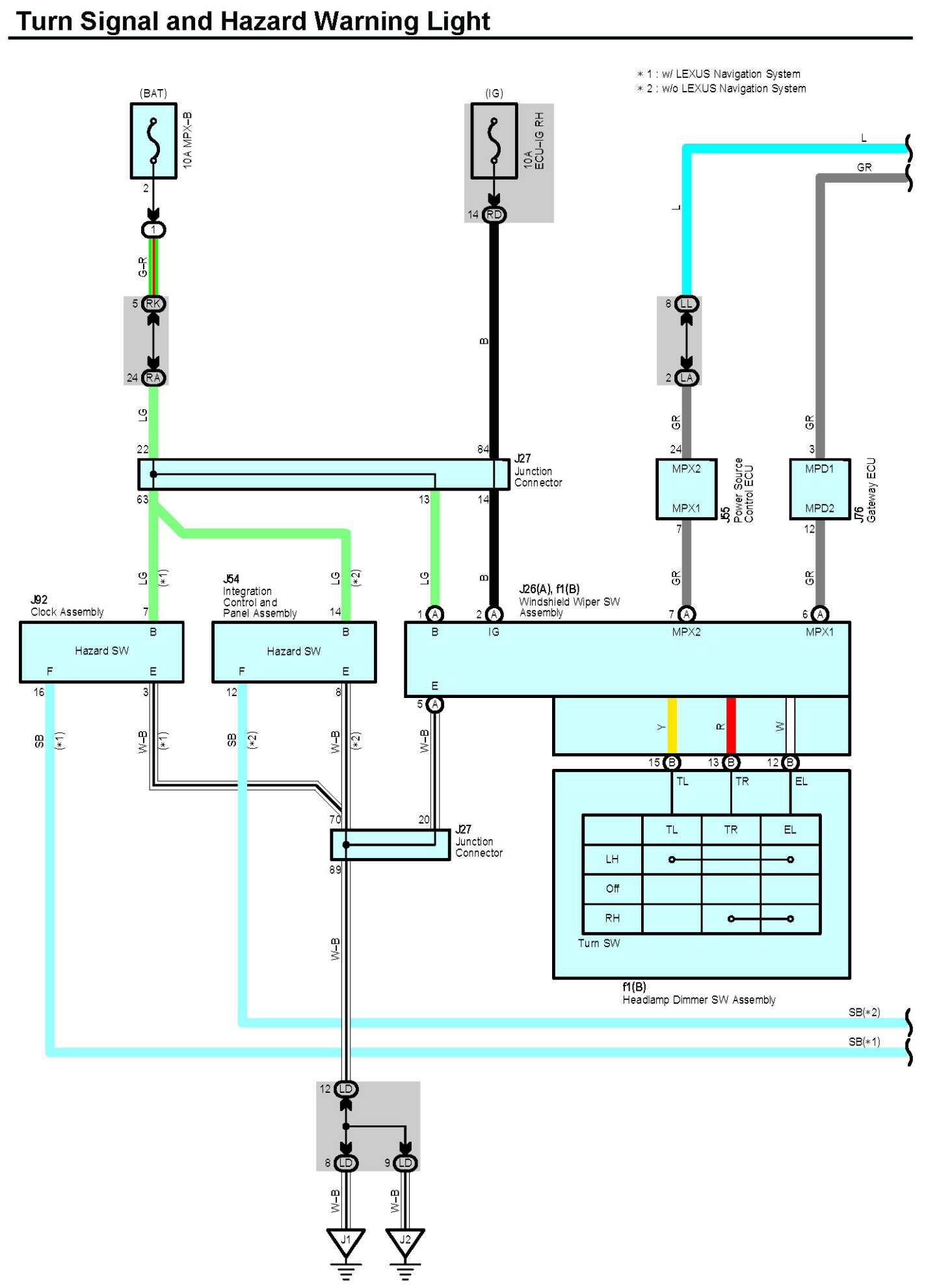

Turn Signal and Hazard Warning Light Part 4:

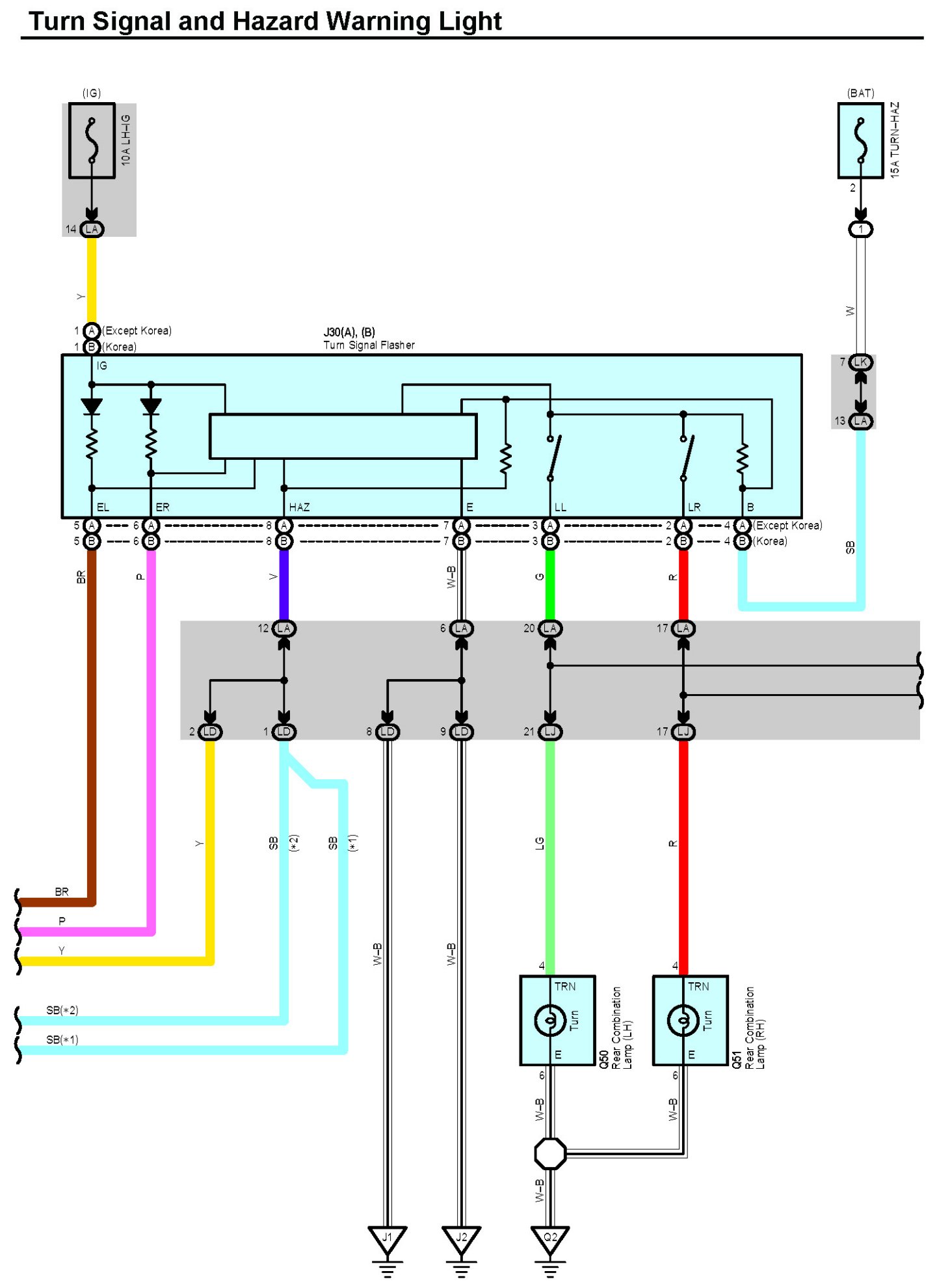

Turn Signal and Hazard Warning Light Part 5:

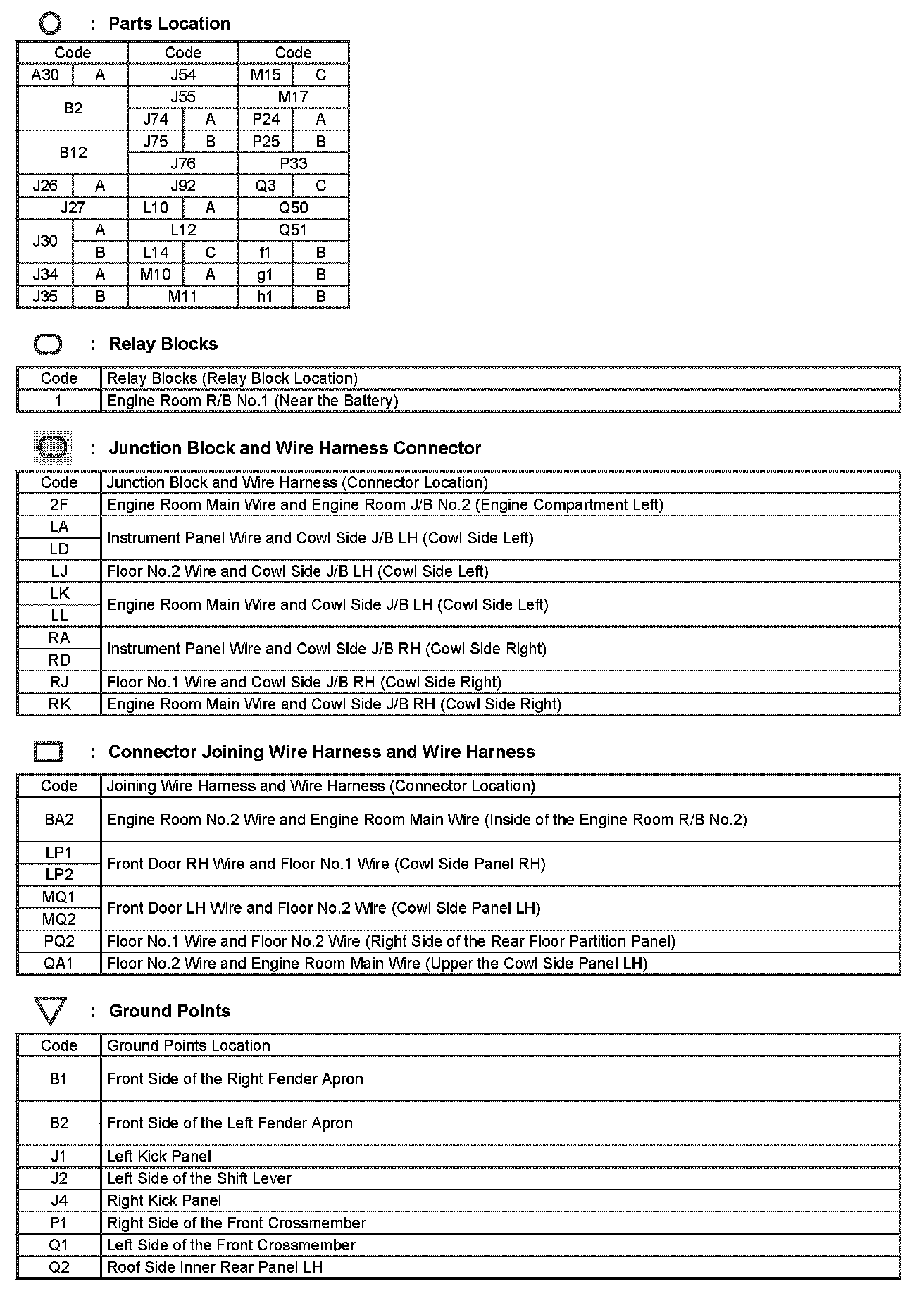

Locations: The locations of components, connectors, ground points, and splices referred to within these diagrams can be found at Vehicle Locations. Locations

Connector Views: Diagrams of the connectors referred to within these diagrams can be found at Connector Views by Connector Number. Connector Views By Connector Number
