Instrument Cluster / Carrier

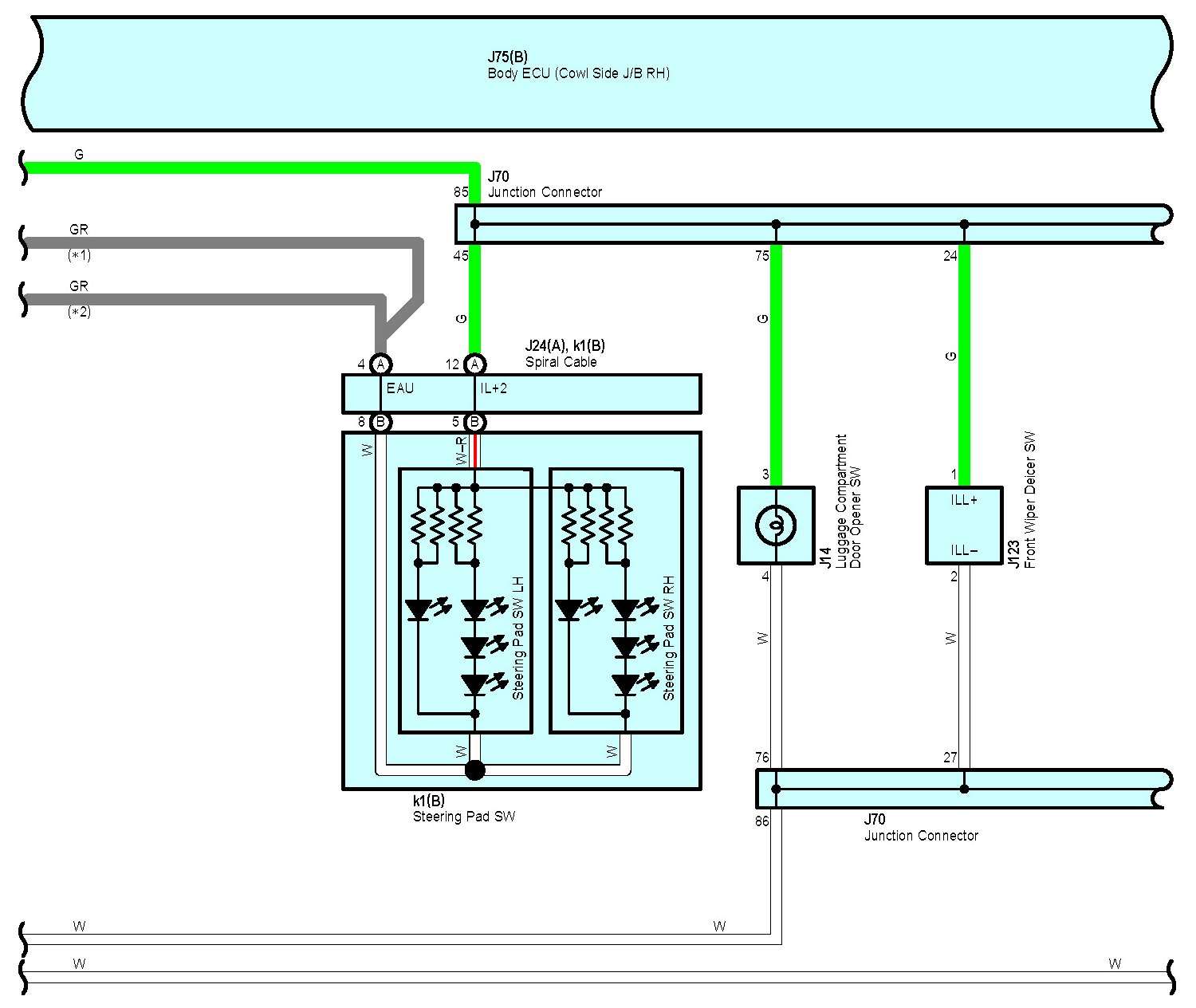

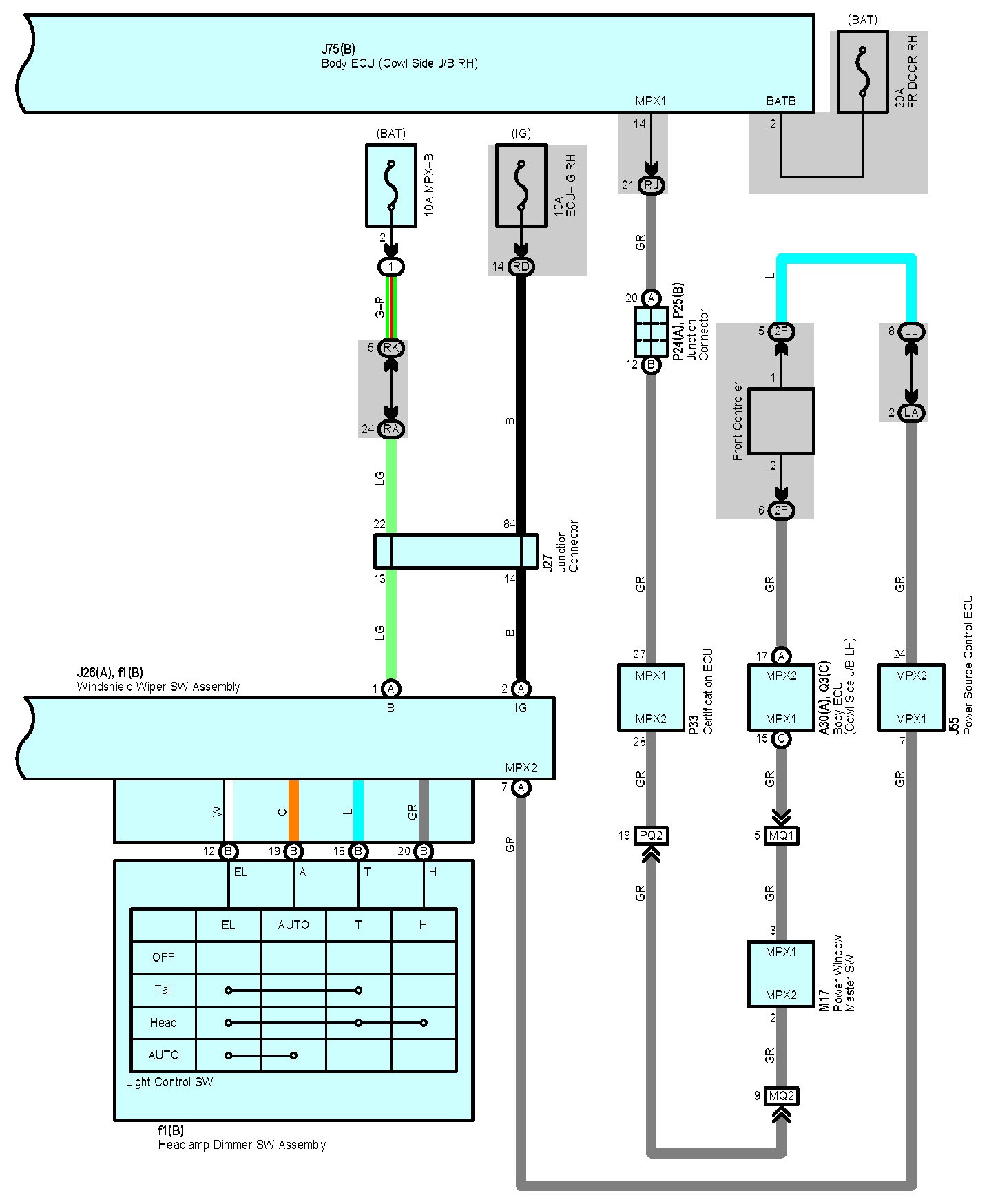

Illumination Part 1:

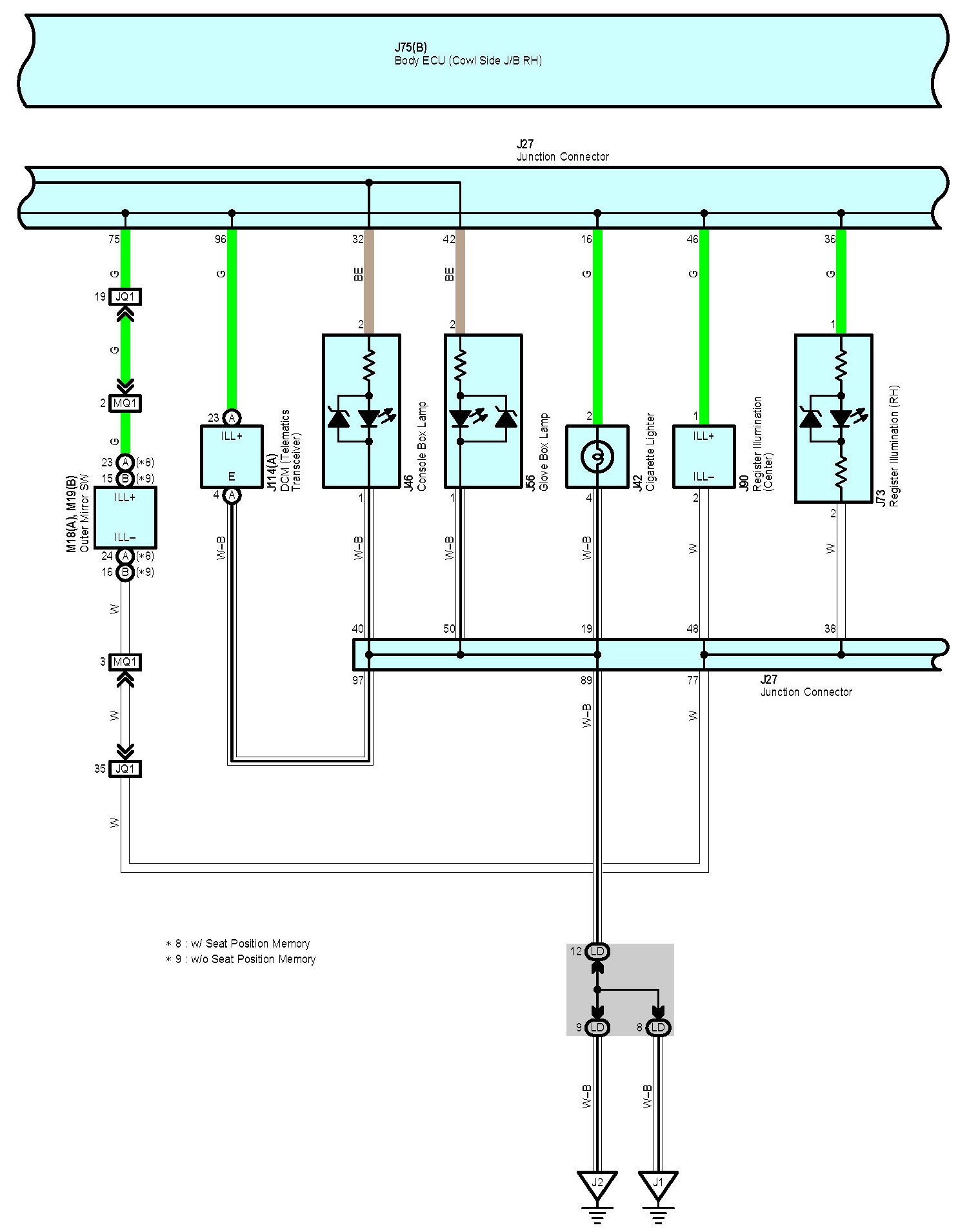

Illumination Part 2:

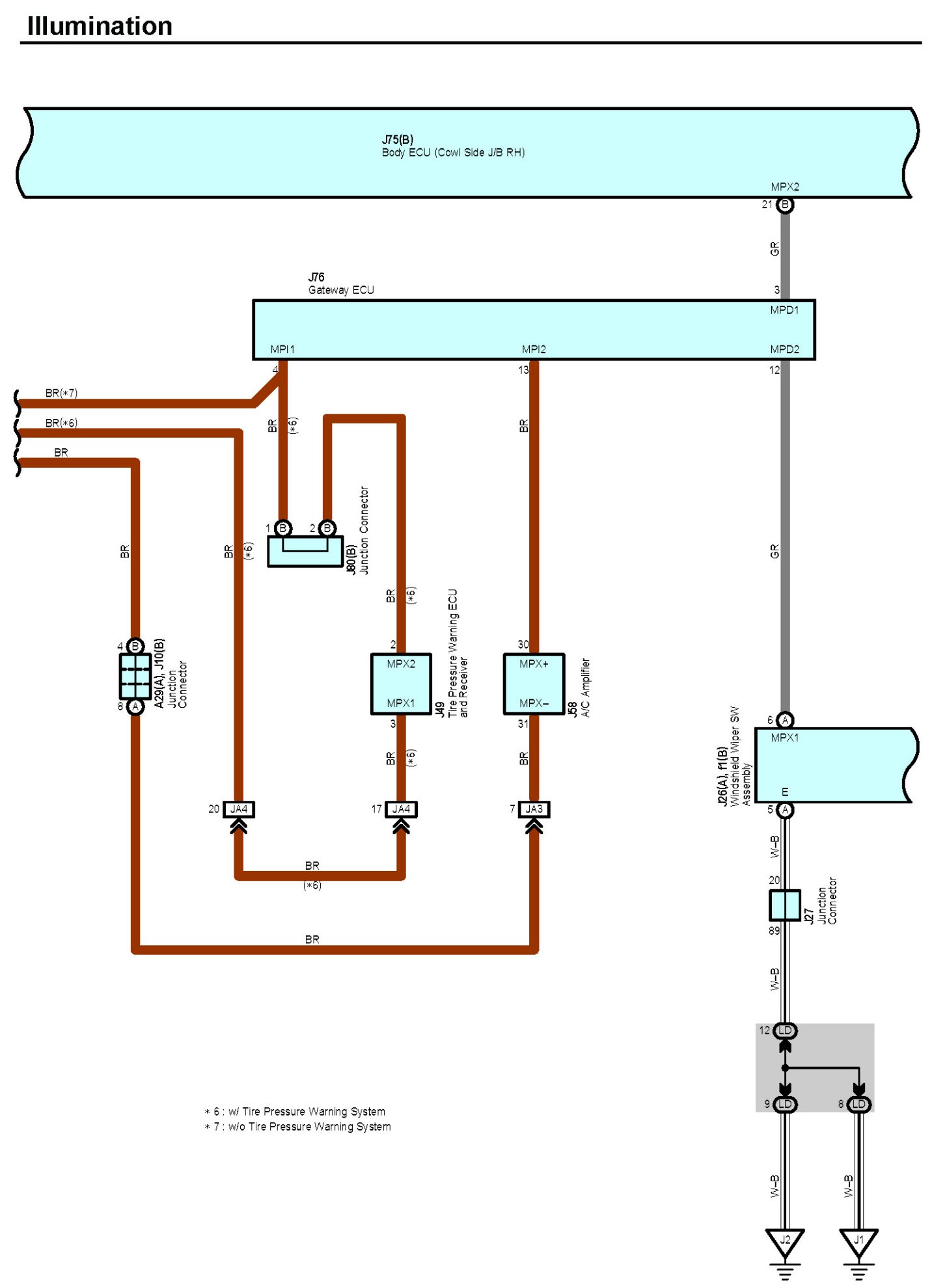

Illumination Part 3:

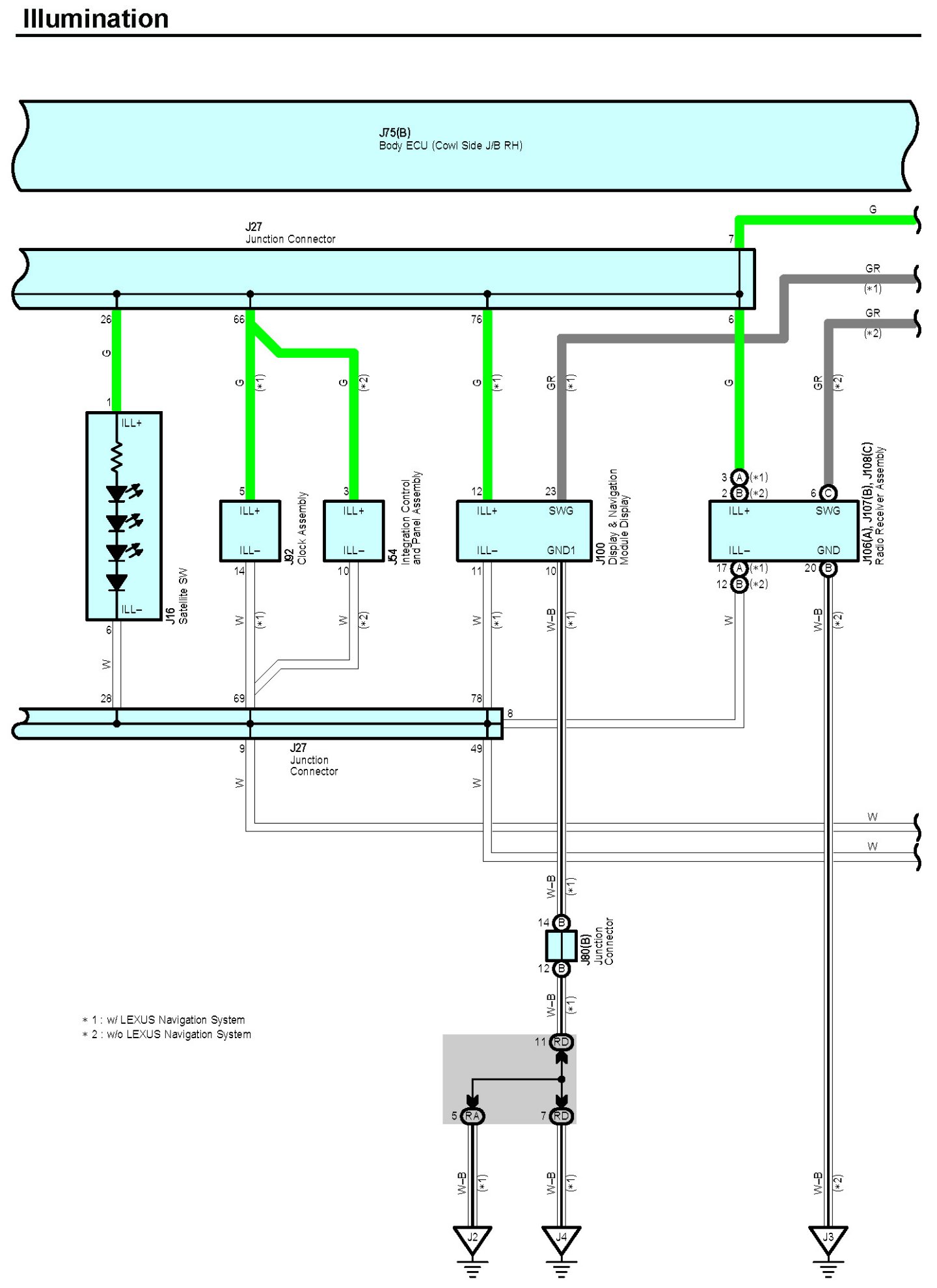

Illumination Part 4:

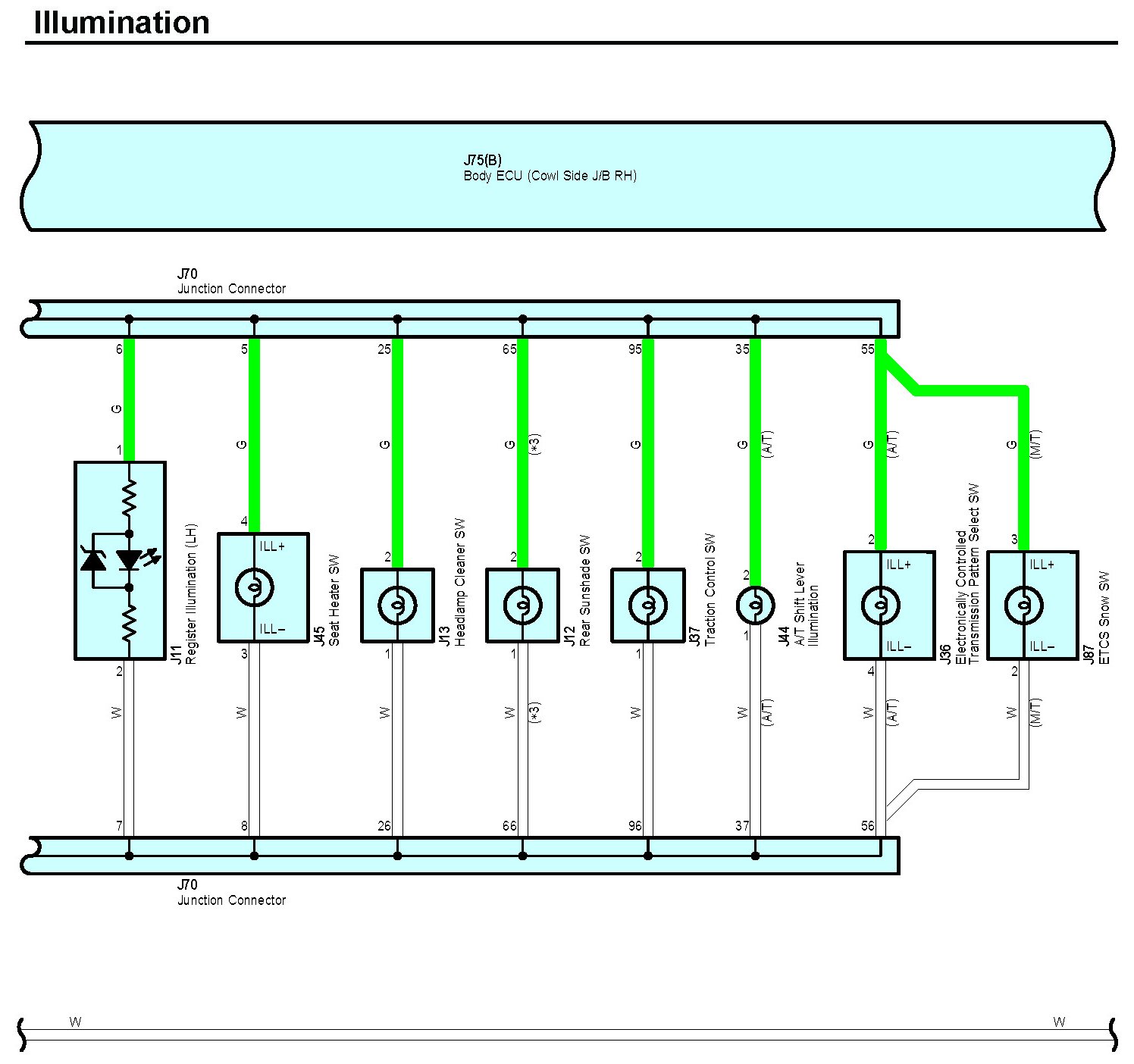

Illumination Part 5:

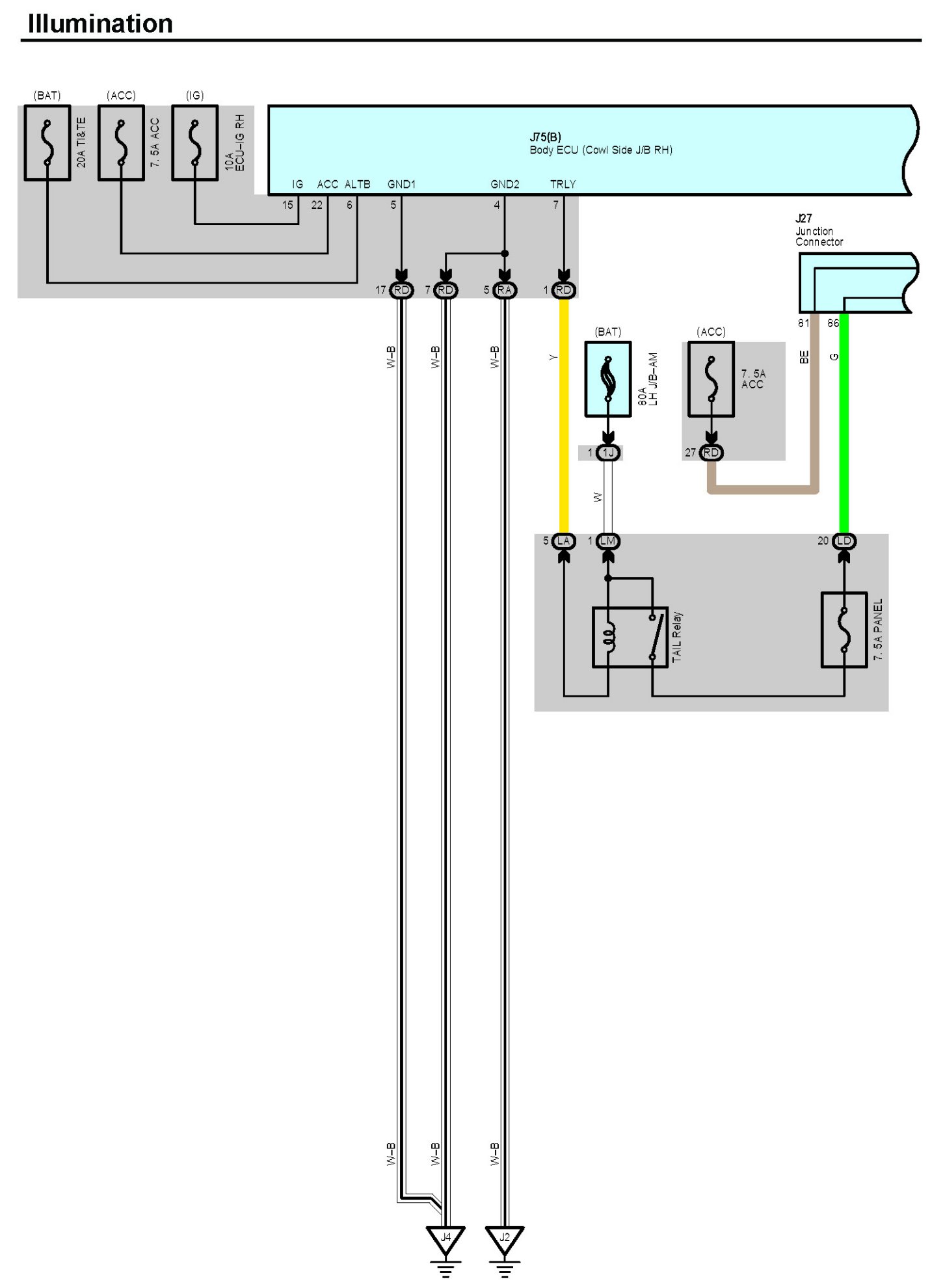

Illumination Part 6:

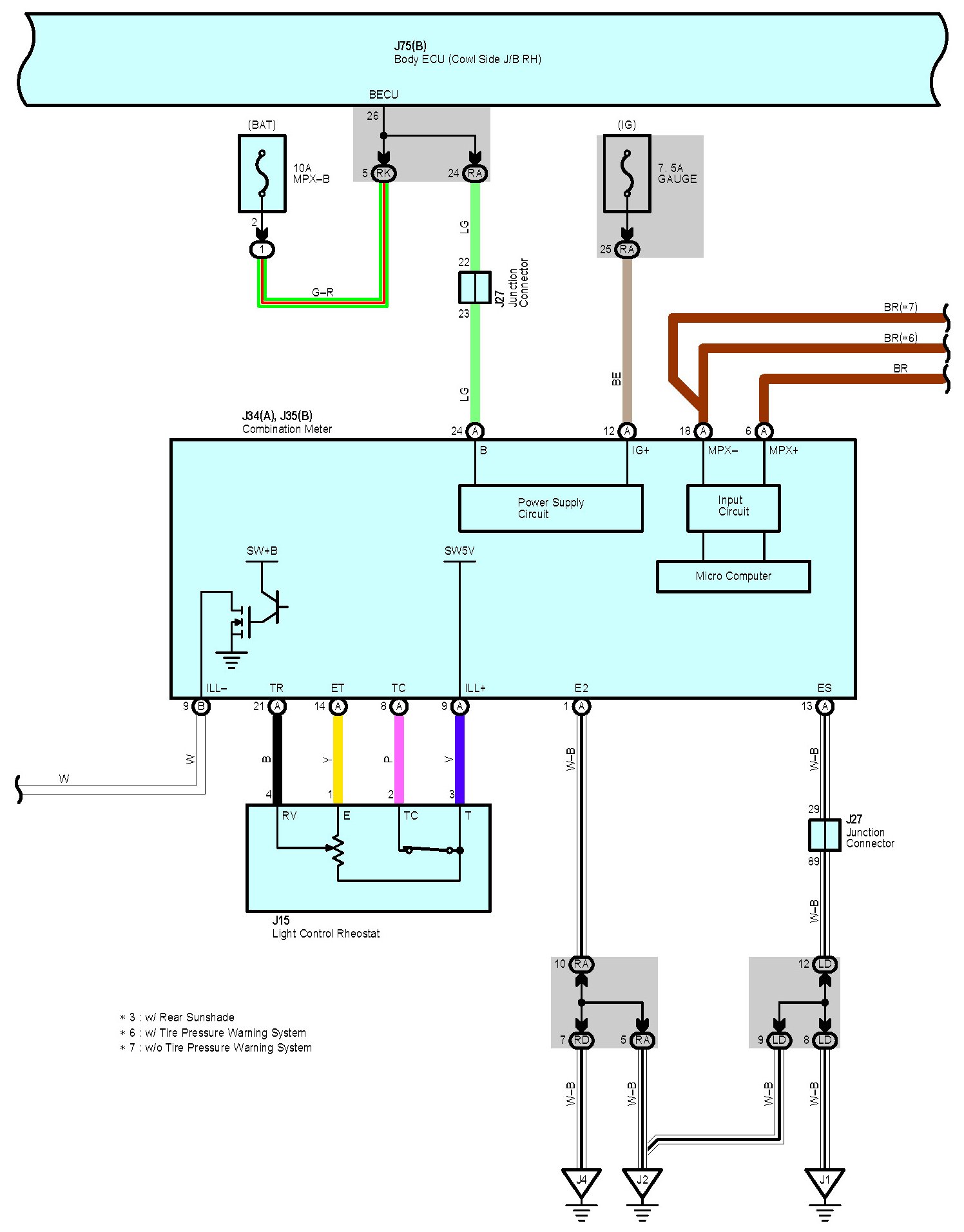

Illumination Part 7:

Illumination Part 8:

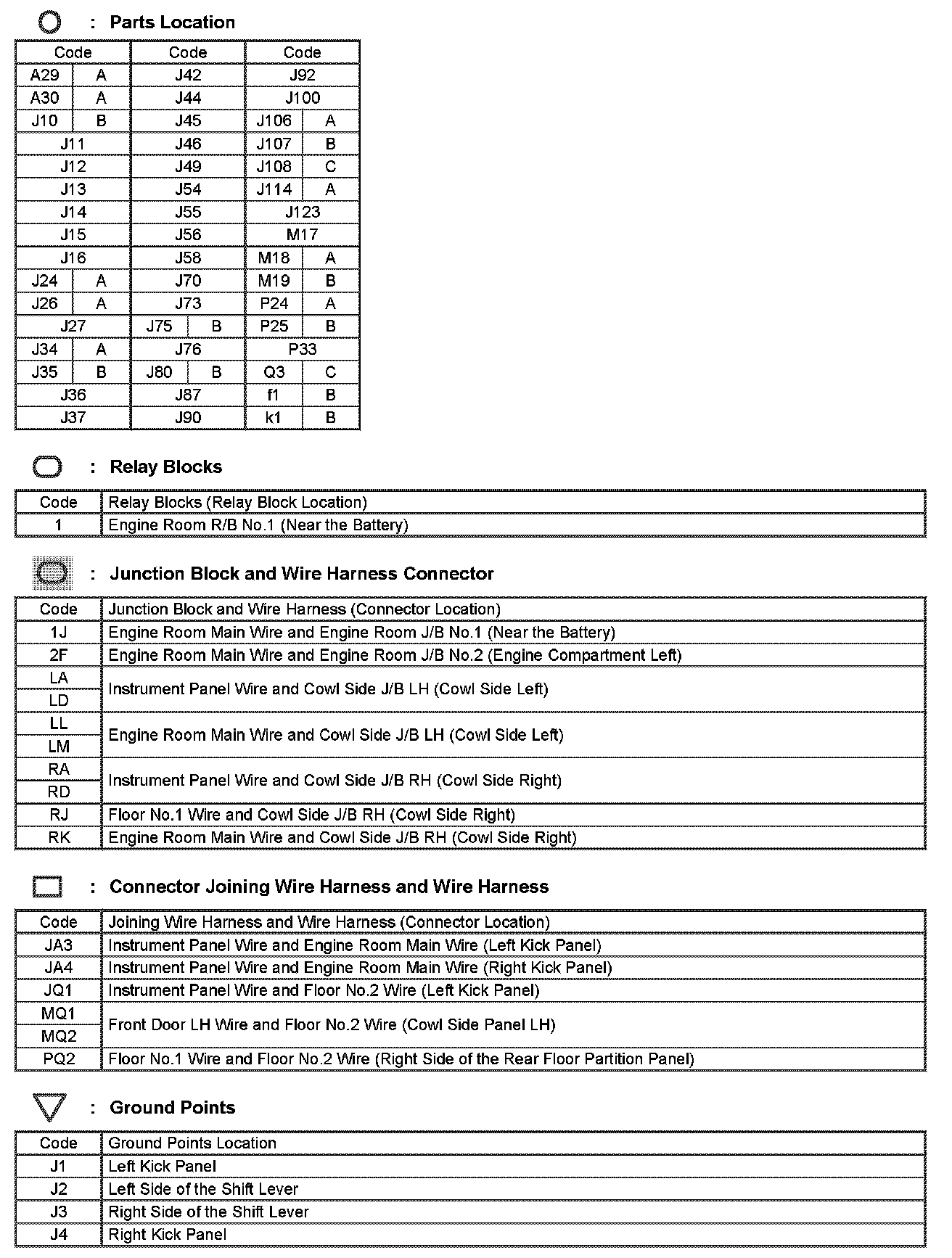

Locations: The locations of components, connectors, ground points, and splices referred to within these diagrams can be found at Vehicle Locations. Locations

Connector Views: Diagrams of the connectors referred to within these diagrams can be found at Connector Views by Connector Number. Connector Views By Connector Number
