Power Seat (Front Passenger's Seat)

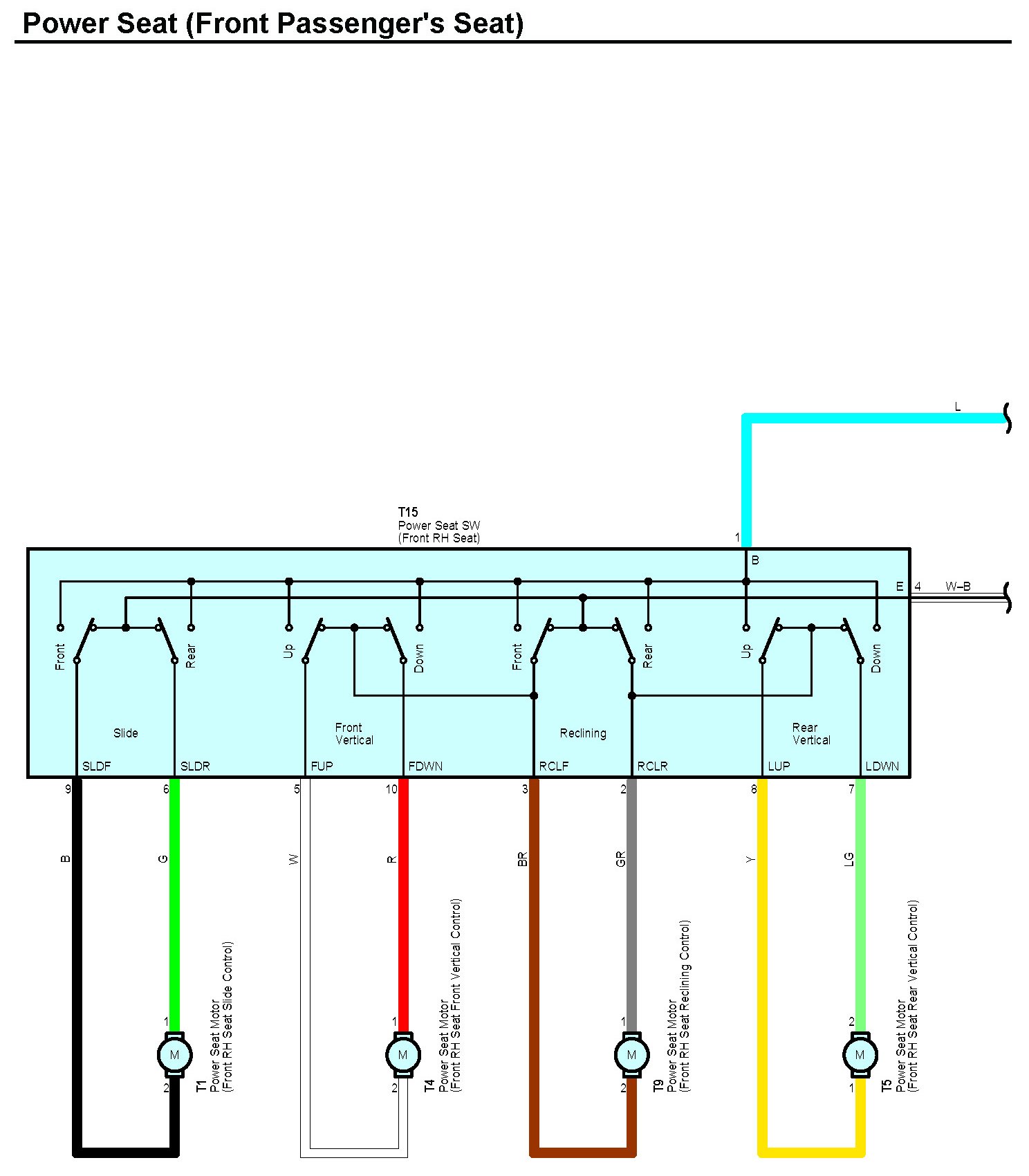

Power Seat (Front Passenger's Seat) Part 1:

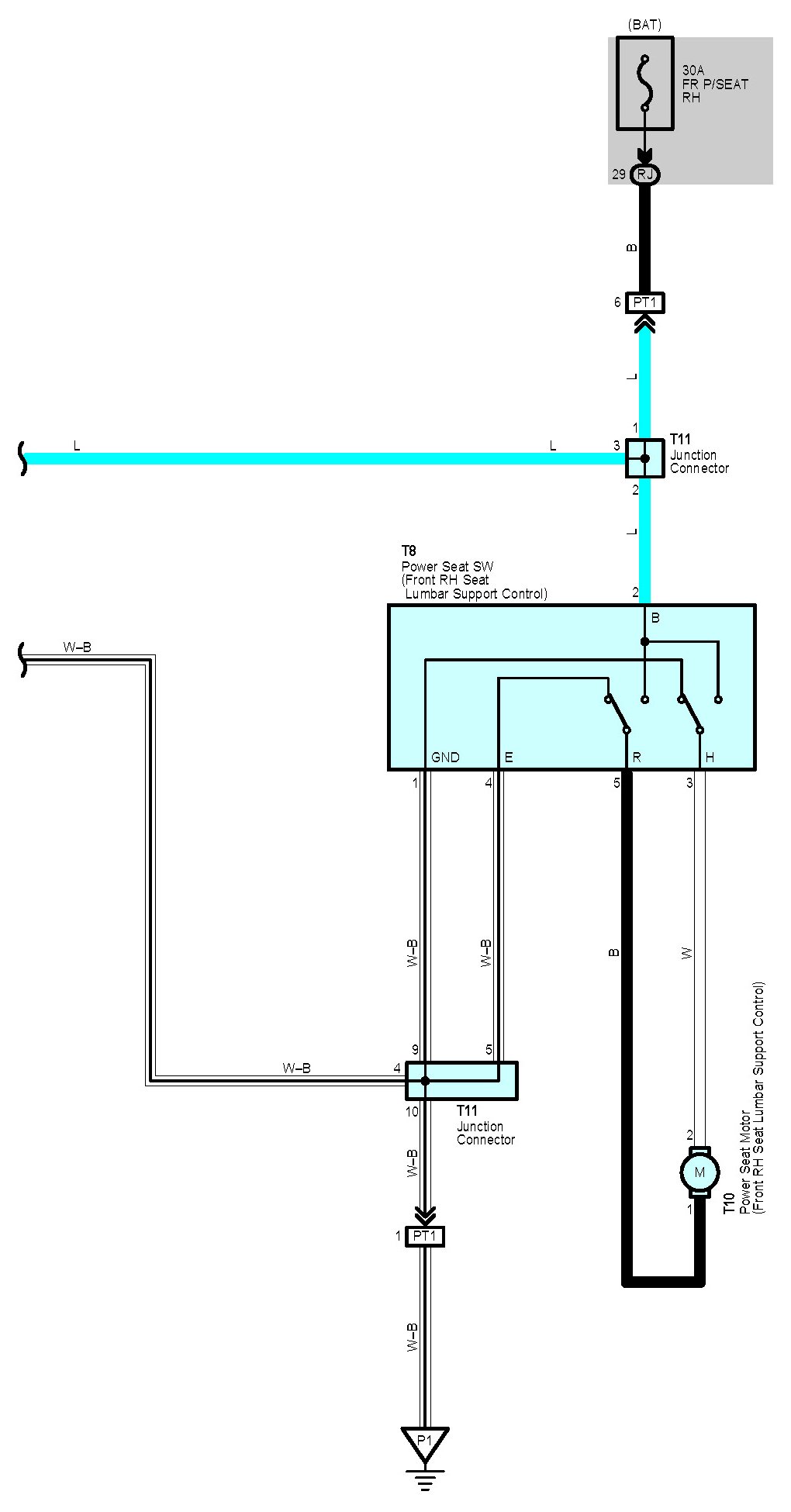

Power Seat (Front Passenger's Seat) Part 2:

Locations: The locations of components, connectors, ground points, and splices referred to within these diagrams can be found at Vehicle Locations. Locations

Connector Views: Diagrams of the connectors referred to within these diagrams can be found at Connector Views by Connector Number. Connector Views By Connector Number
