Climate Control Seat and Seat Heater (W/ Climate Control Seat)

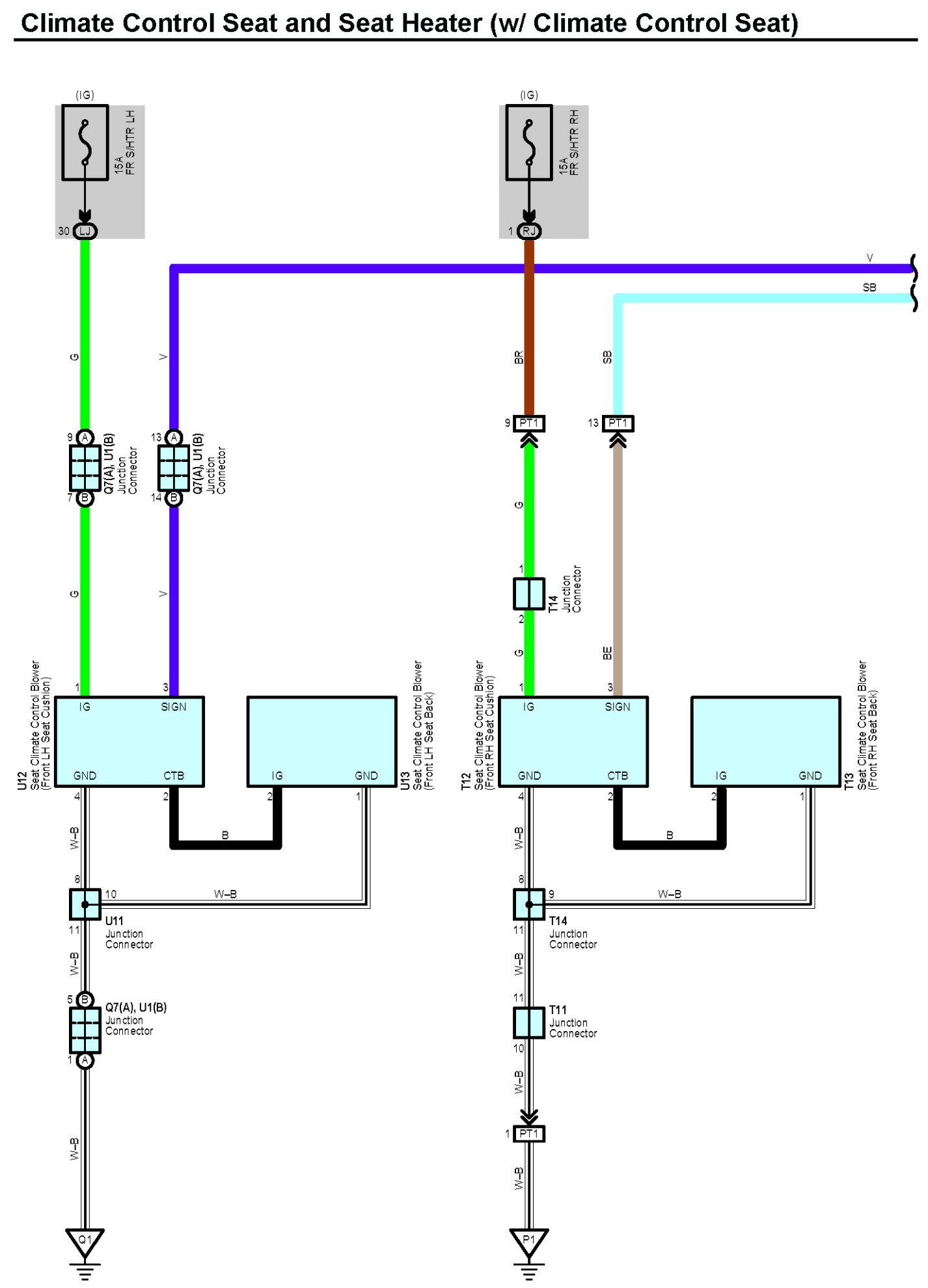

Climate Control Seat and Seat Heater (w/ Climate Control Seat) Part 1:

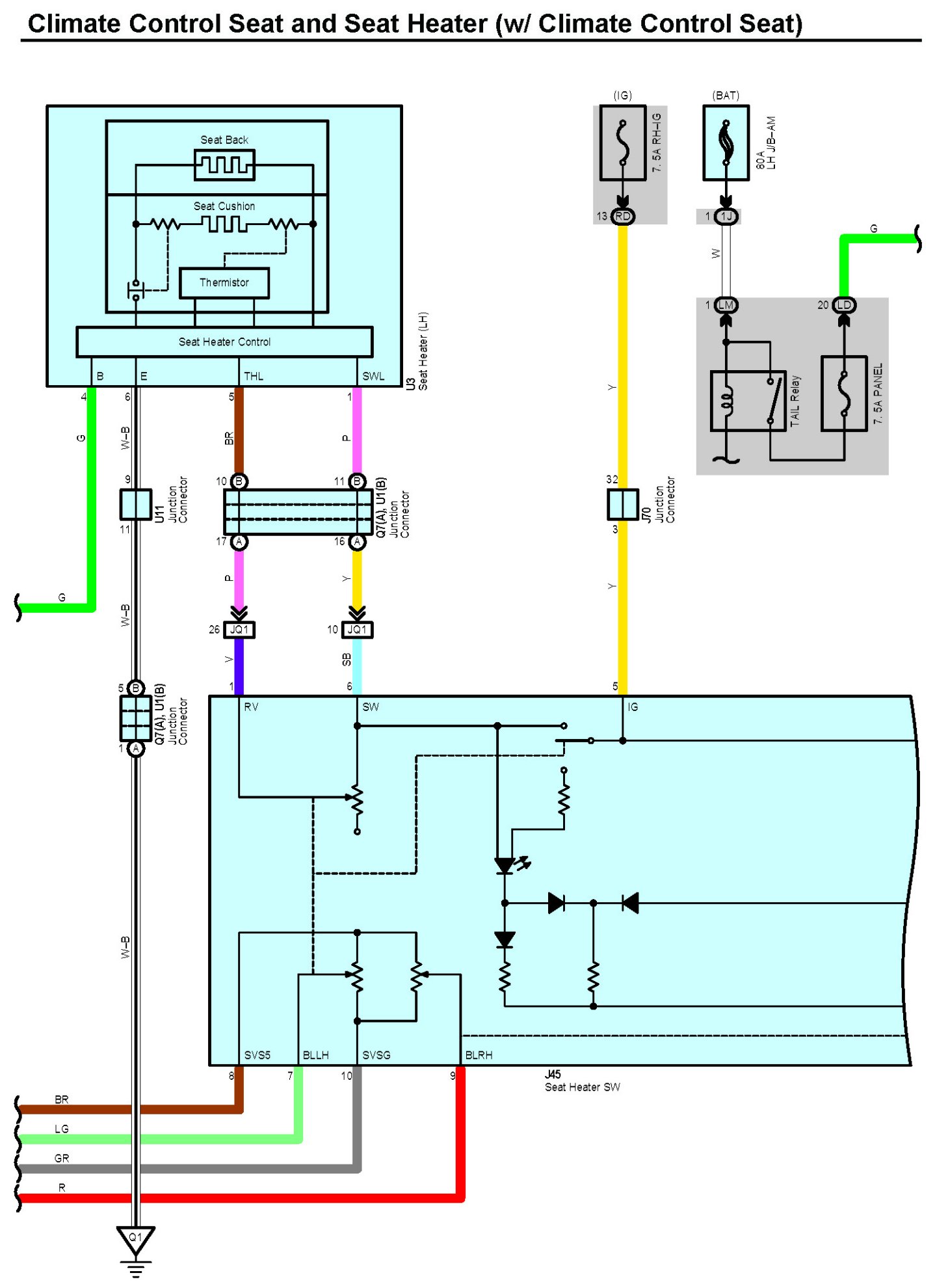

Climate Control Seat and Seat Heater (w/ Climate Control Seat) Part 2:

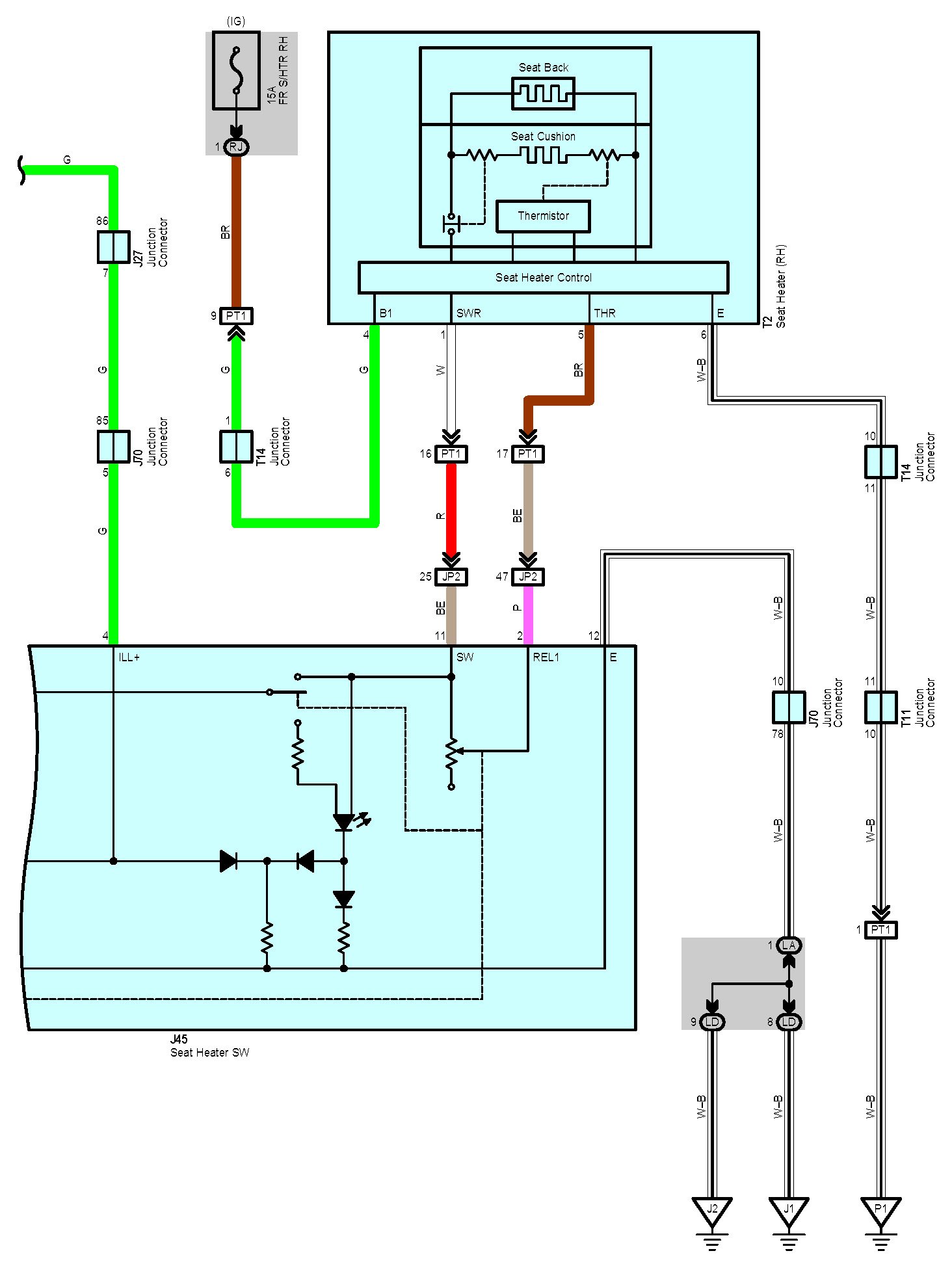

Climate Control Seat and Seat Heater (w/ Climate Control Seat) Part 3:

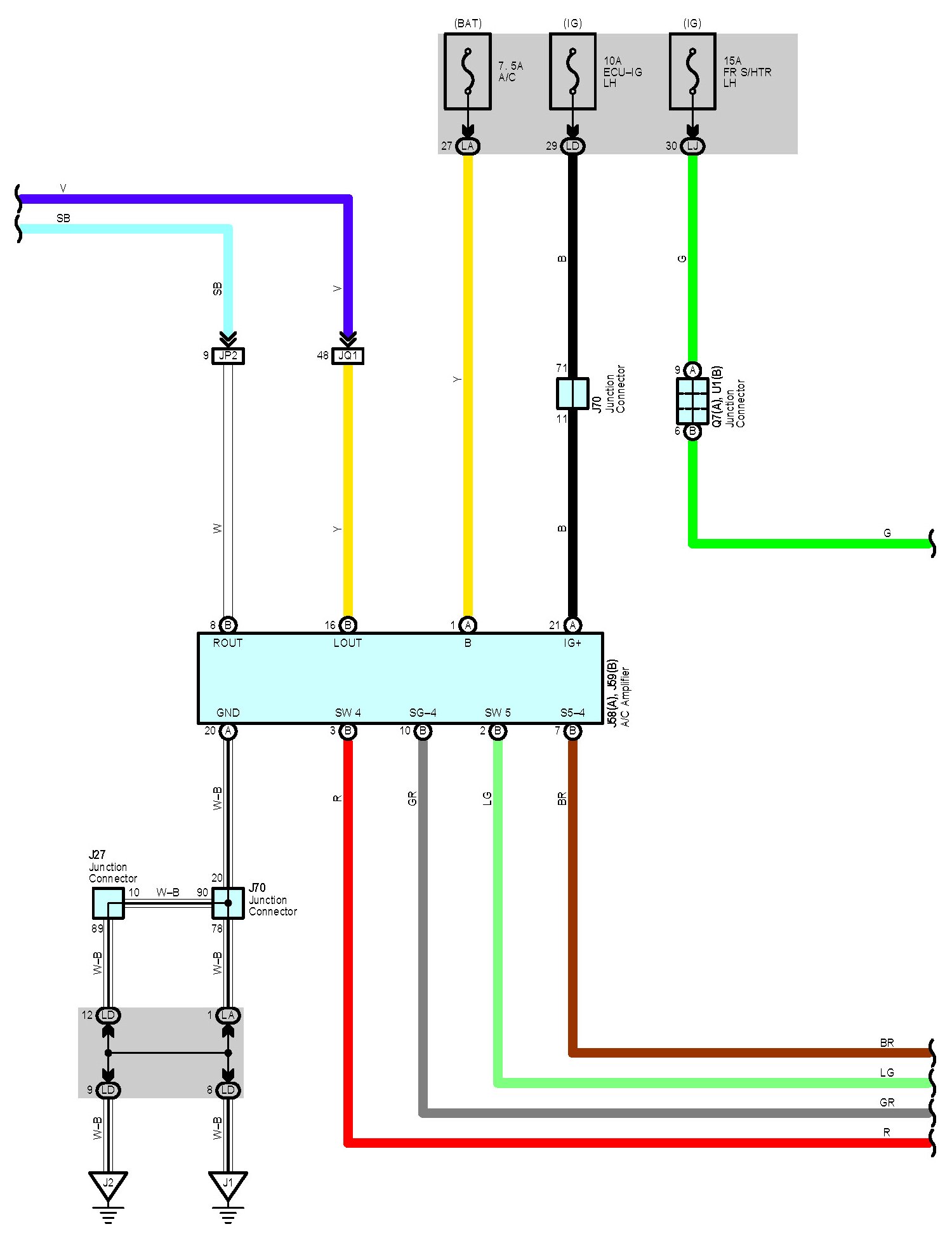

Climate Control Seat and Seat Heater (w/ Climate Control Seat) Part 4:

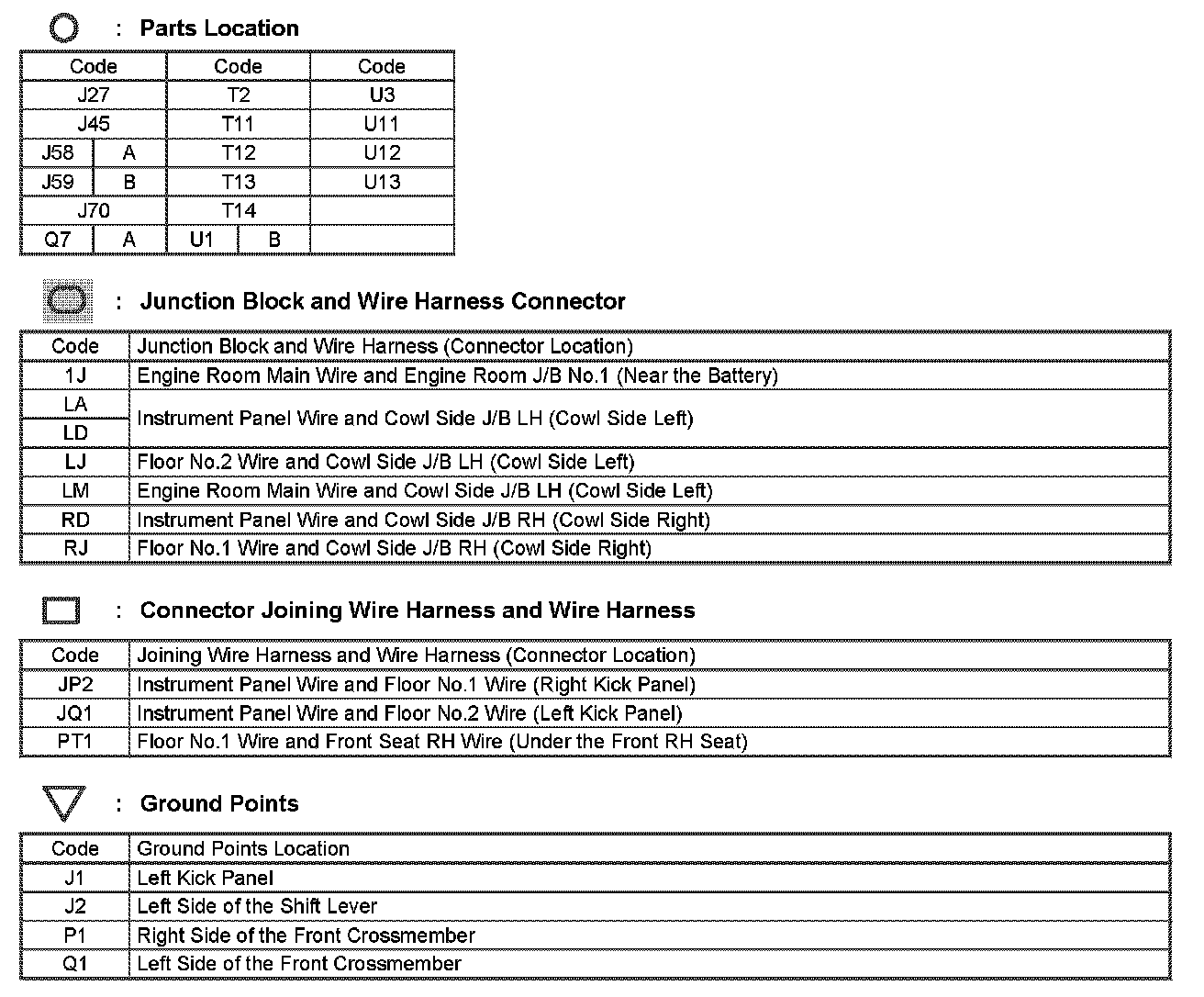

Locations: The locations of components, connectors, ground points, and splices referred to within these diagrams can be found at Vehicle Locations. Locations

Connector Views: Diagrams of the connectors referred to within these diagrams can be found at Connector Views by Connector Number. Connector Views By Connector Number
