Removal

METER: STEERING PAD SWITCH: REMOVAL

1. DISCONNECT CABLE FROM NEGATIVE BATTERY TERMINAL

CAUTION:
Wait at least 90 seconds after disconnecting the cable from the negative (-) battery terminal to disable the SRS system.

2. REMOVE NO. 3 LOWER STEERING WHEEL COVER Removal

3. REMOVE NO. 2 LOWER STEERING WHEEL COVER Removal

4. REMOVE STEERING PAD Removal

5. REMOVE STEERING PAD SWITCH ASSEMBLY

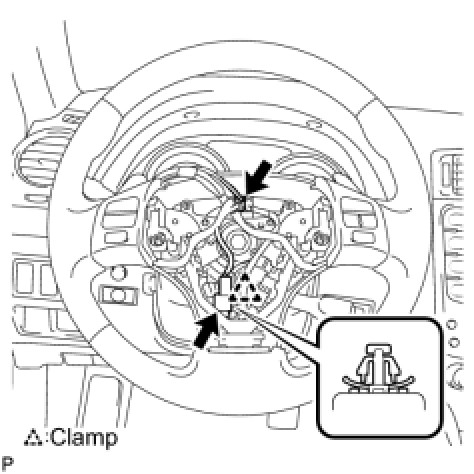

(a) Disconnect the 2 connectors and disengage the clamp.

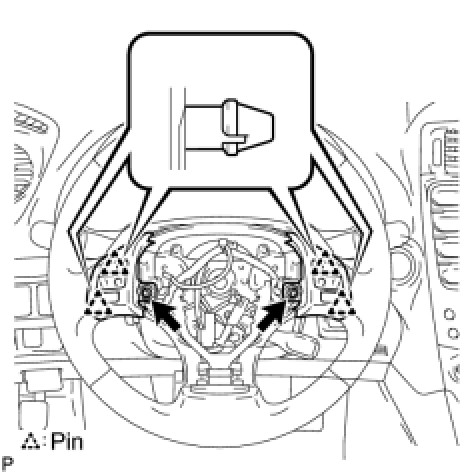

(b) Remove the 2 screws.





(c) Disengage the 4 pins and remove the steering pad switch assembly.
