Removal

CELLULAR COMMUNICATION: TELEPHONE AND GPS ANTENNA CORDS: REMOVAL

1. REMOVE ROOF HEADLINING ASSEMBLY

HINT
Refer to the procedure up to Remove Roof Headlining Assembly Removal.

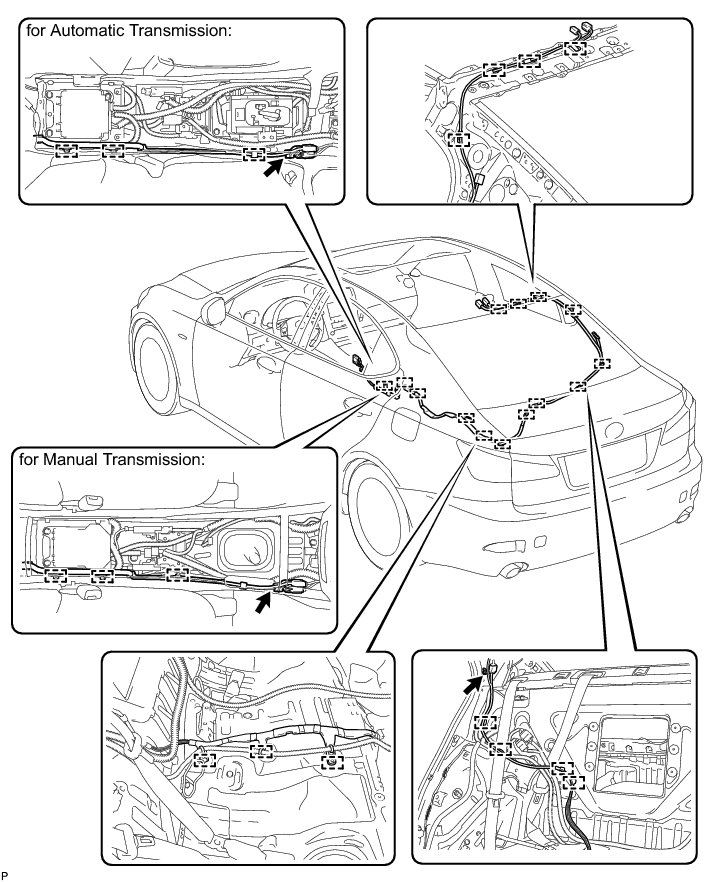

2. REMOVE ANTENNA CORD SUB-ASSEMBLY

(a) Disconnect each connector.

(b) Remove the 2 bolts and disengage the 14 clamps.

(c) Remove the antenna cord sub-assembly.
