Safety Connect System

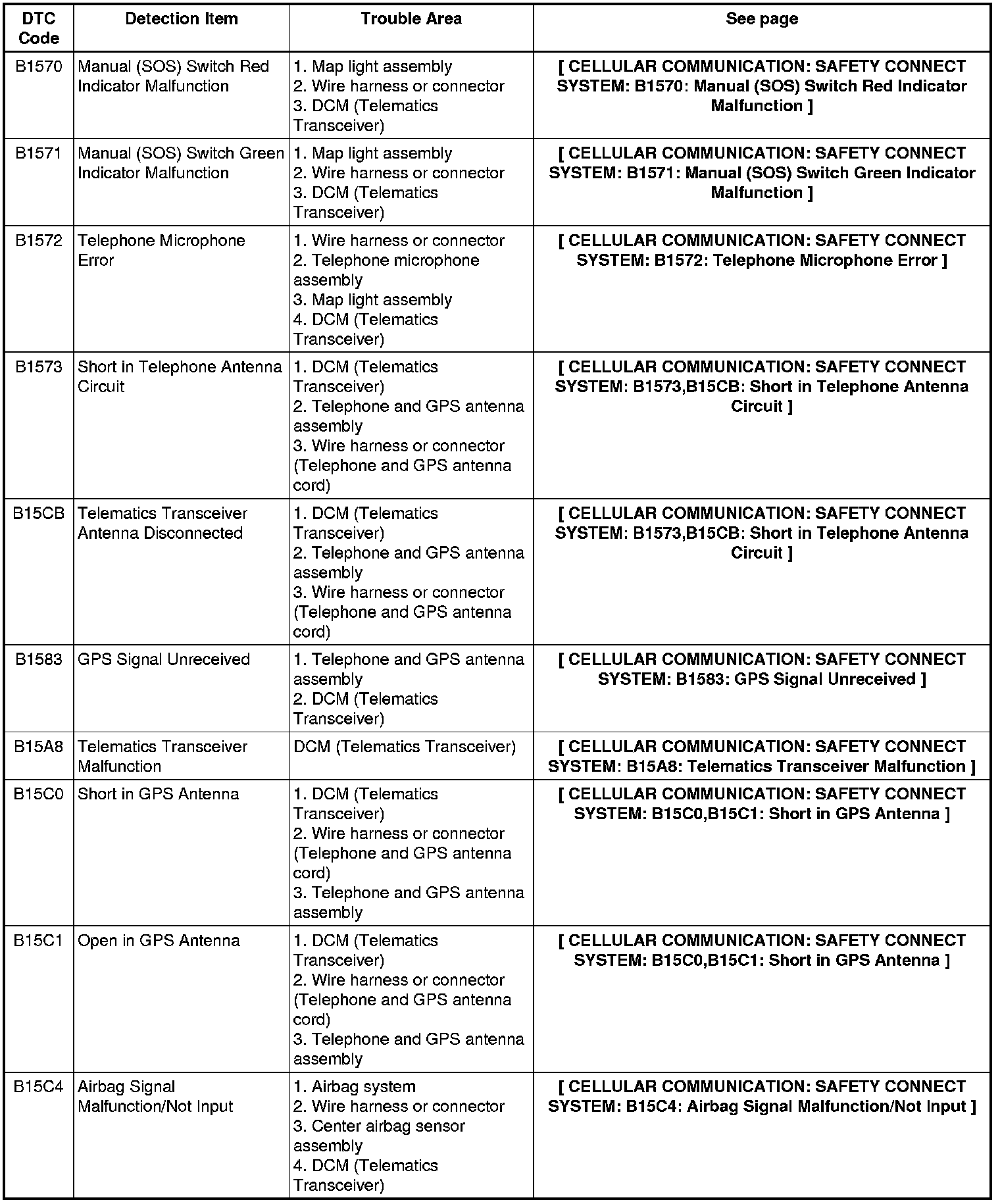

CELLULAR COMMUNICATION: SAFETY CONNECT SYSTEM: DIAGNOSTIC TROUBLE CODE CHART

HINT
If a trouble code is stored during the DTC check, inspect the trouble areas listed for that code. For details of the code, refer to the "See page" below.

DCM (Telematics Transceiver)
