SFI System

4GR-FSE ENGINE CONTROL SYSTEM: SFI SYSTEM: DIAGNOSTIC TROUBLE CODE CHART

HINT
Parameters listed in the chart may not be exactly the same as your readings due to the type of instrument or other factors.

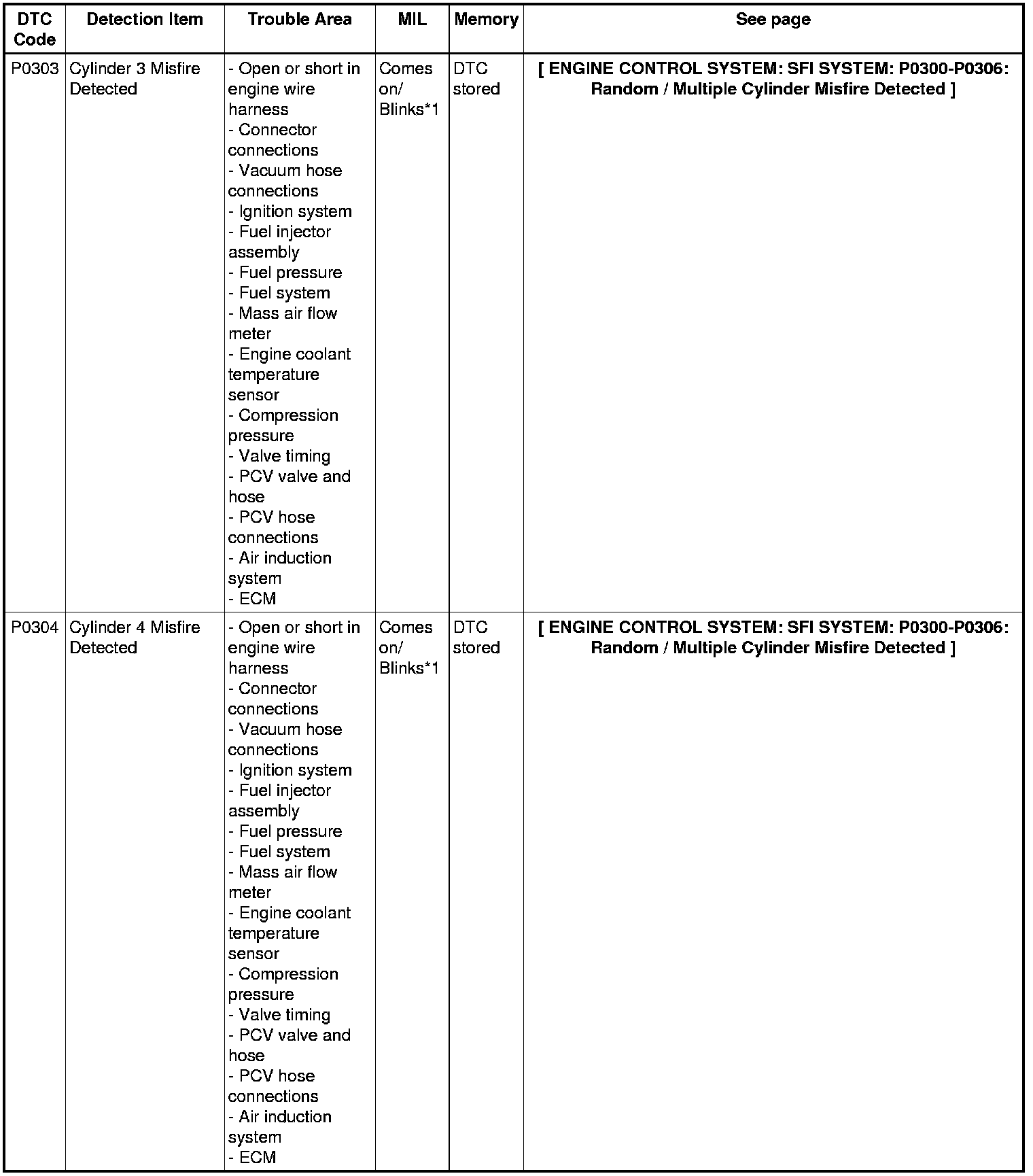

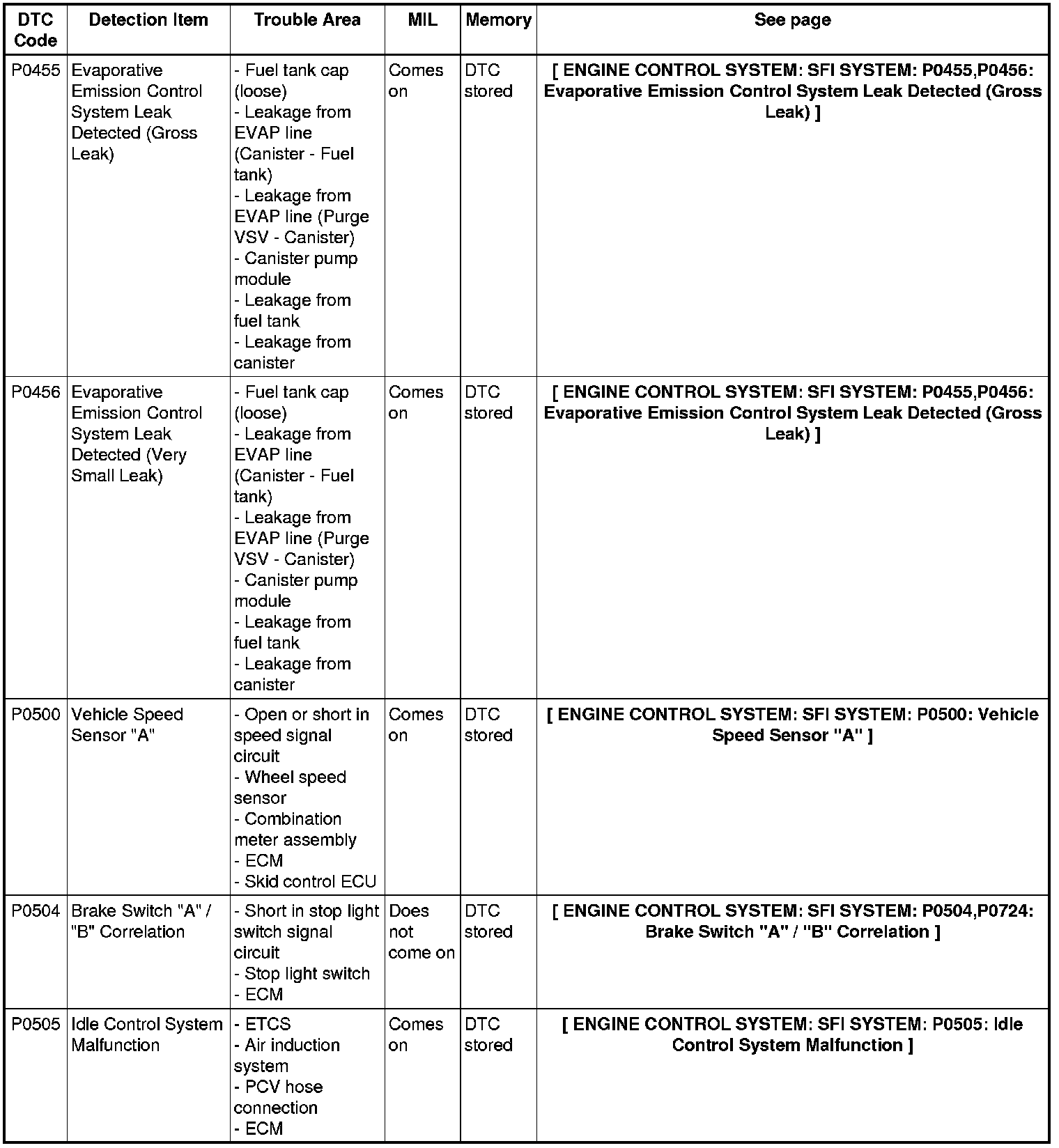

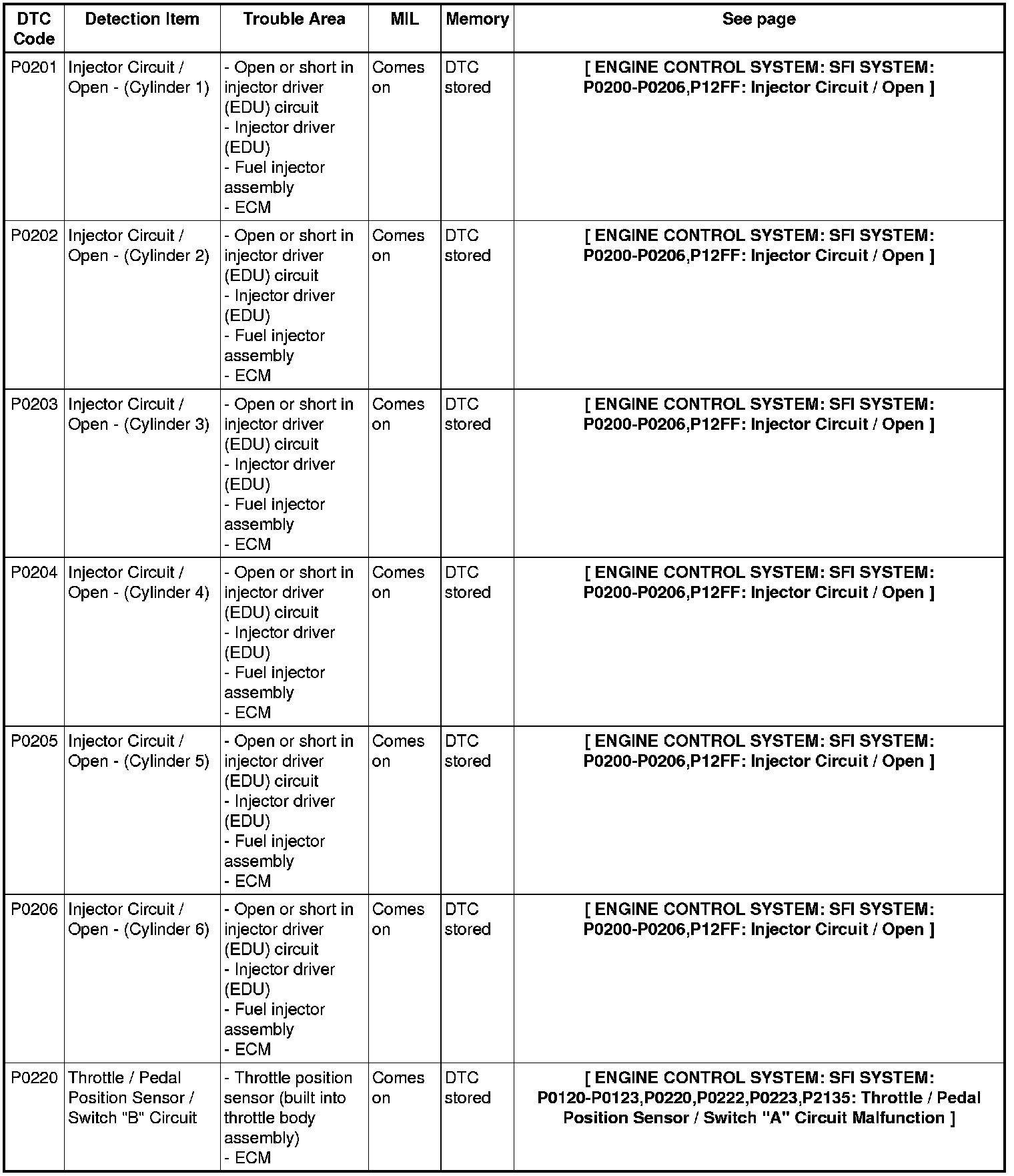

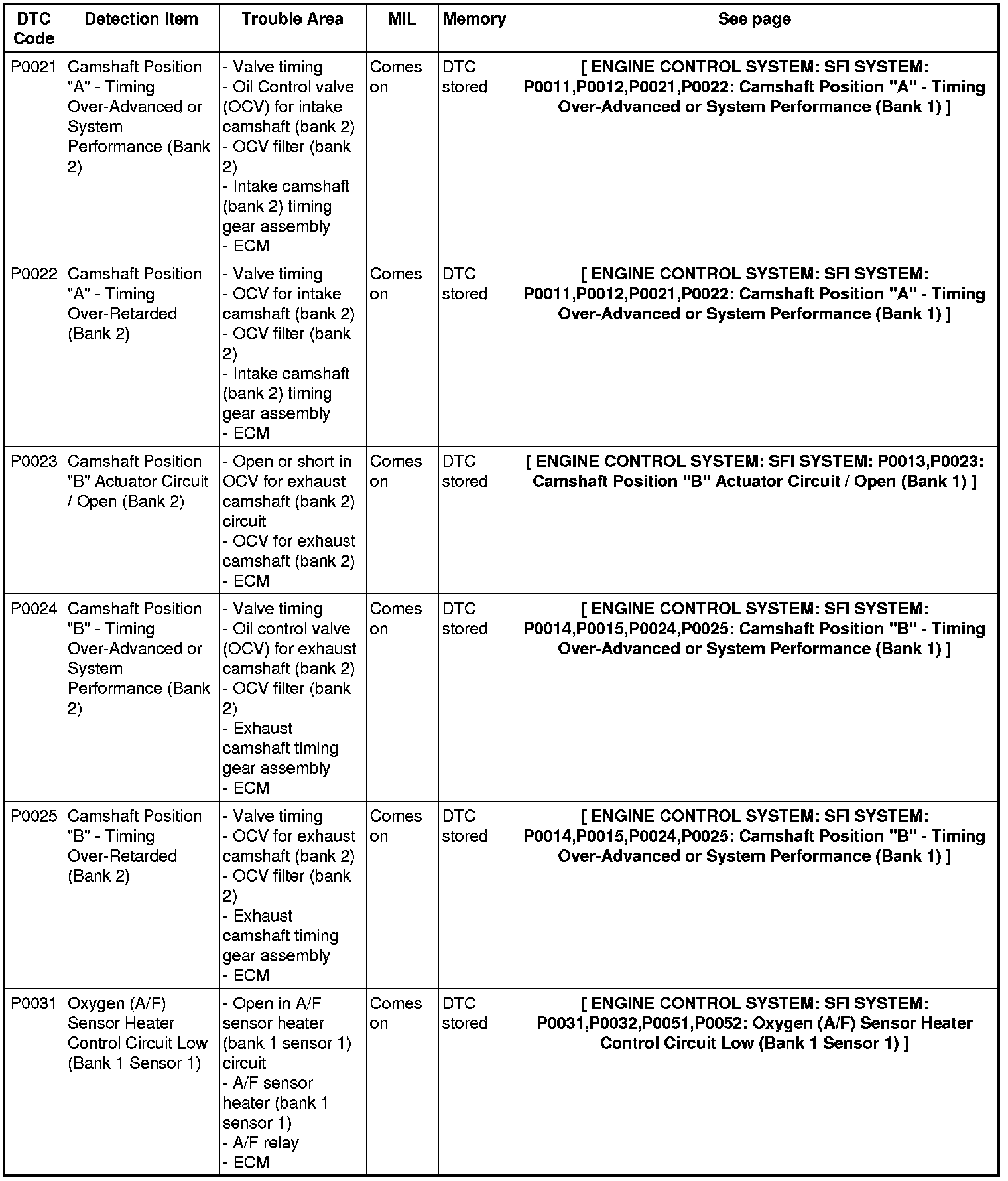

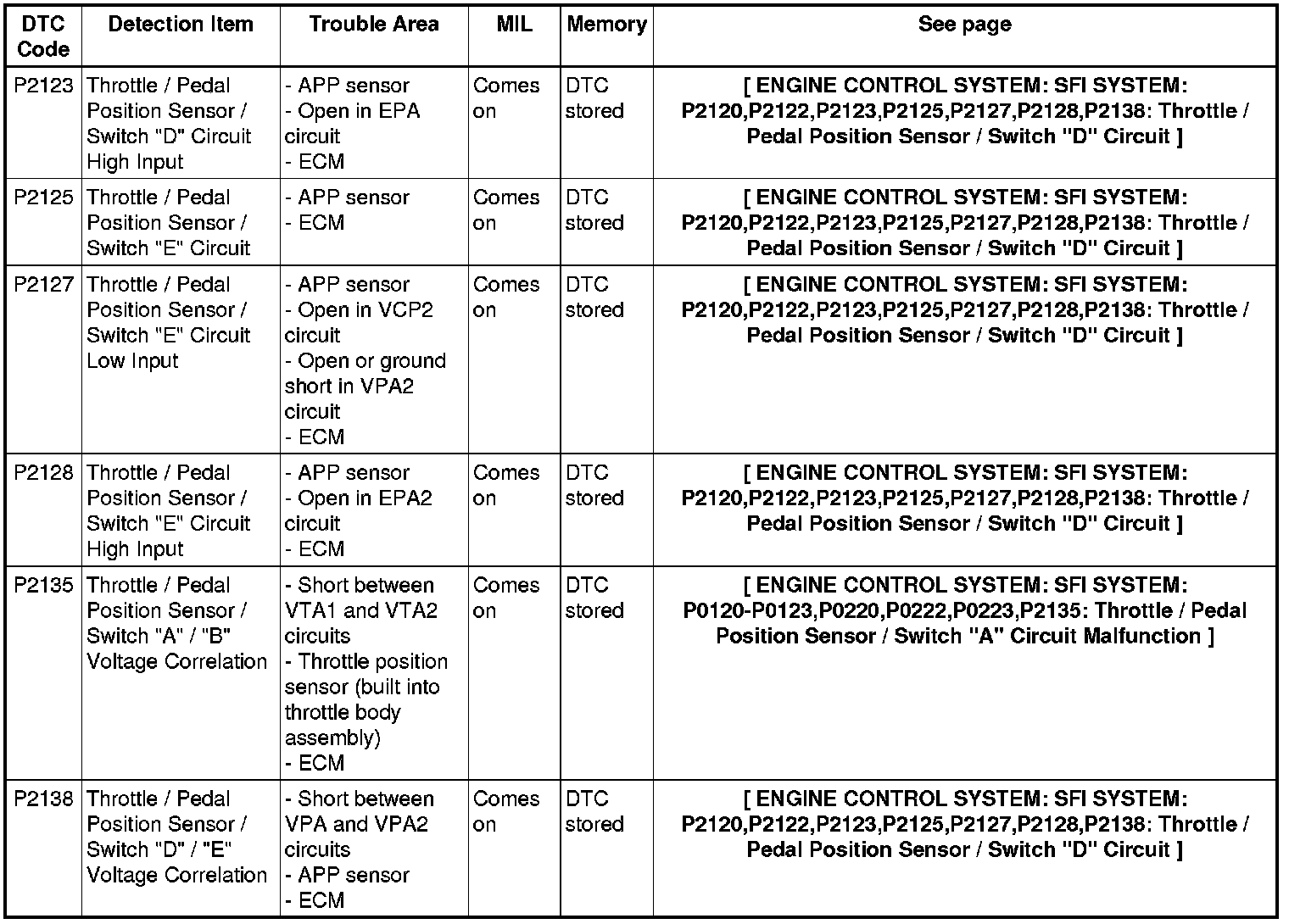

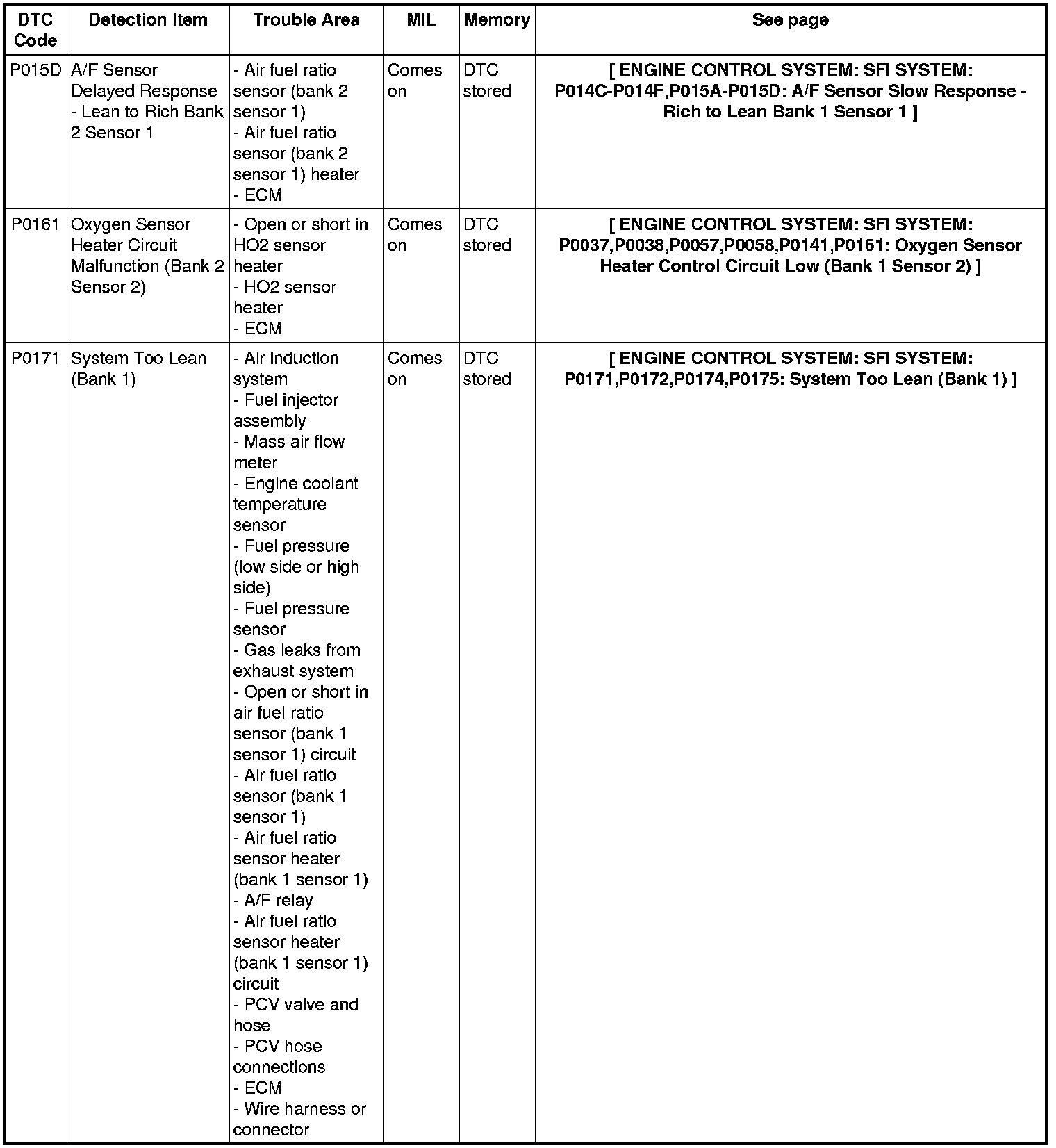

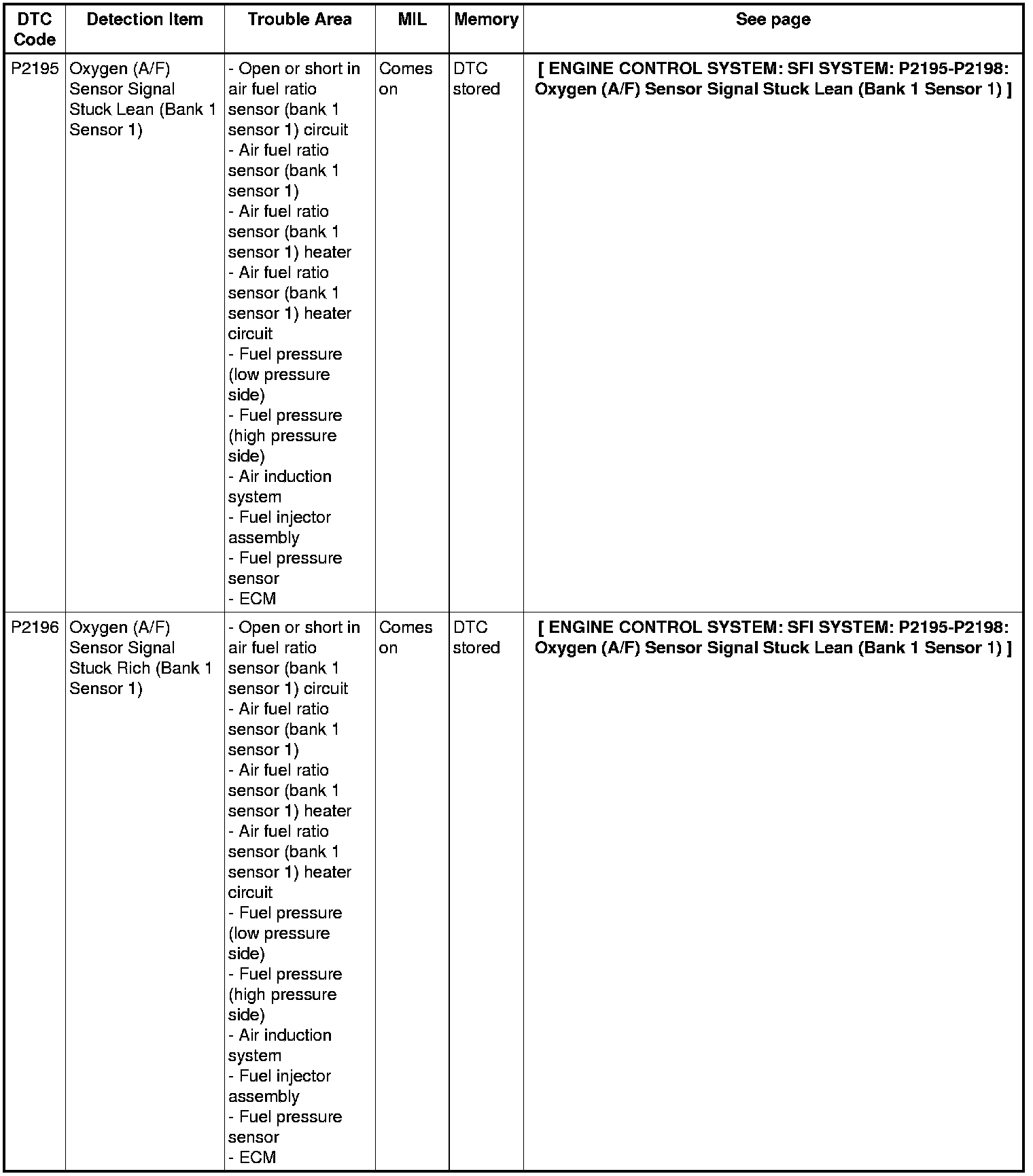

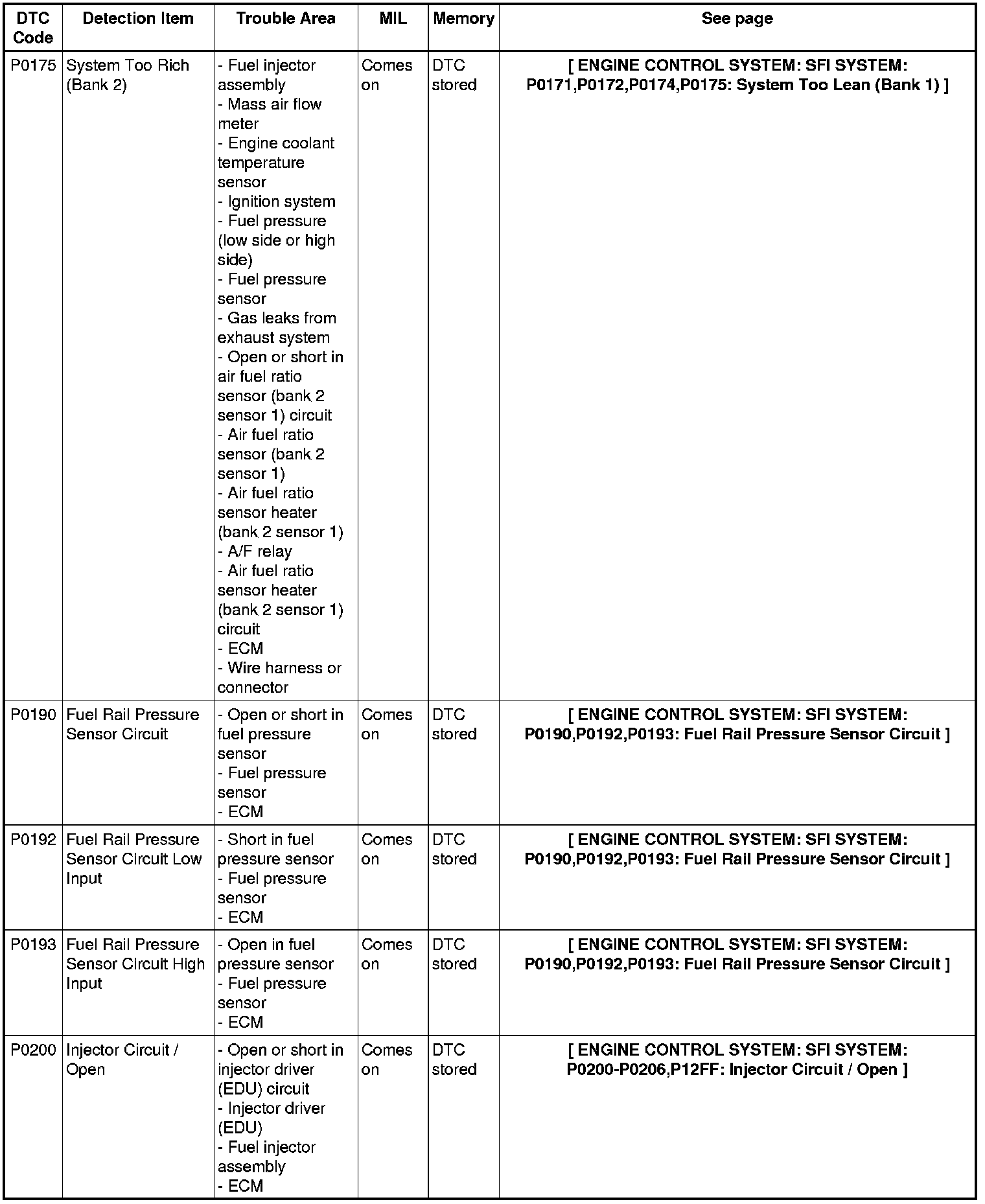

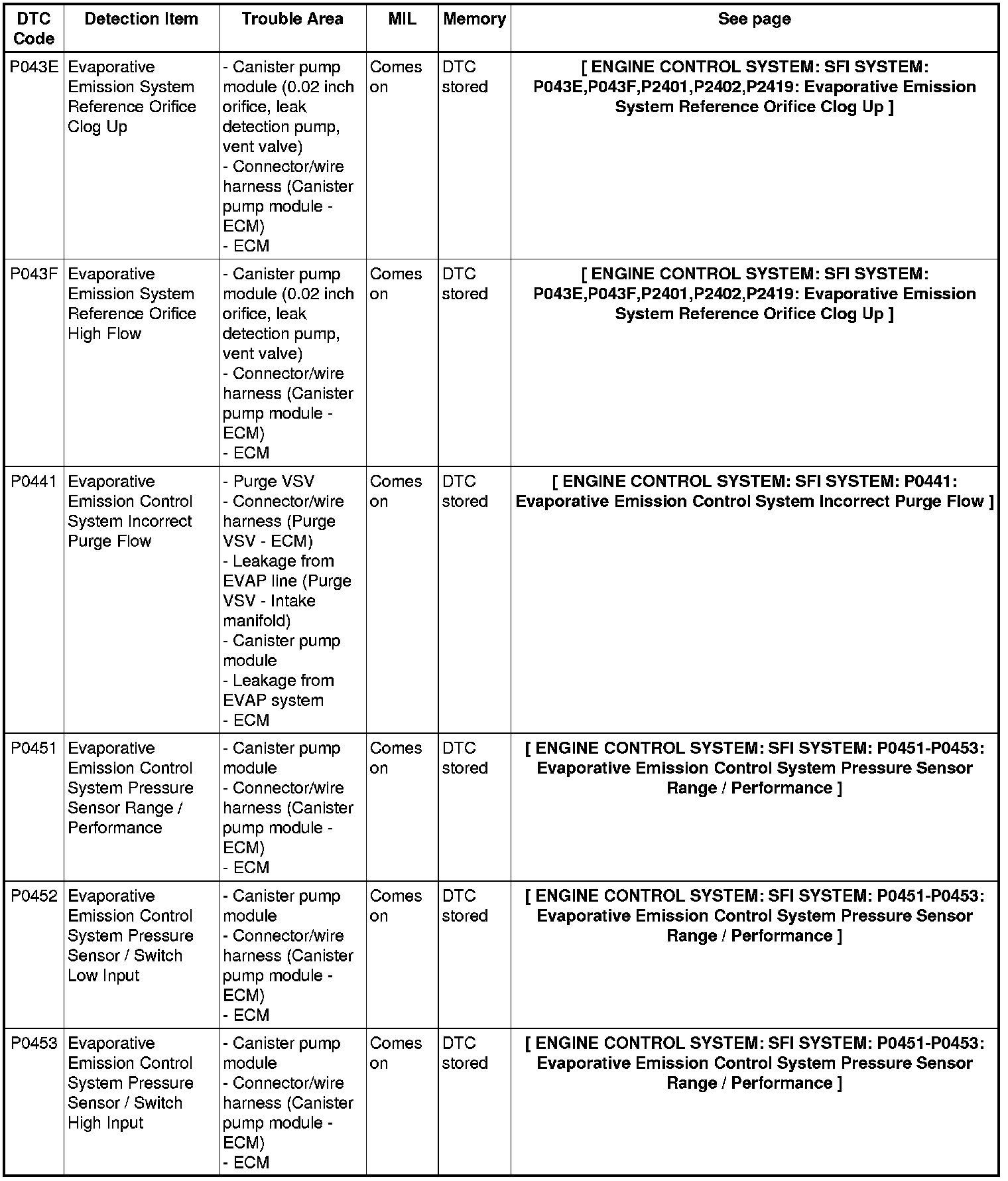

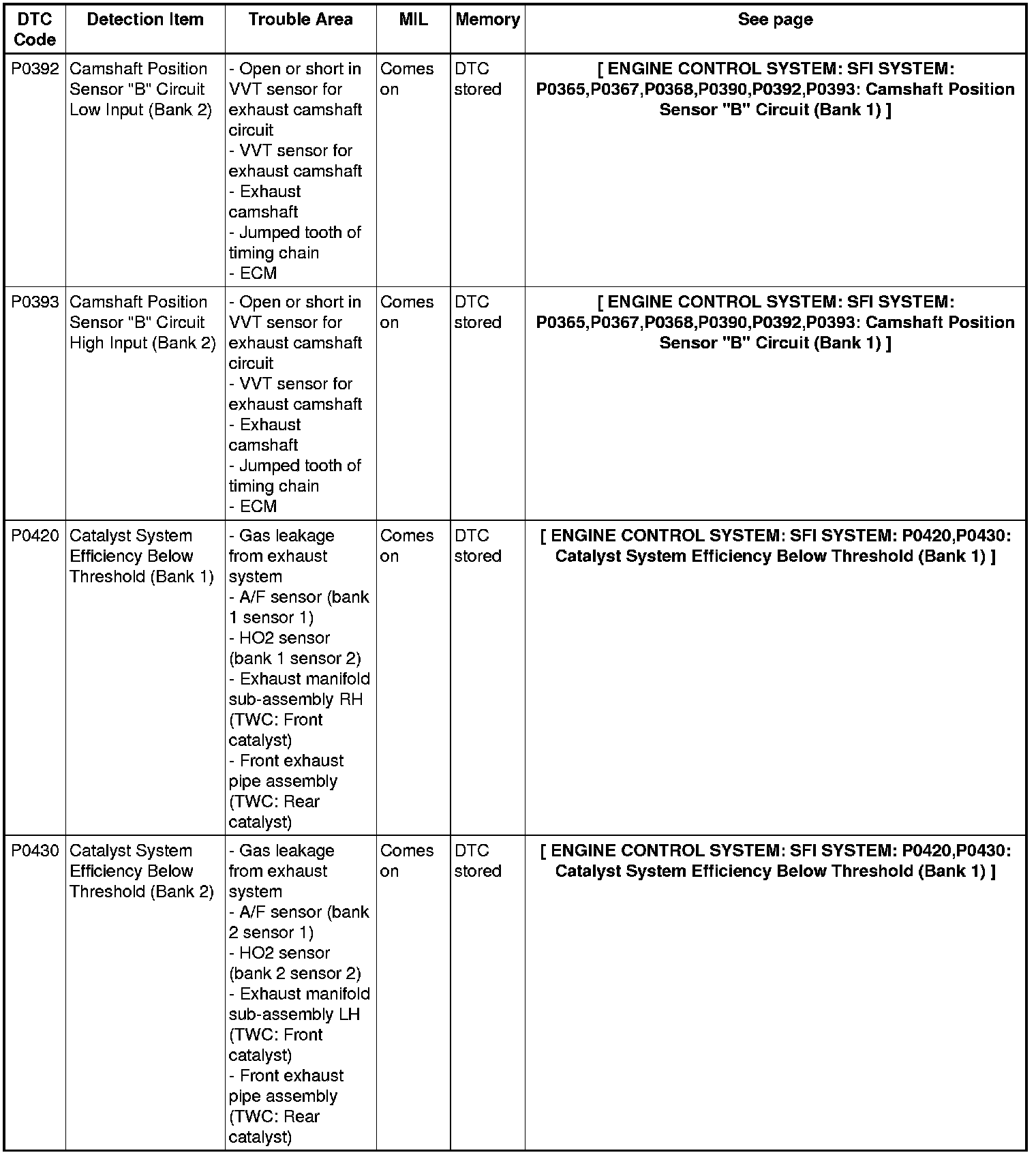

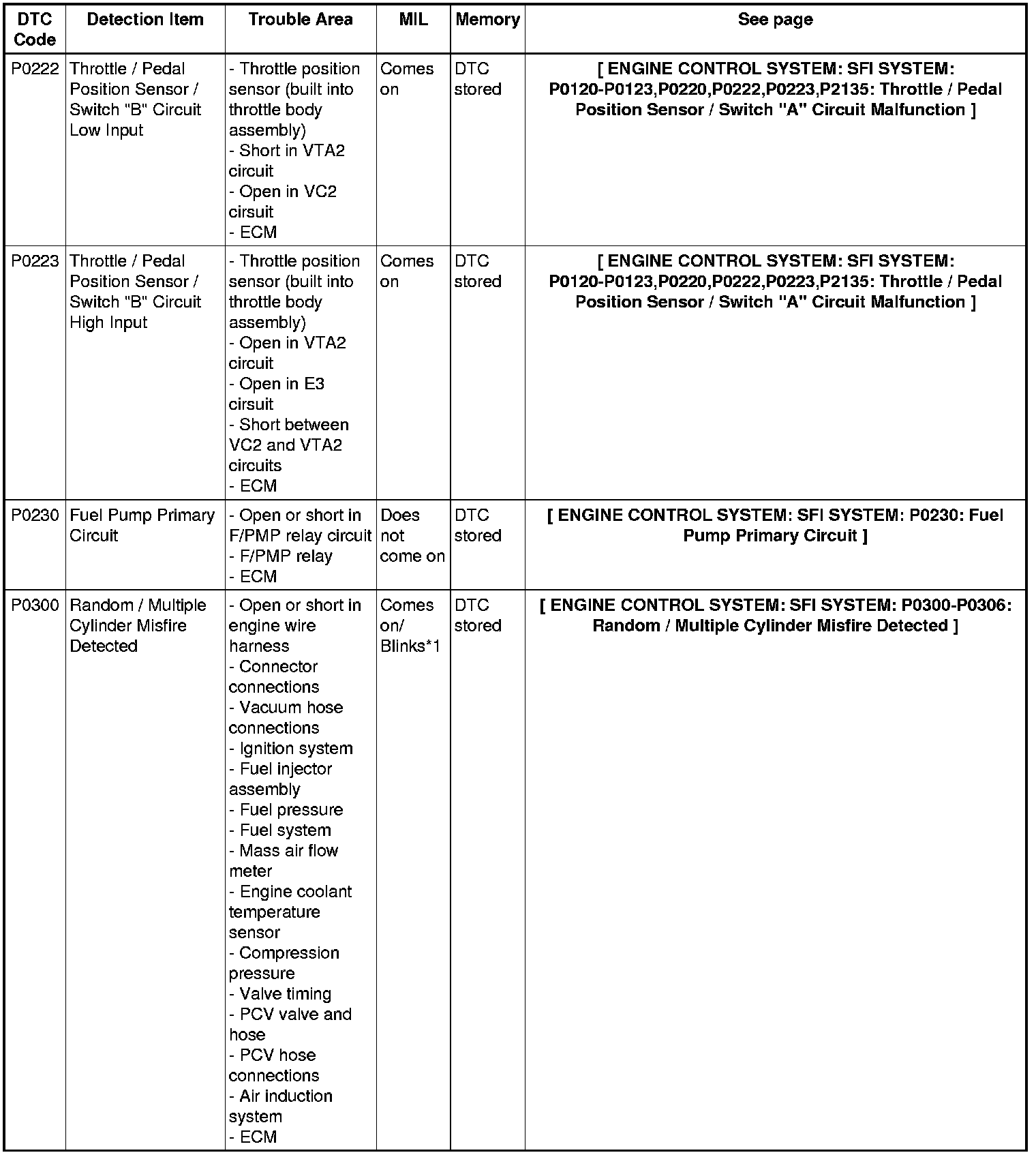

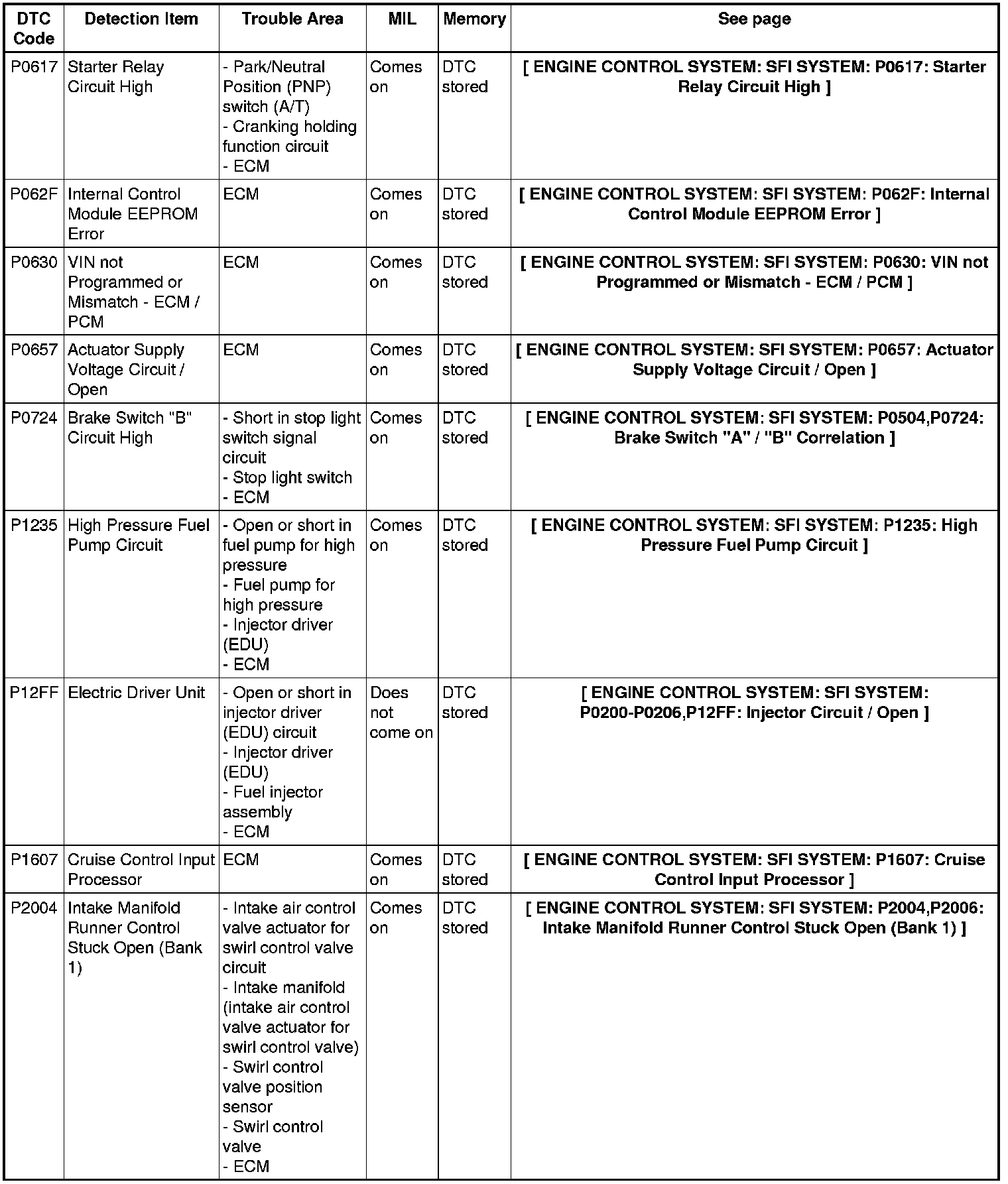

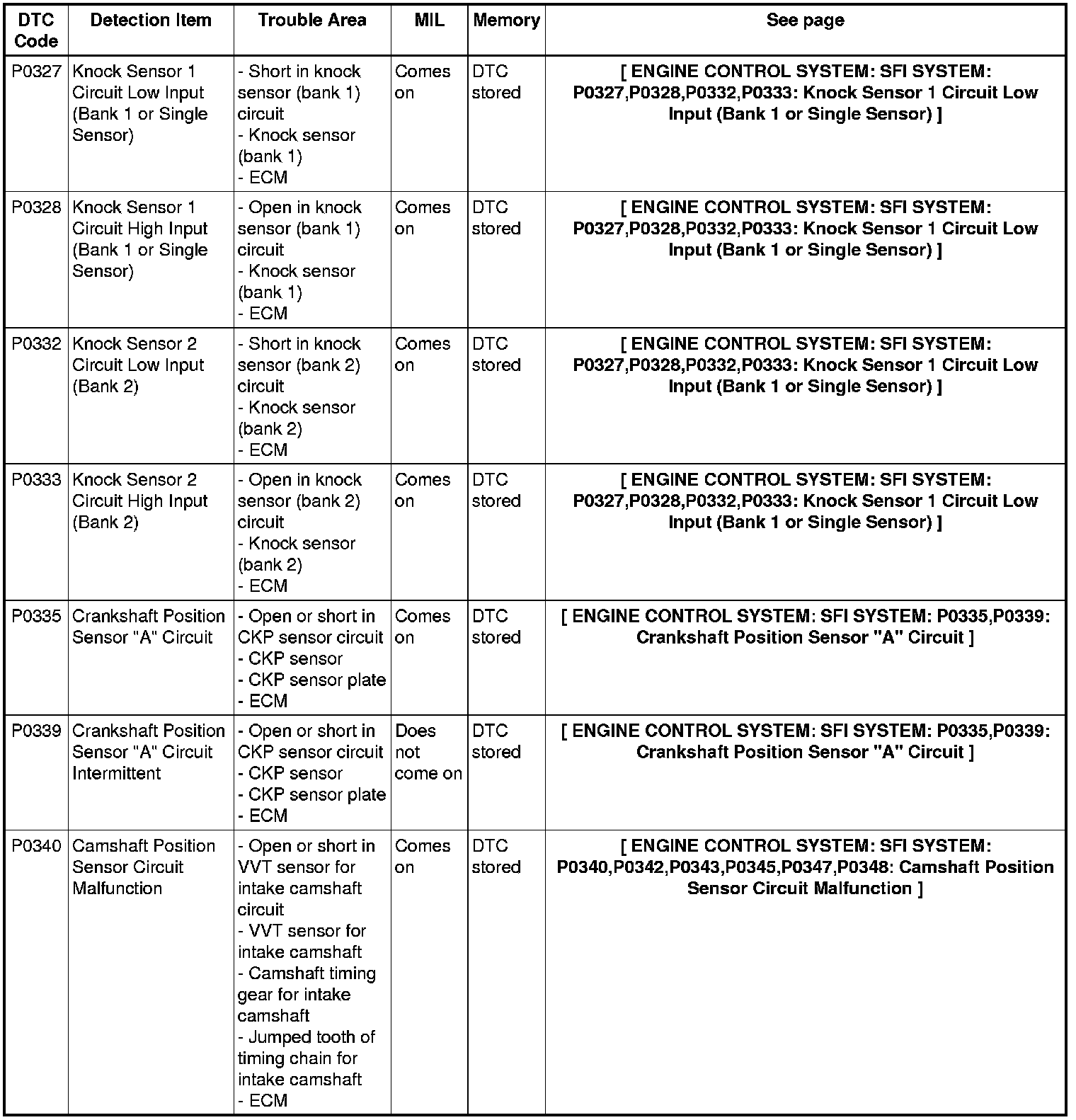

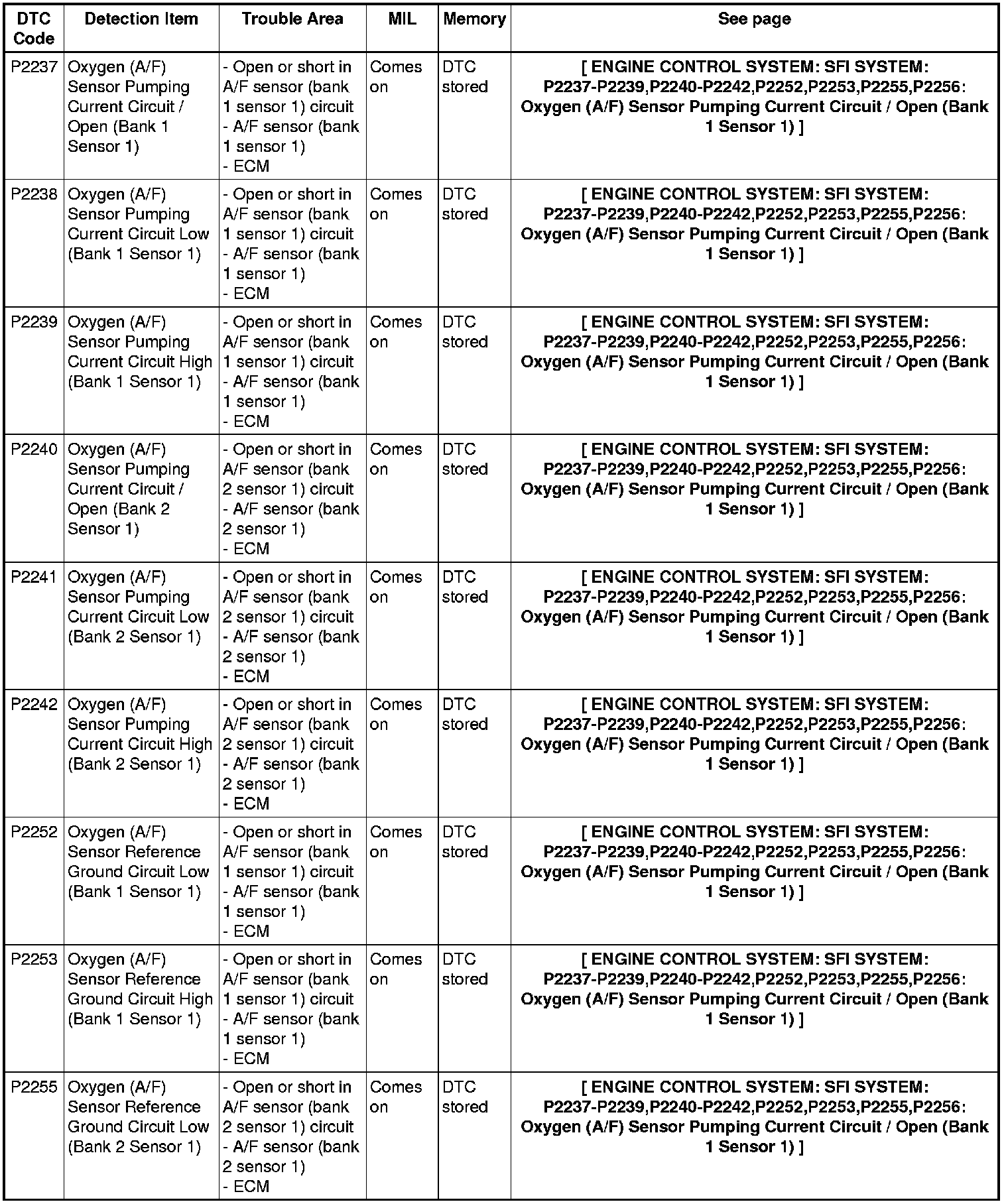

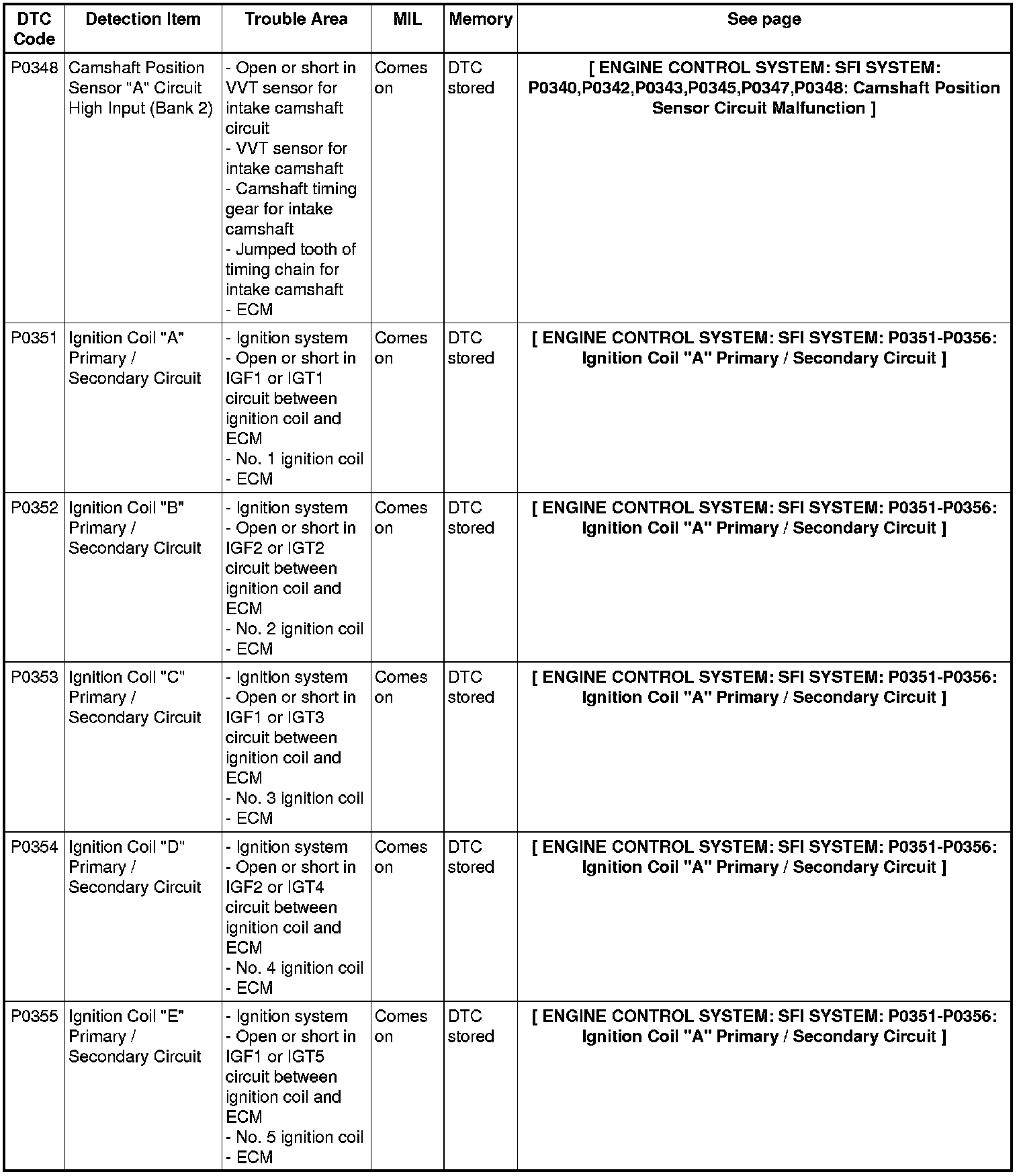

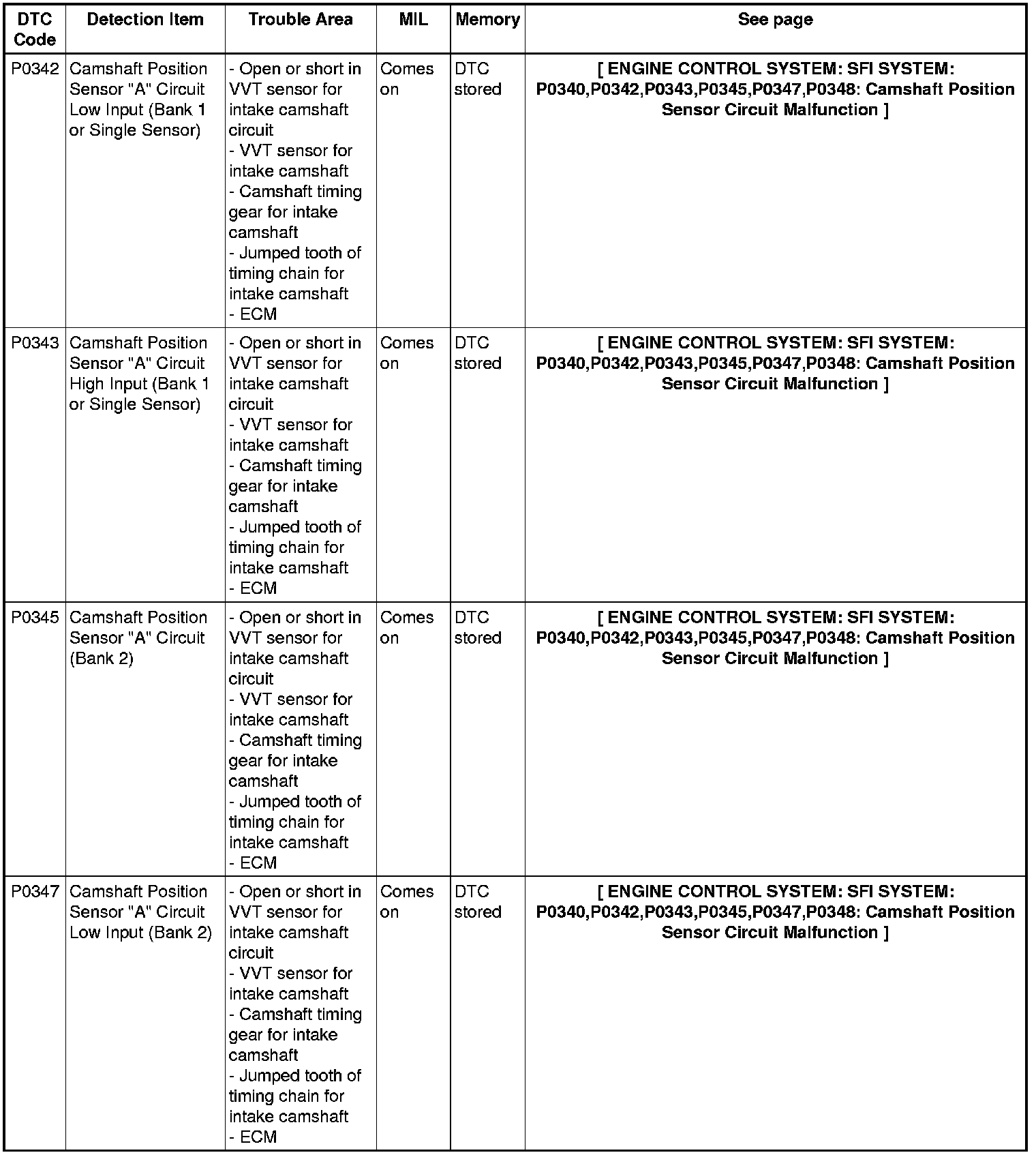

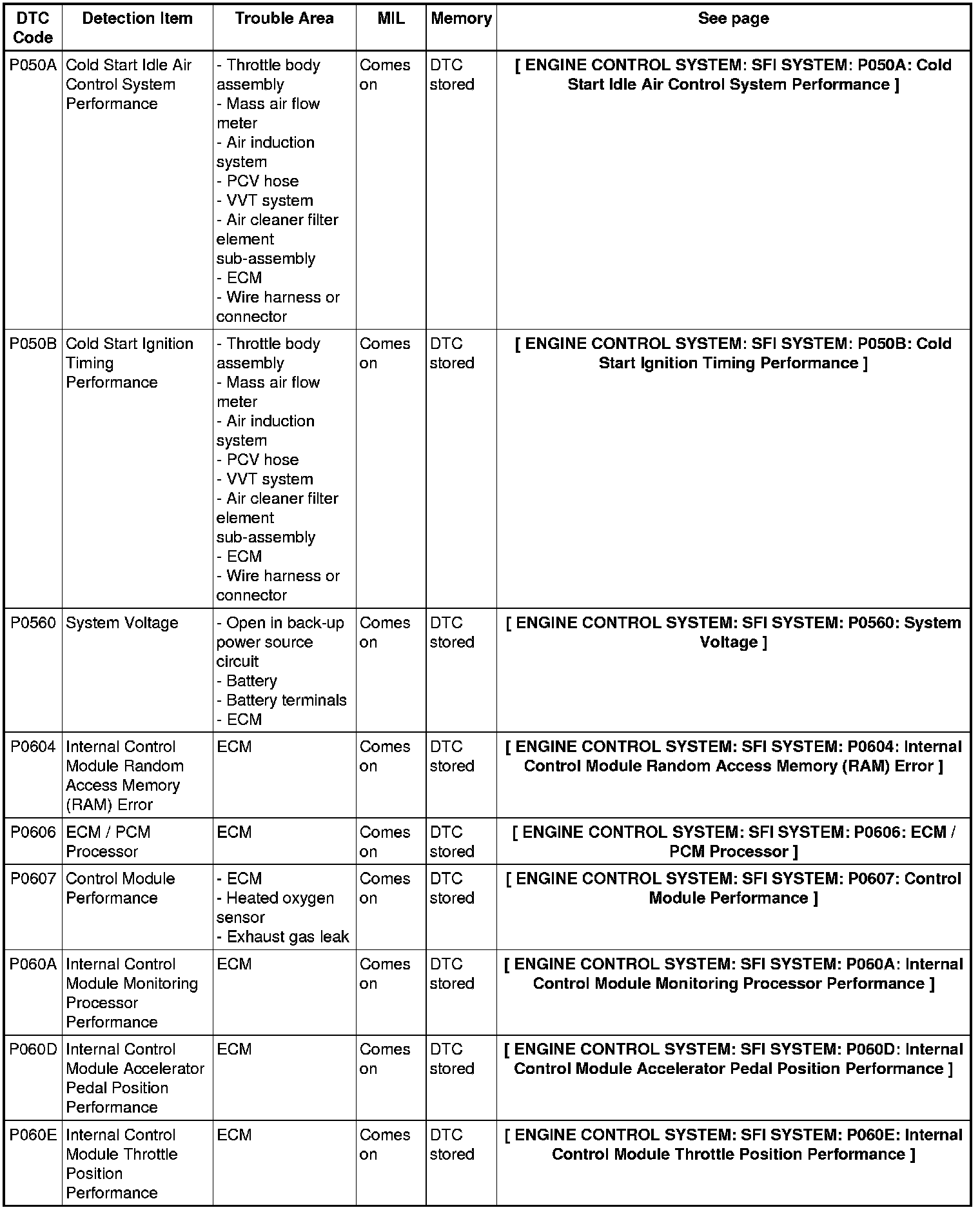

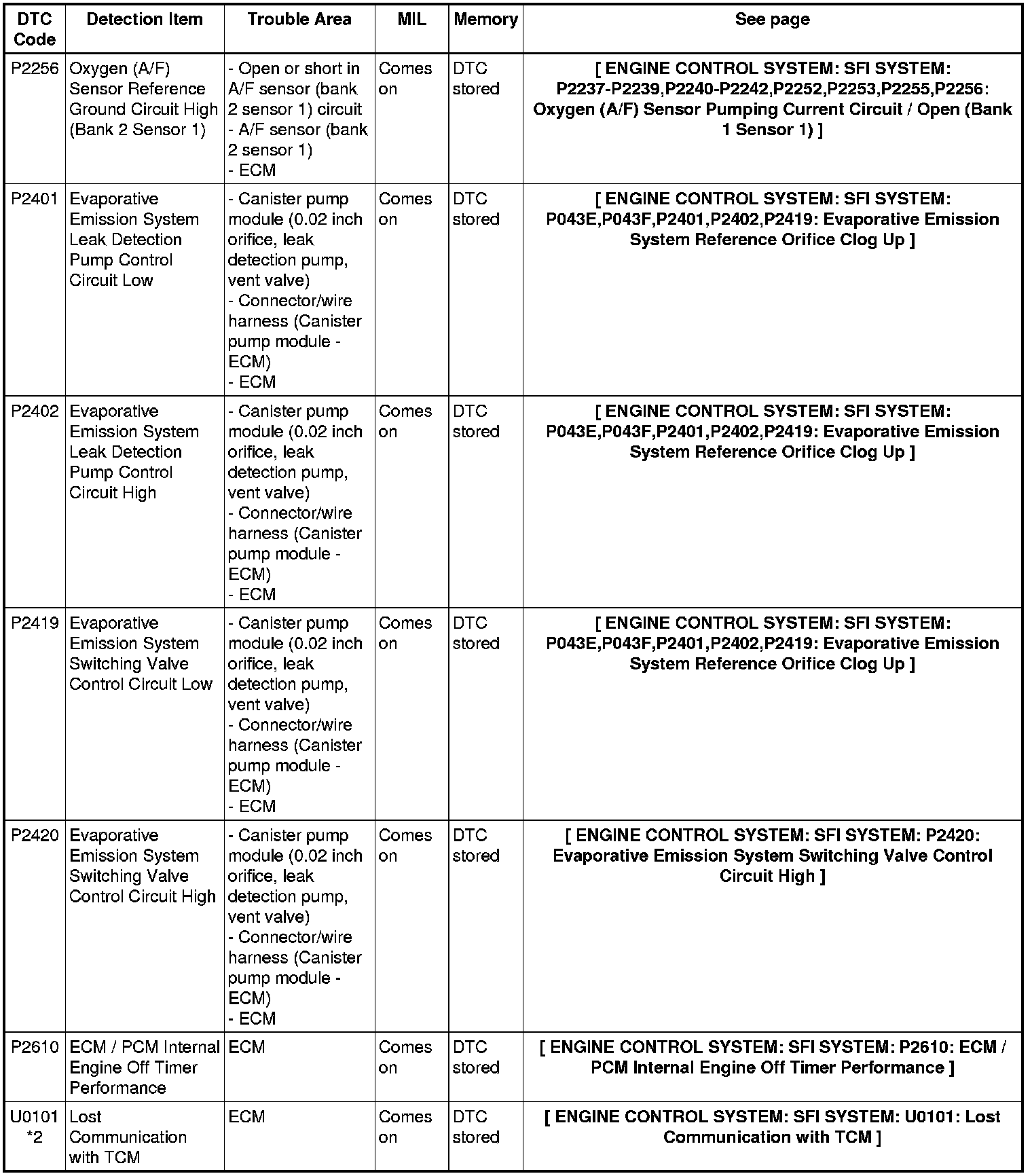

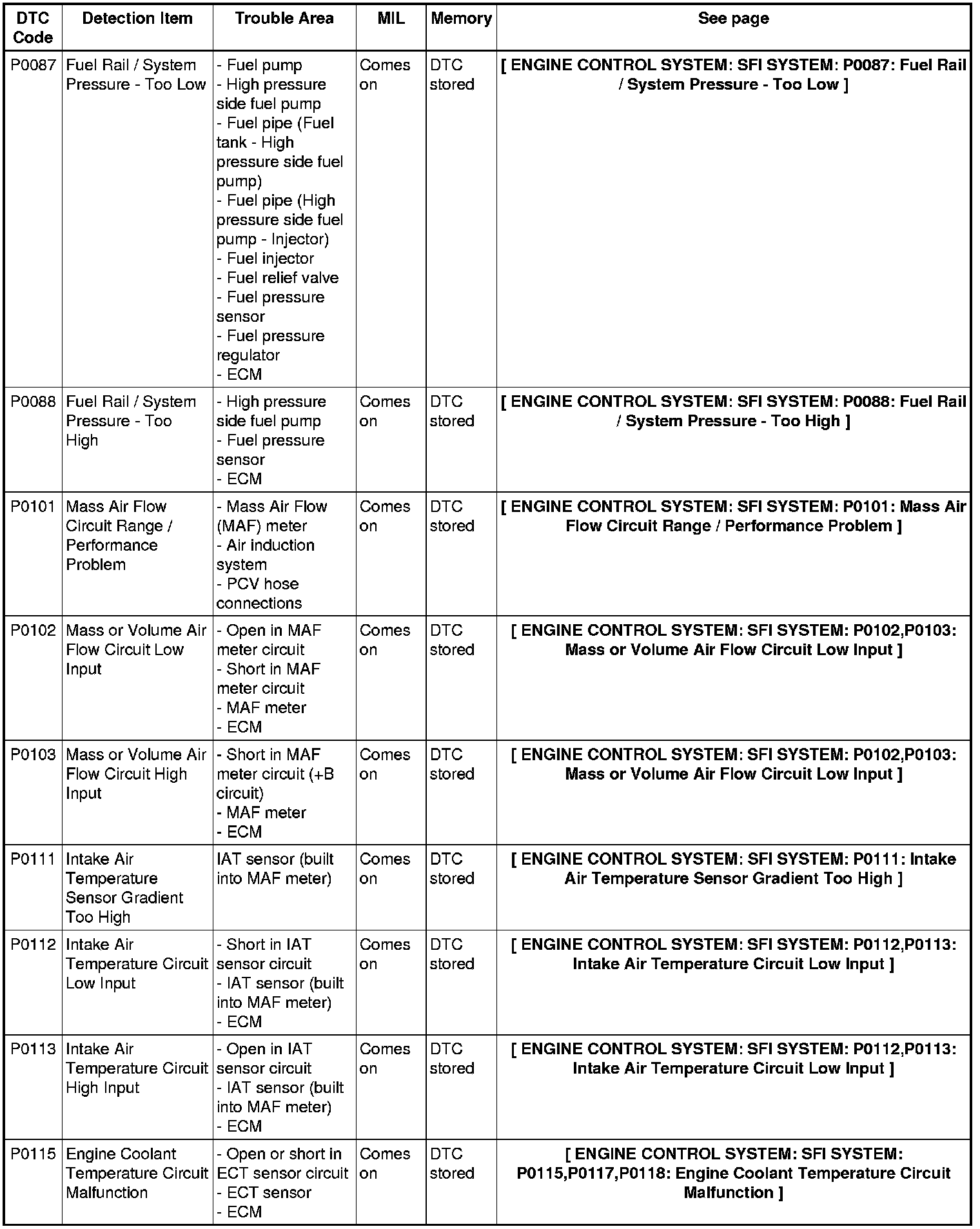

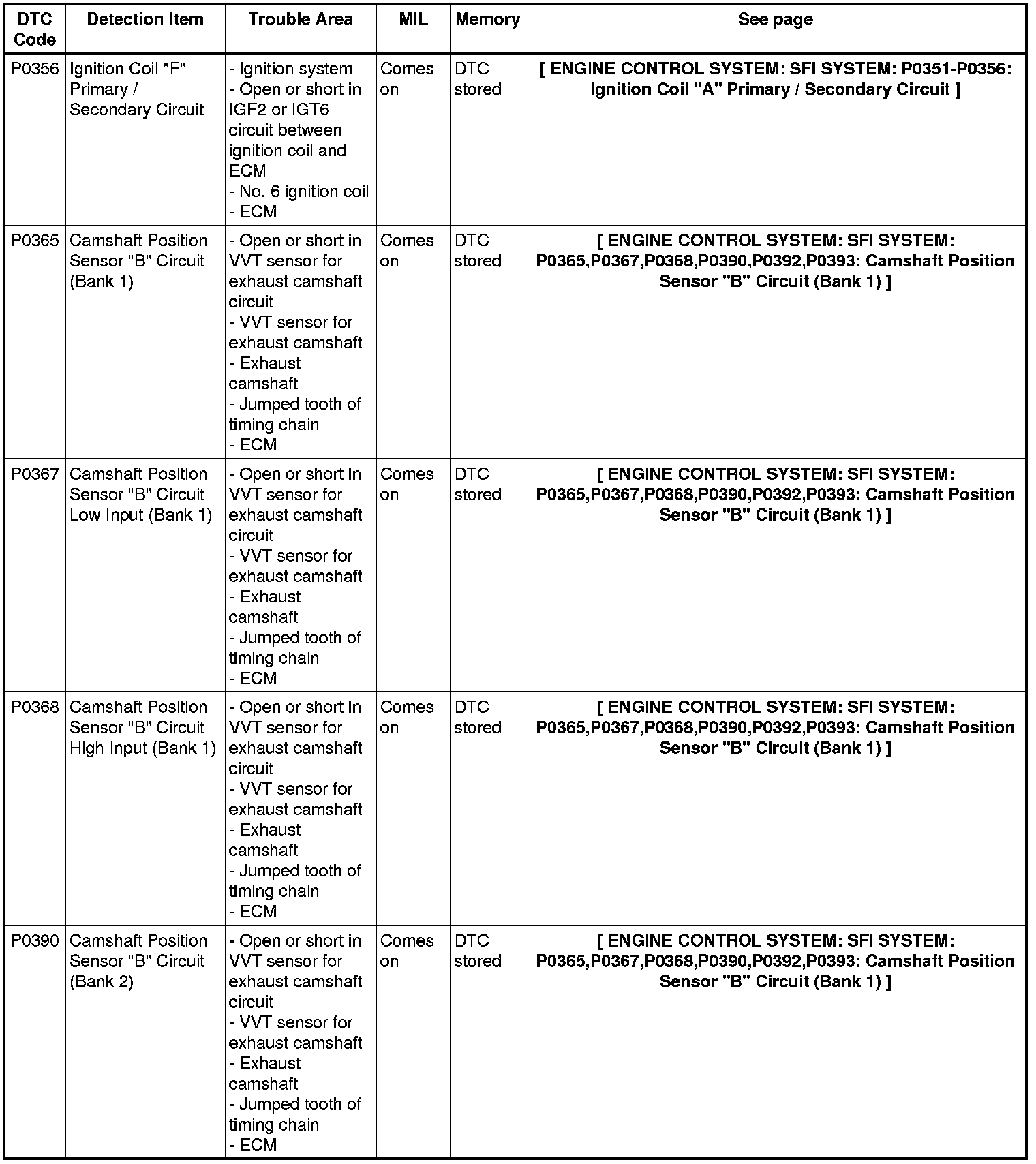

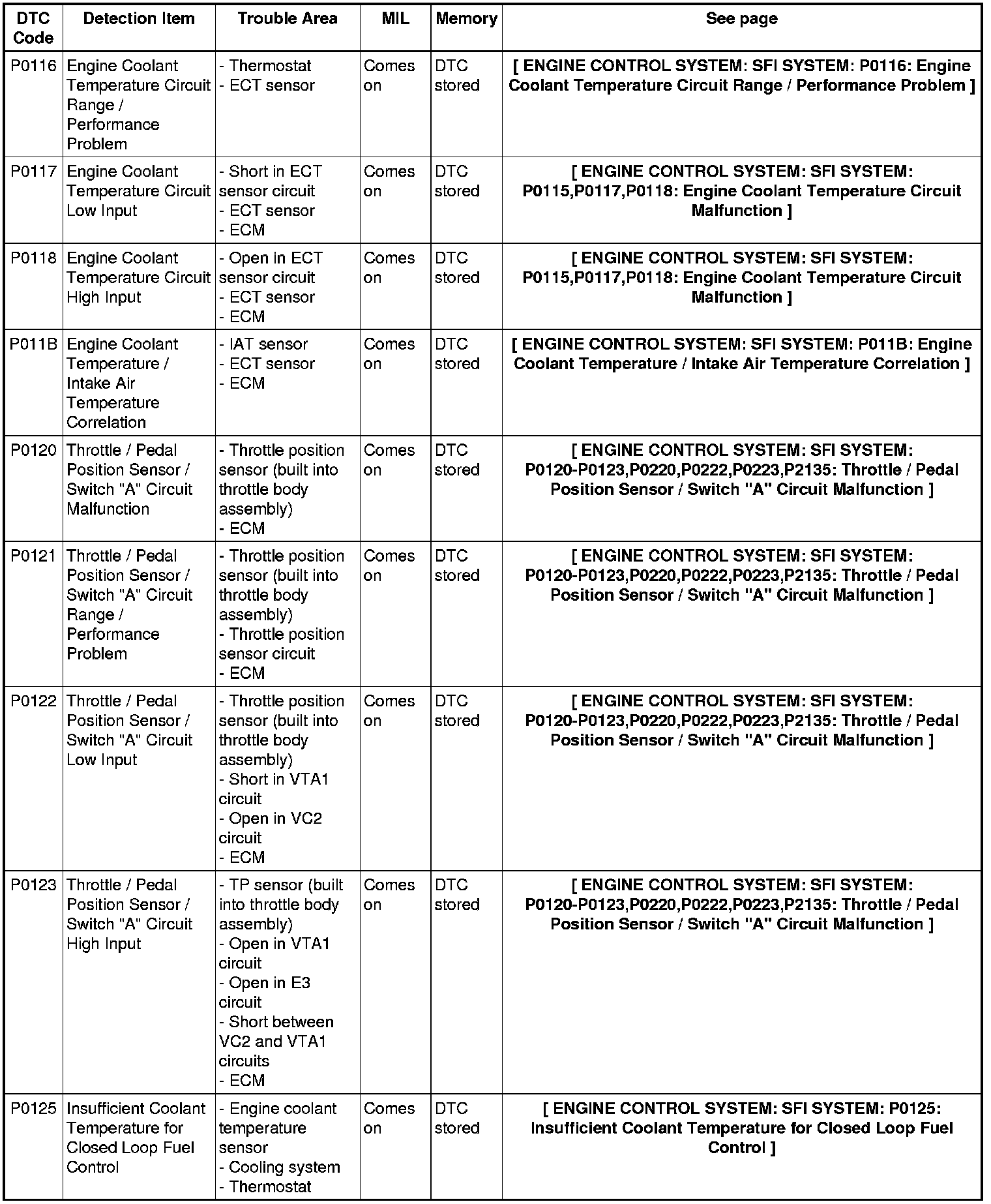

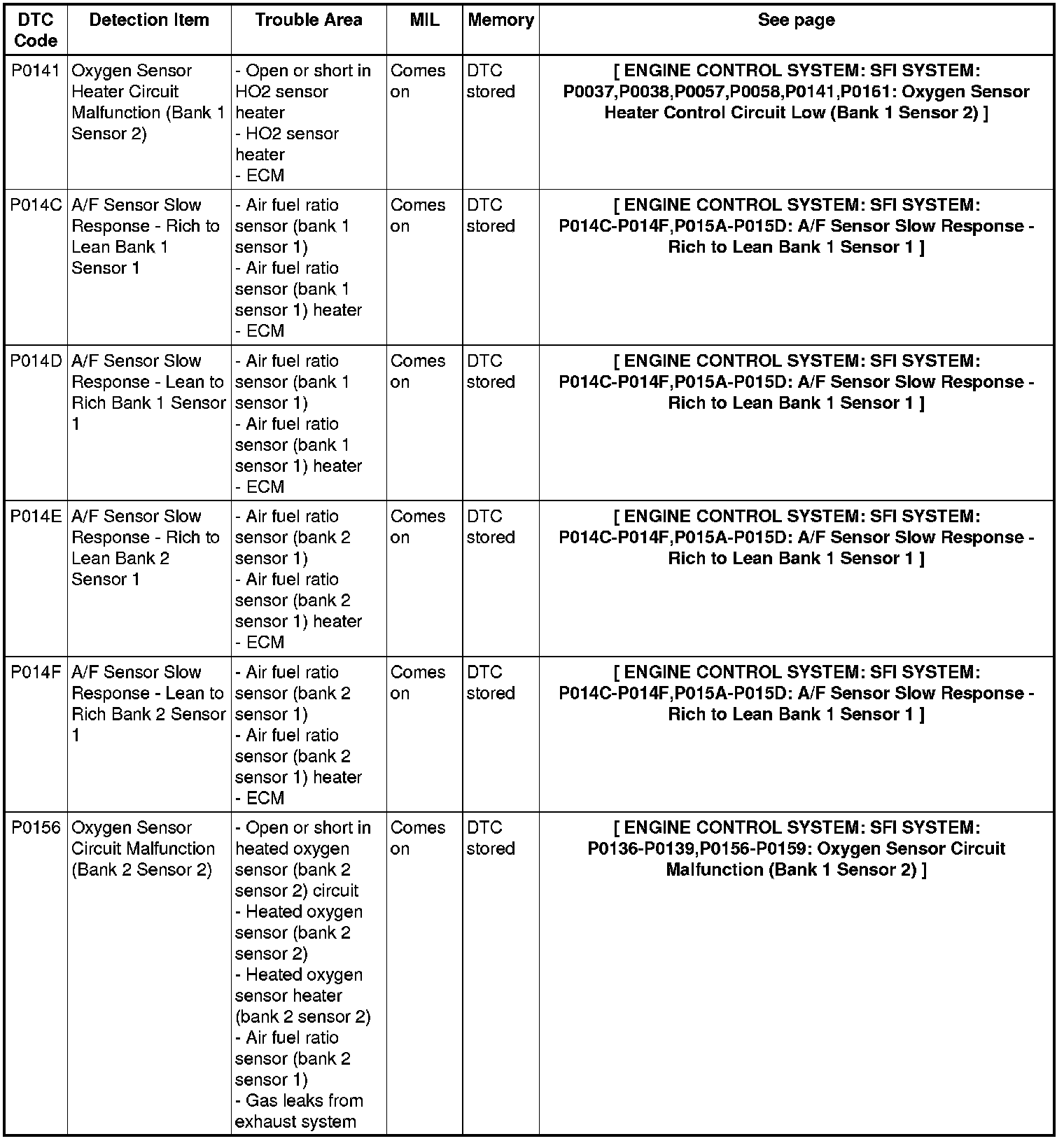

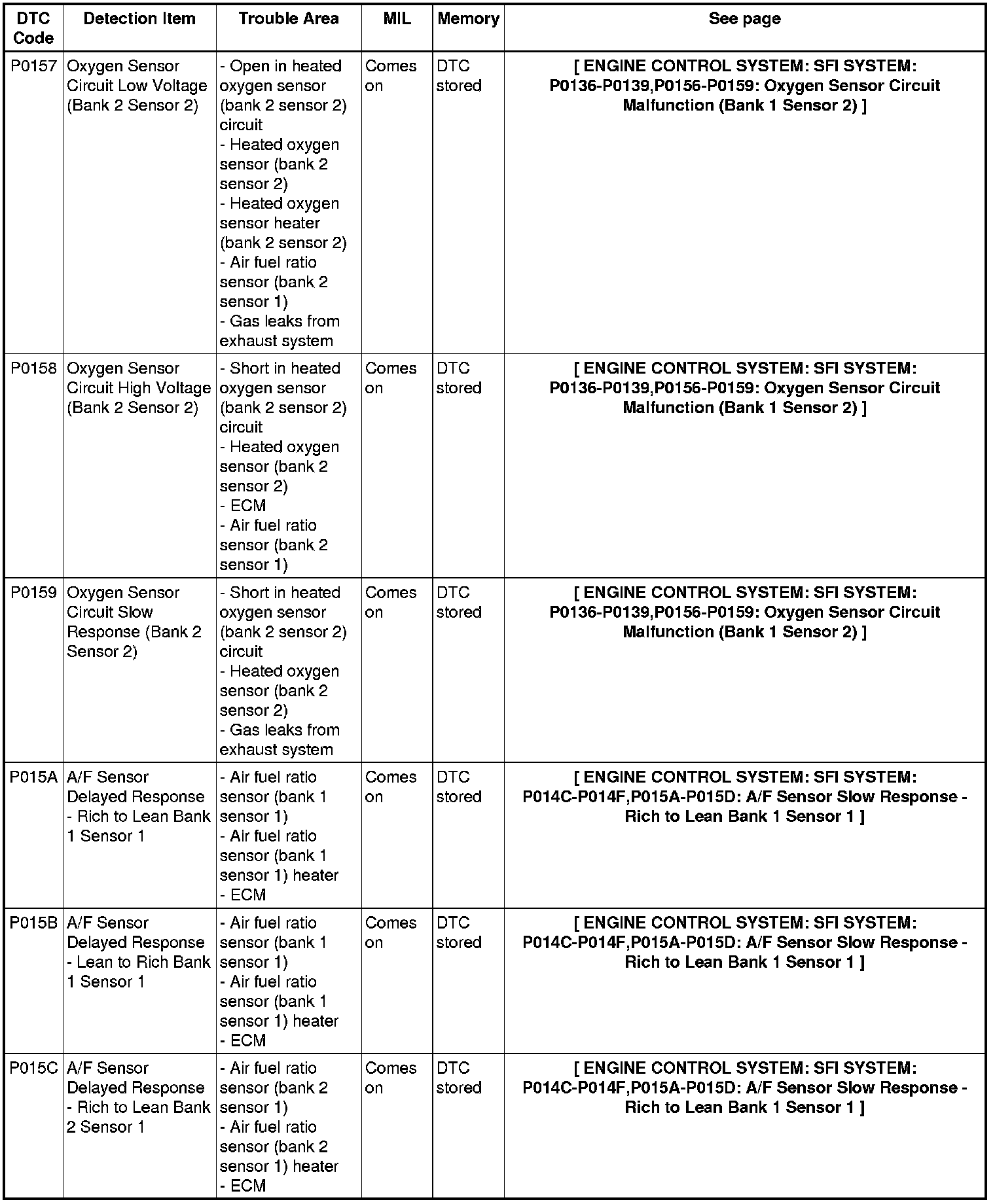

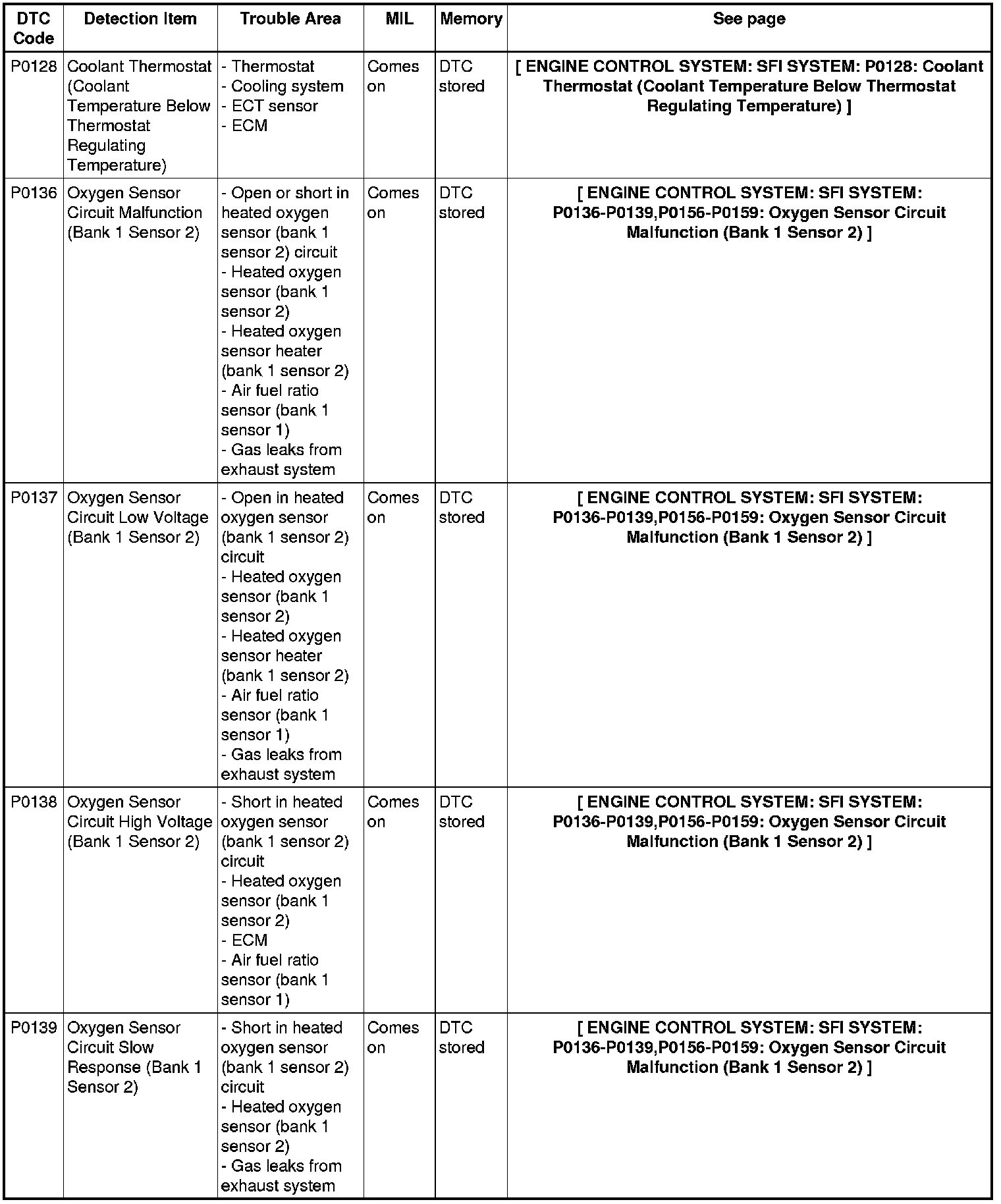

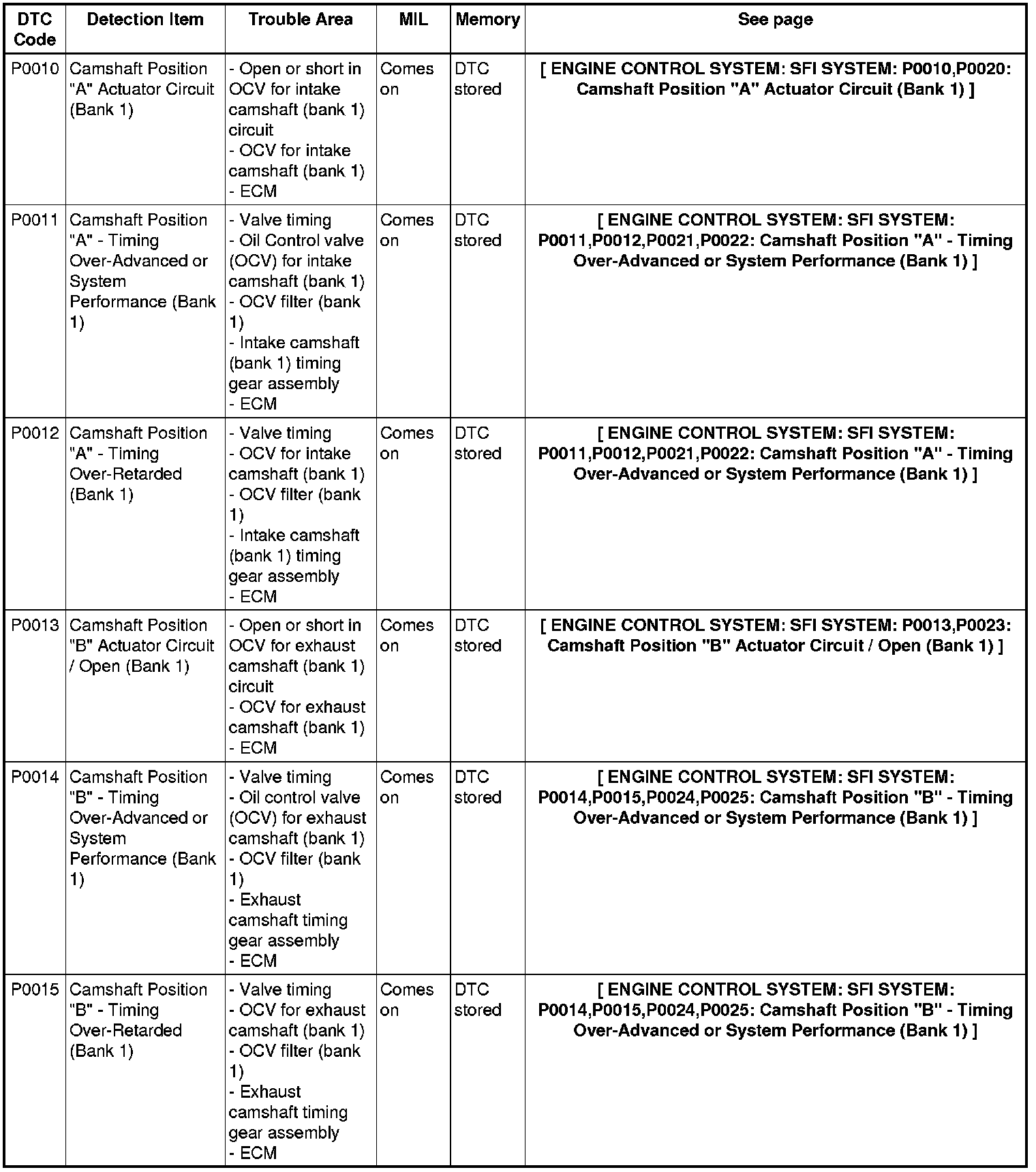

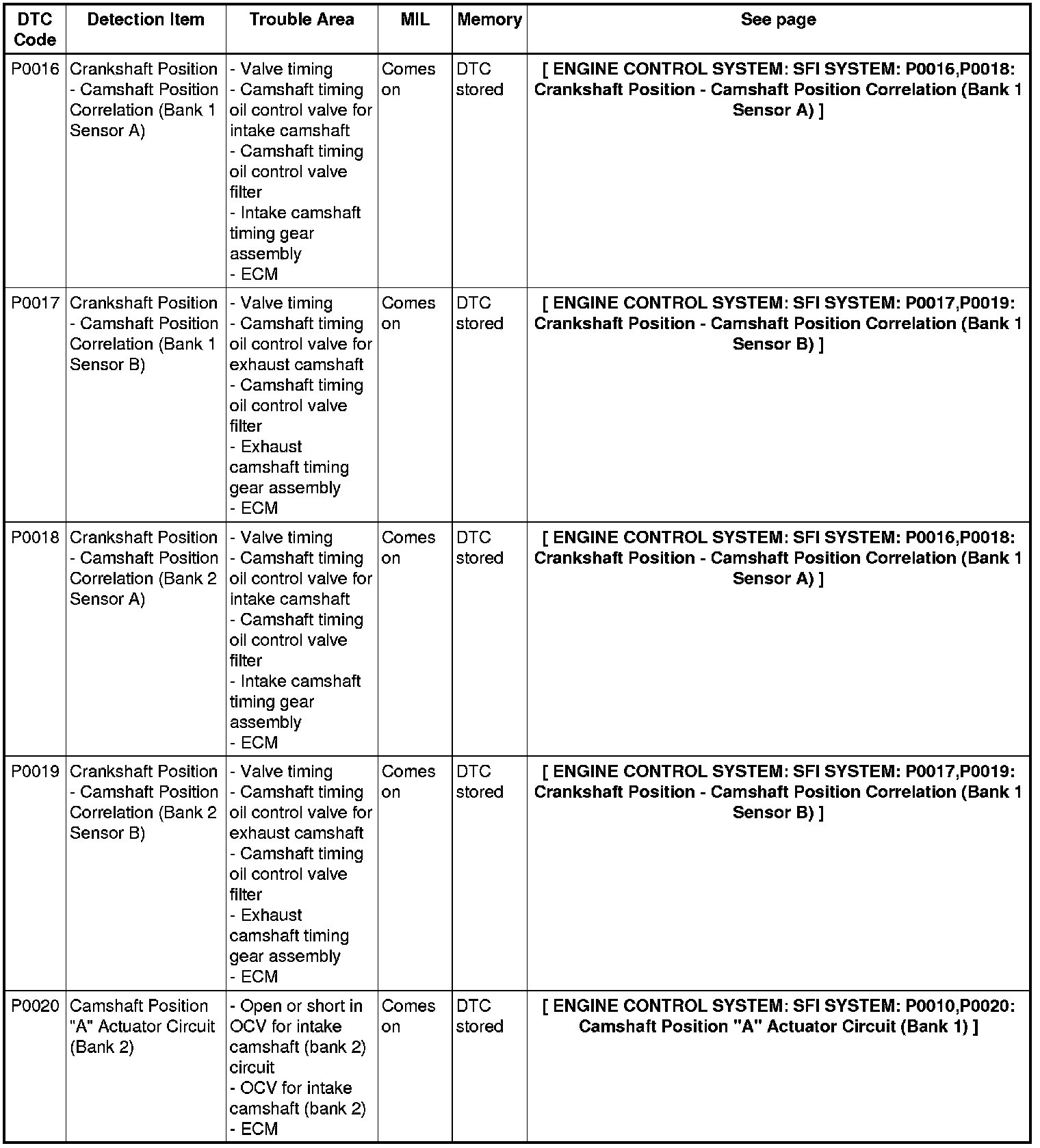

If a DTC is displayed, check the trouble area for the DTC listed in the table below. For details of each DTC.

SFI SYSTEM









































































































































*1: MIL flashes when a catalyst damaged misfire is detected.

*2: Automatic transmission models
