Multiplex Communication System

MULTIPLEX COMMUNICATION: MULTIPLEX COMMUNICATION SYSTEM: DIAGNOSTIC TROUBLE CODE CHART

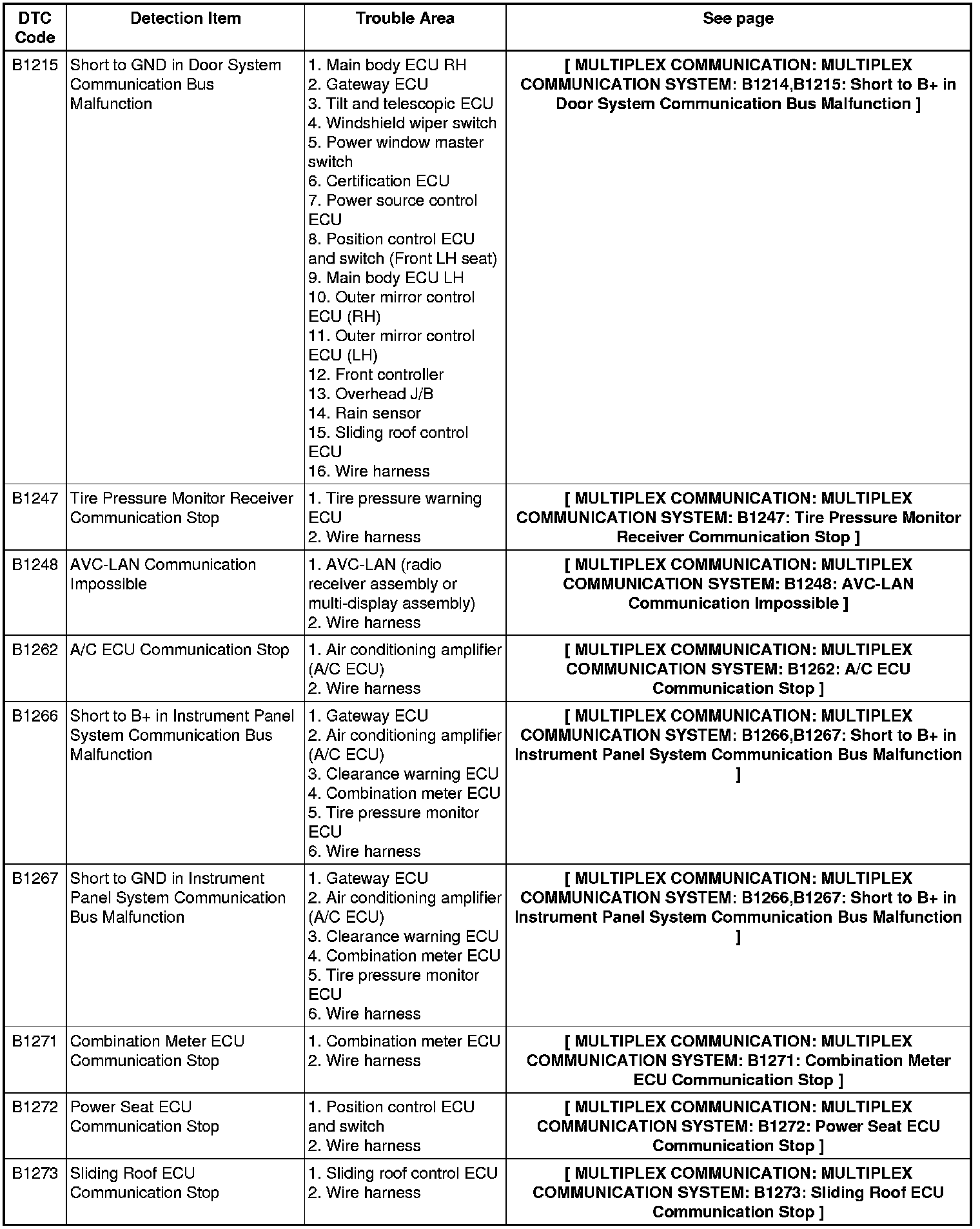

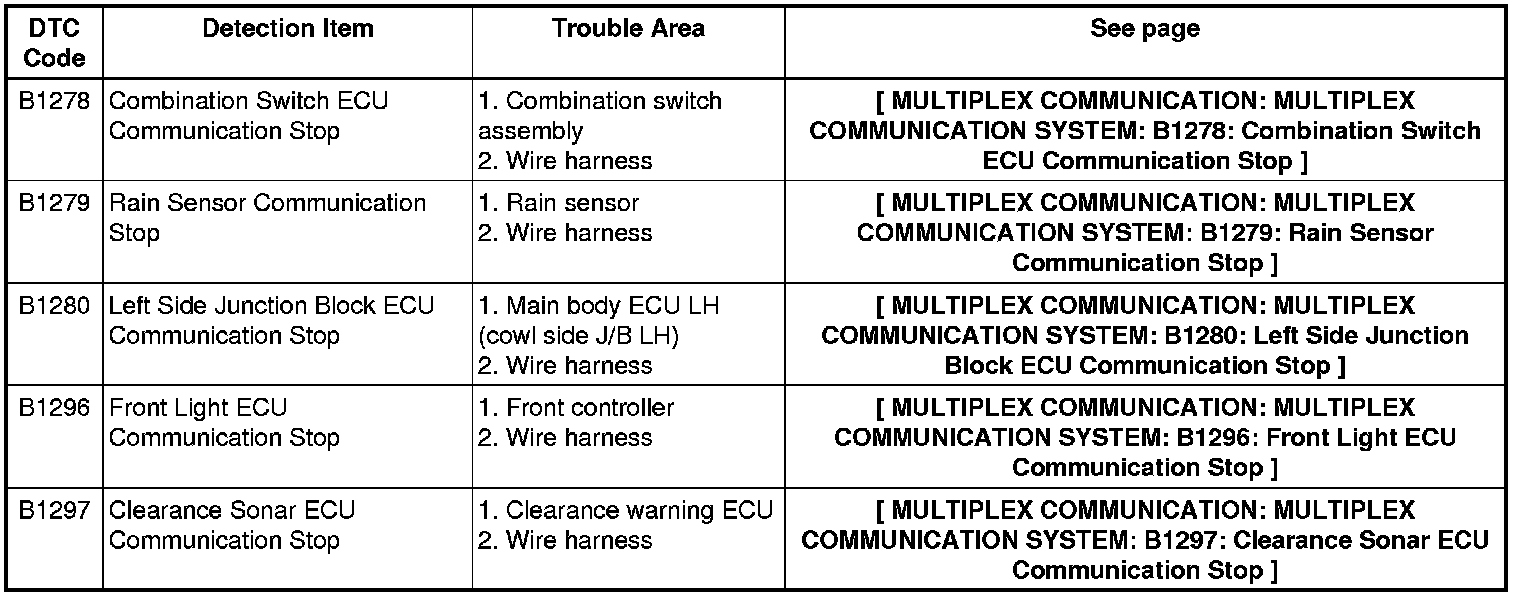

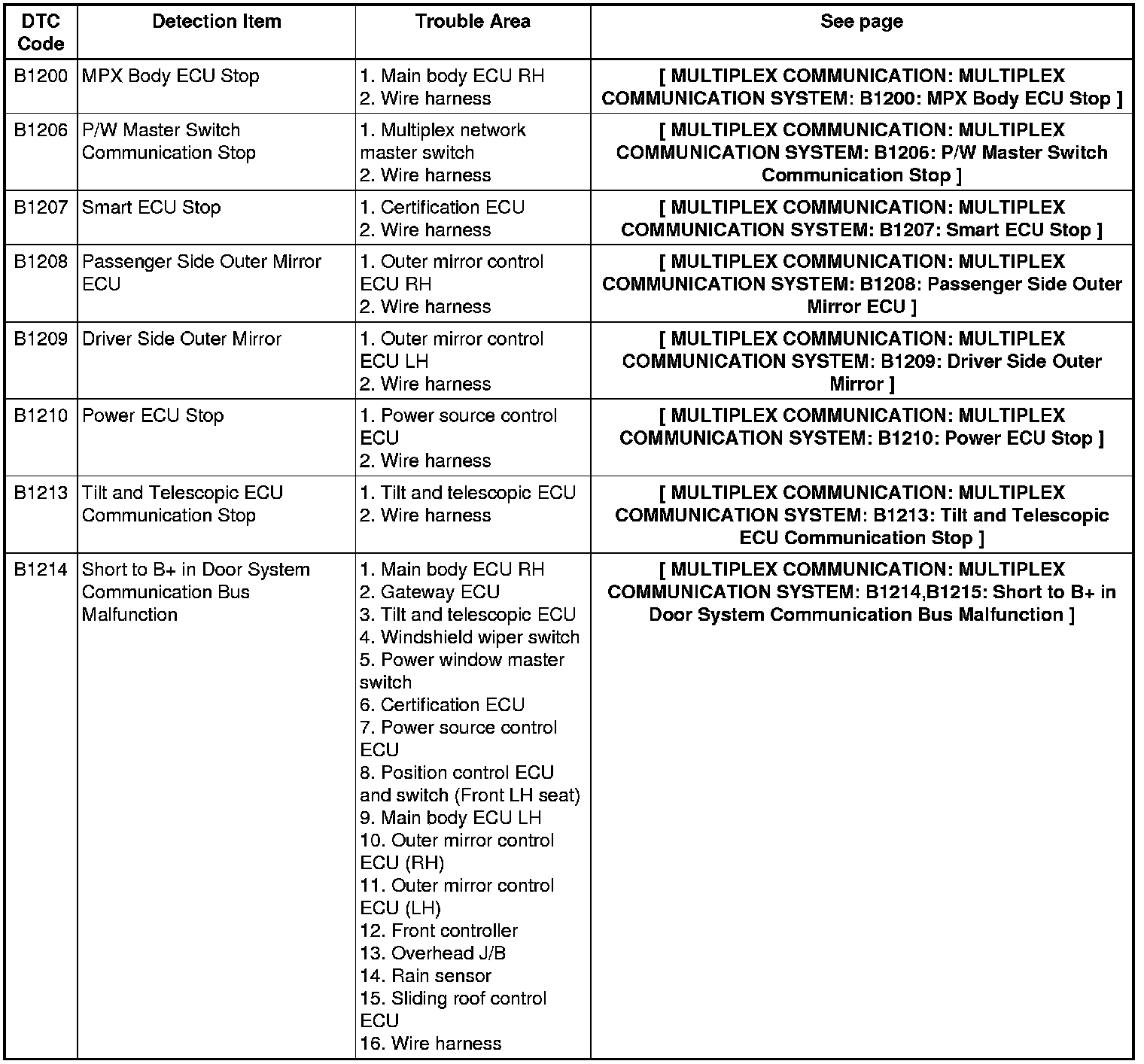

If malfunction code is displayed during DTC check, check the circuit corresponding to the code in the table below. Proceed to the page given for the circuit.

MULTIPLEX COMMUNICATION SYSTEM













When "+B or GND short malfunction of communication bus" DTCs (B1266 and B1267) are detected at the same time as "communication stop" DTCs (B1200, B1216, B1208, B1209, B1213, B1272, B1287 and B1294), please repair the "+B or GND short malfunction of communication bus" DTCs first.

When "+B or GND short malfunction of communication bus" DTCs (B1214 and B1215) are detected at the same time as "communication stop" DTCs (B1245, B1262, B1271, B1273, B1277, B1279 and B1281), please repair the "+B or GND short malfunction of communication bus" DTCs first.
