Audio and Visual System (w/o Navigation System)
AUDIO / VISUAL: AUDIO AND VISUAL SYSTEM (w/o Navigation System): DIAGNOSTIC TROUBLE CODE CHART
NOTICE:
After replacing the radio receiver assembly of vehicles subscribed to pay-type satellite radio broadcasts, the XM radio ID registration is necessary. (w/ SDARS System)

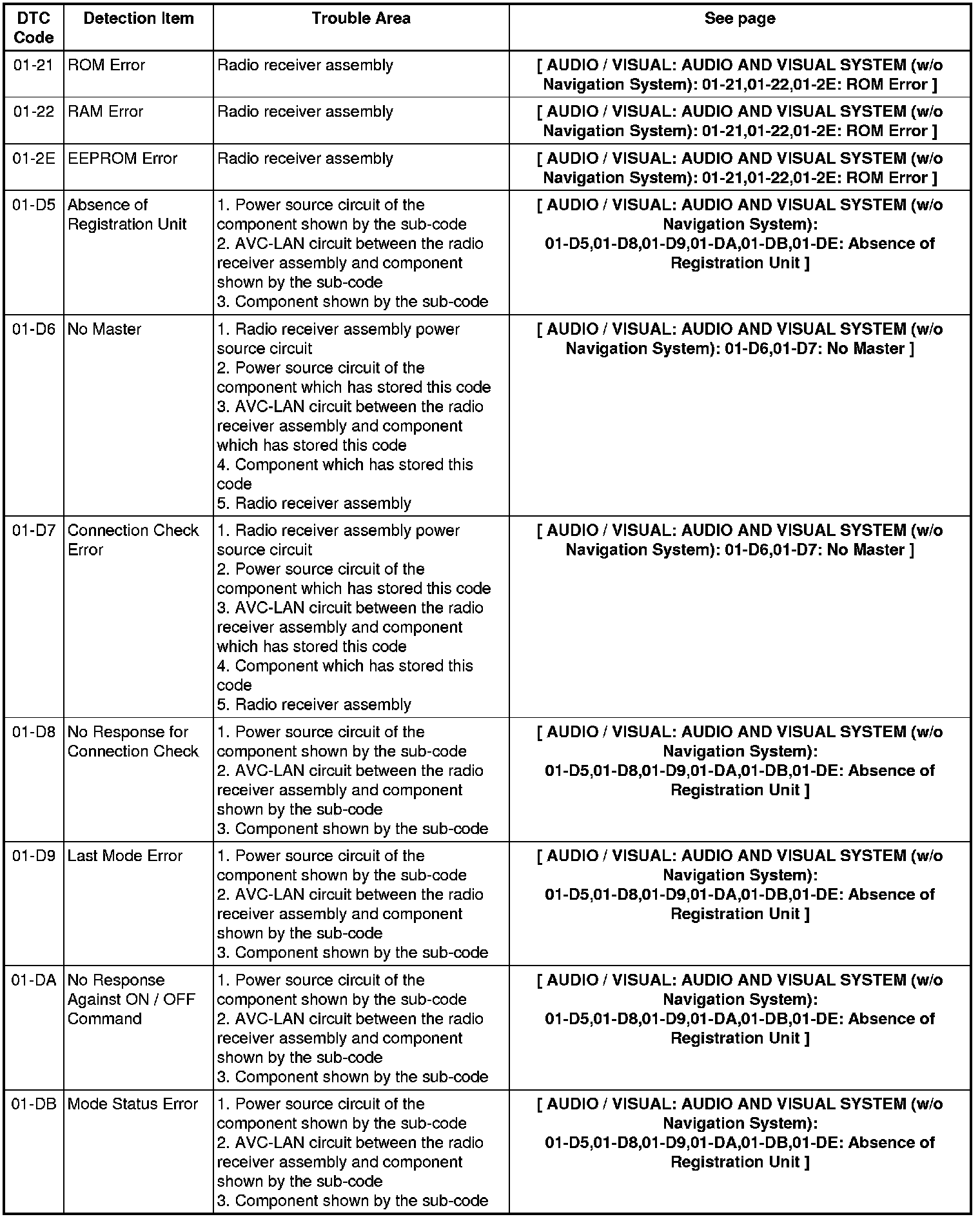

Communication Diagnosis
Telephone

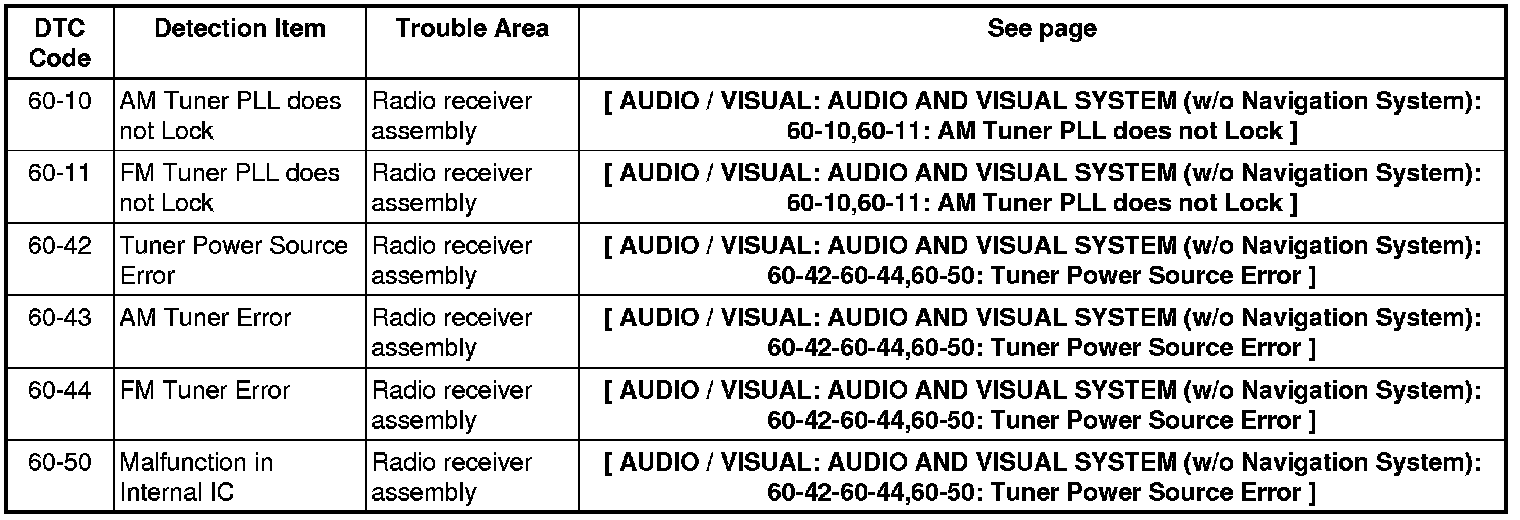

Radio Unit

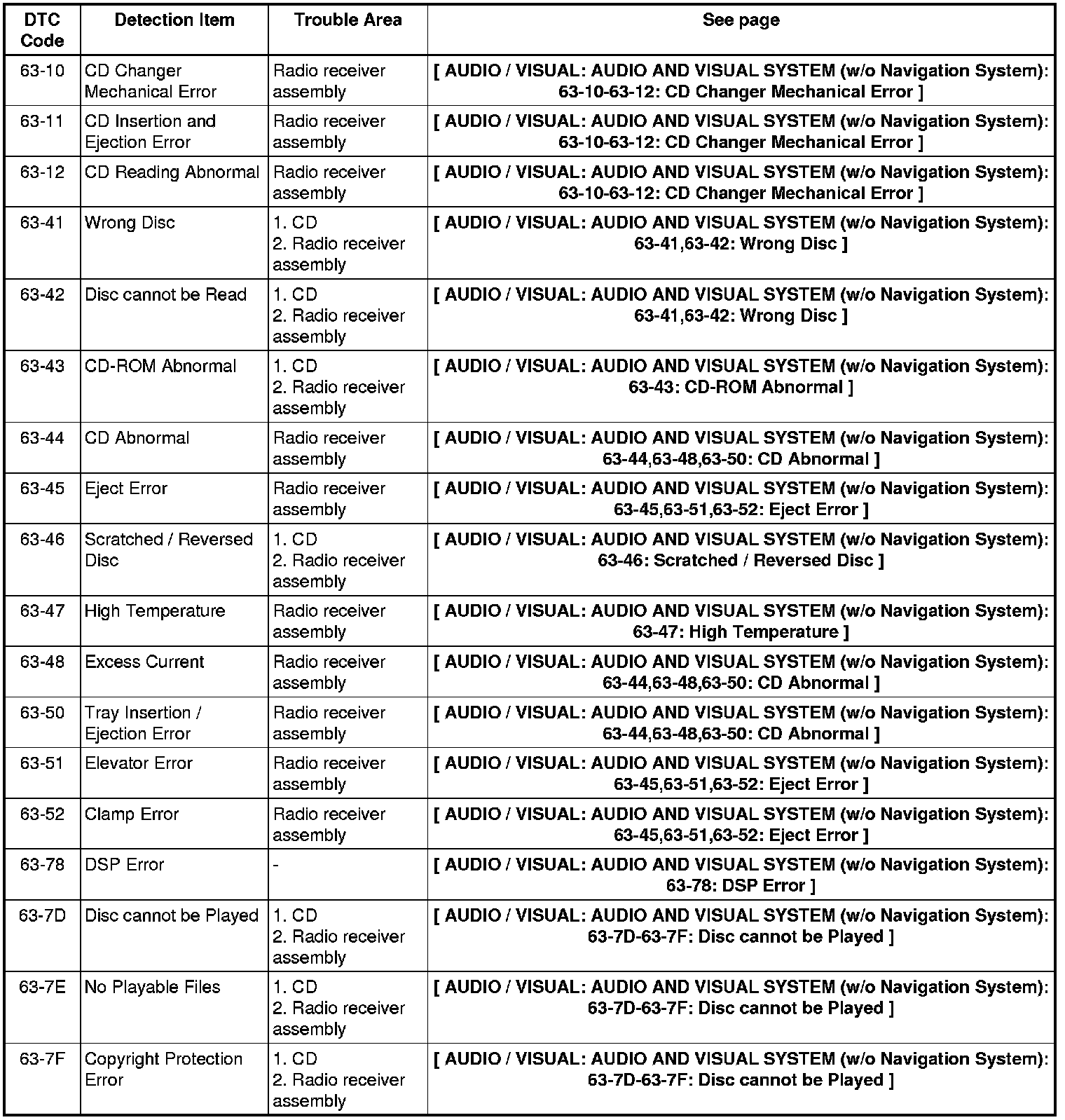

In-dash CD Changer
Speakers
XM Tuner
Multi-media Interface ECU
* *1: w/ Manual (SOS) Switch
