Audio and Visual System (w/ Navigation System)

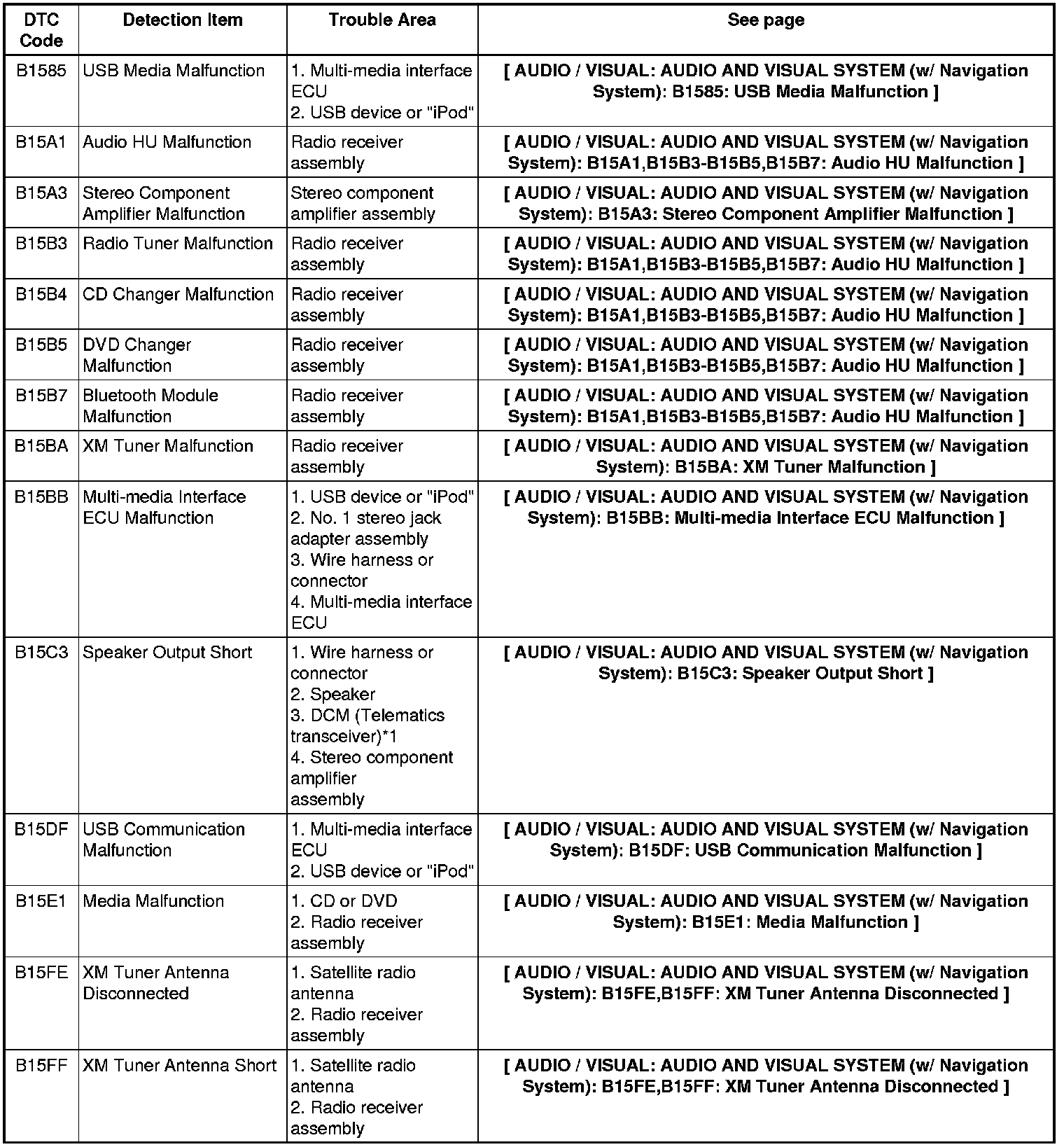

AUDIO / VISUAL: AUDIO AND VISUAL SYSTEM (w/ Navigation System): DIAGNOSTIC TROUBLE CODE CHART

NOTICE:
After replacing the radio receiver assembly of vehicles subscribed to pay-type satellite radio broadcasts, the XM radio ID registration is necessary. (w/ SDARS System)

Audio and Visual System





* *1: w/ Manual (SOS) Switch
