Parts Location: Illustration

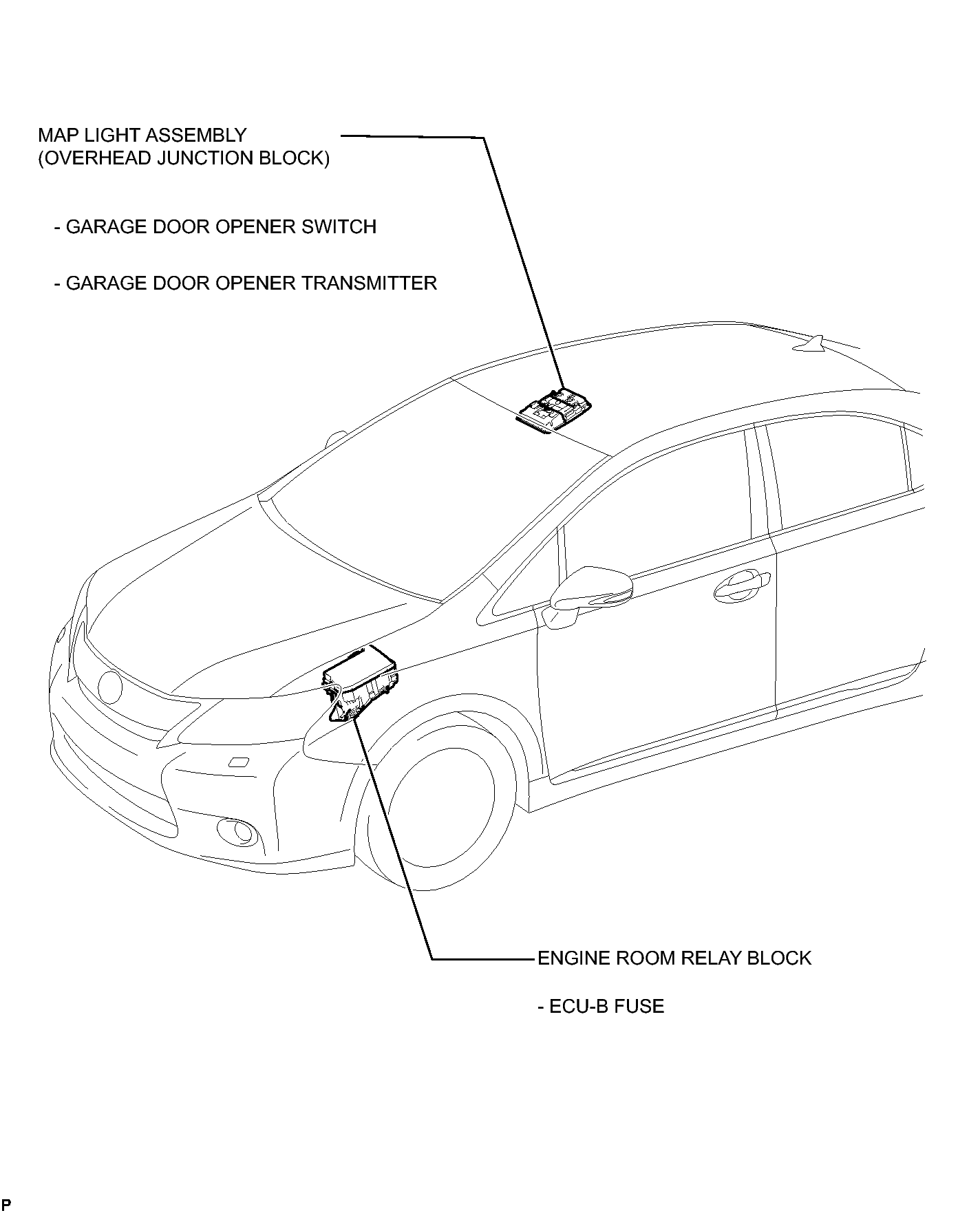

Fig 1: Identifying Garage Door Opener System Components Location (W/ Automatic High Beam System)
GTY268613Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
