Glass Hatch Opener System does not Operate: Wiring Diagram

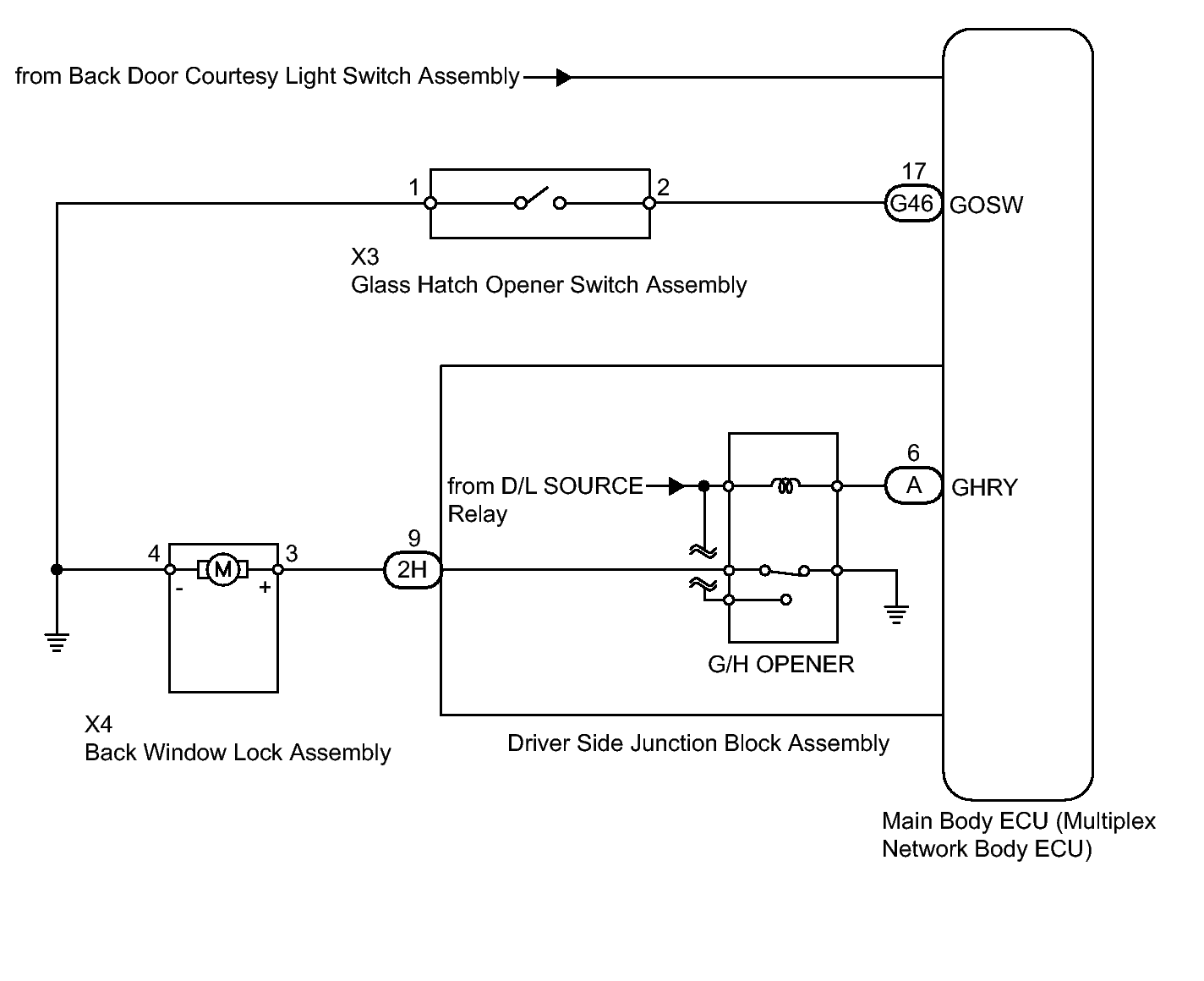

Fig 1: Identifying Glass Hatch Opener System Wiring Diagram

GTY276281

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
