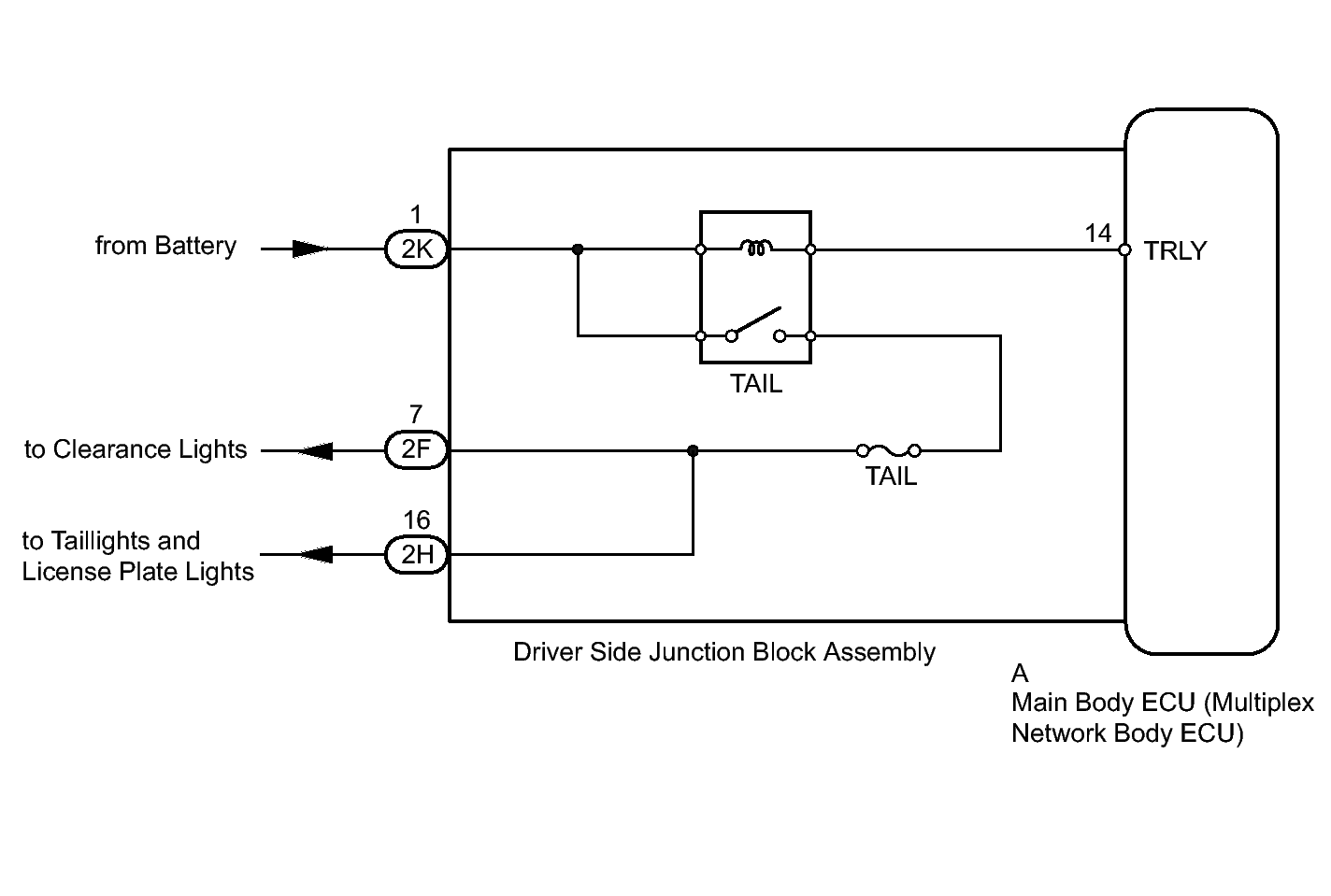

Home >> Lexus >> 2011 >> GX 460 >> Repair and Diagnosis >> Accessories & Equipment >> Exterior Lights >> Lighting System (Exterior) (Diagnostic Codes & Circuit Tests) >> Lighting System >> Circuit Tests >> Taillight Relay Circuit >> Wiring Diagram
