Headlight Dimmer Switch Circuit: Wiring Diagram

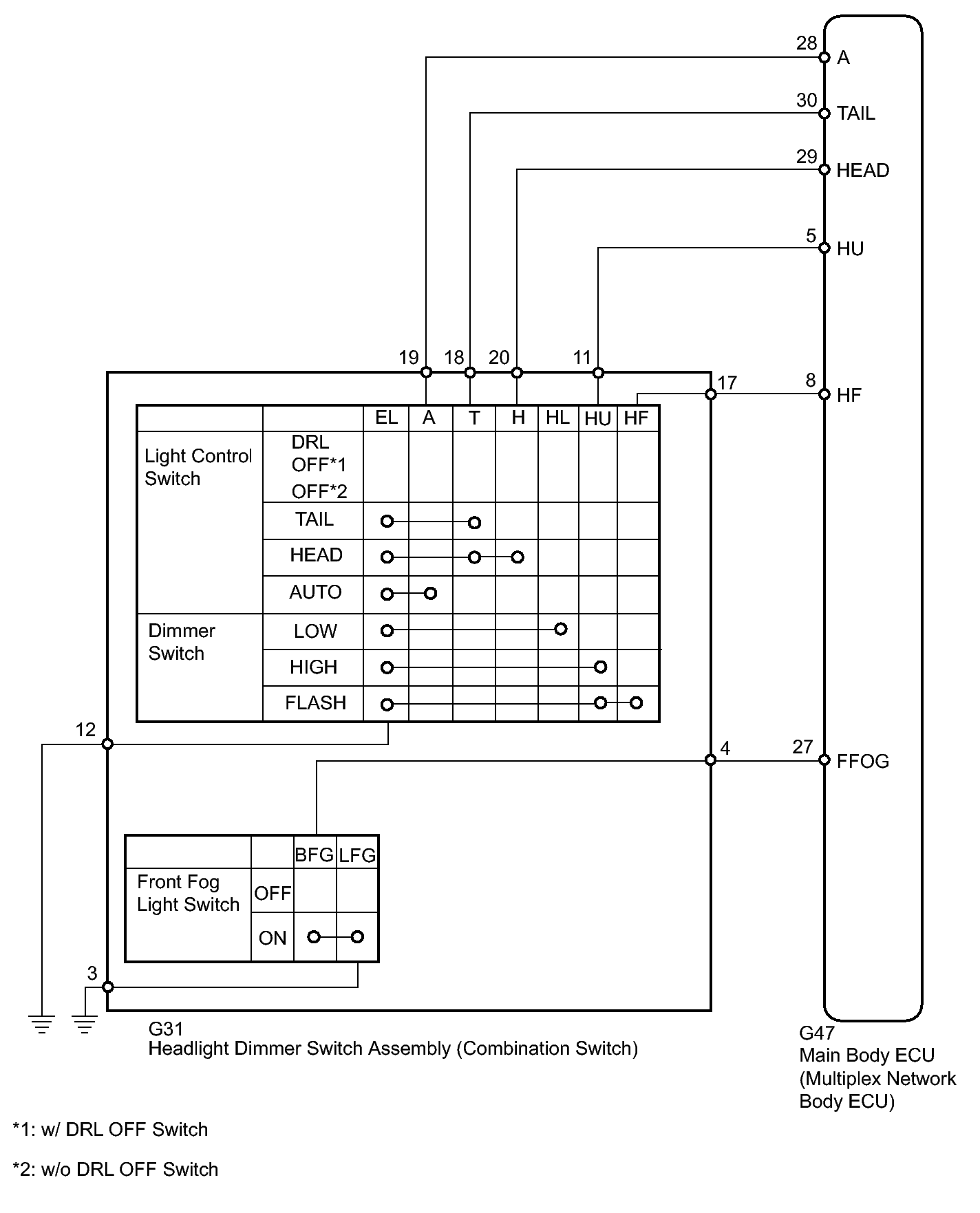

Fig 1: Identifying Headlight Dimmer Switch Circuit Wiring Diagram

GTY262839

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
