Inspection

WIPER / WASHER: REAR WIPER MOTOR: INSPECTION

1. INSPECT REAR WIPER MOTOR ASSEMBLY

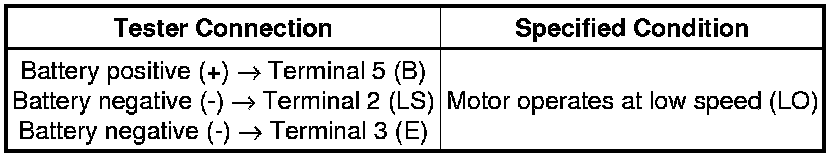

(a) Check the wiper continuous operation.





(1) Check that the rear wiper motor assembly operates when the battery voltage is applied between the terminals.

Specified Condition:





If the result is not as specified, replace the motor assembly.

Text in Illustration

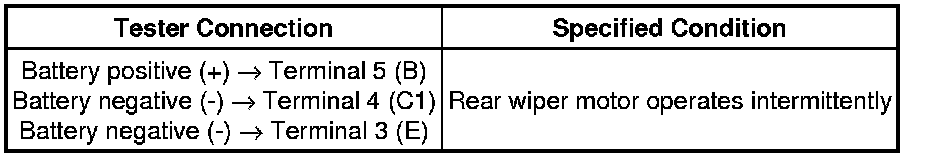

(b) Check the wiper intermittent operation.





(1) Check that the rear wiper motor assembly operates when the battery voltage is applied between the terminals.

Specified Condition:





If the result is not as specified, replace the motor assembly.

Text in Illustration
