Washer Nozzle (for Rear Side)

WIPER / WASHER: WASHER NOZZLE (for Rear Side): ON-VEHICLE INSPECTION

1. INSPECT REAR WASHER NOZZLE SUB-ASSEMBLY

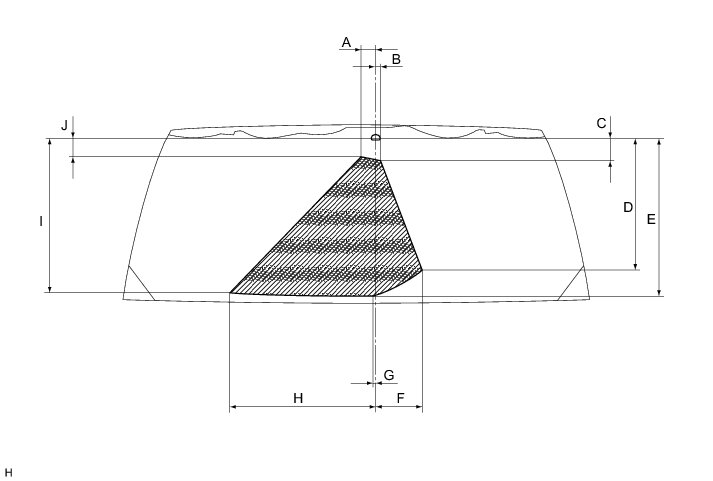

(a) With the engine running, check that the center stream of washer fluid sprays on the windshield within the hatched area shown in the illustration.

Standard:

Washer fluid hits the windshield in the area shown in the illustration.





Standard:





HINT
If the result is not as specified, replace the malfunctioning rear washer nozzle.
