Front Passenger Side Power Window Switch

WINDOW / GLASS: FRONT PASSENGER SIDE POWER WINDOW SWITCH: INSPECTION

1. INSPECT POWER WINDOW REGULATOR SWITCH ASSEMBLY

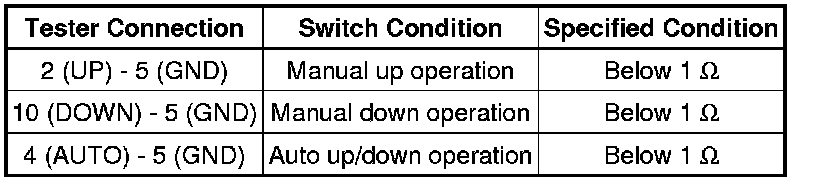

(a) Measure the resistance according to the value(s) in the table below.





Standard Resistance:





If the result is not as specified, replace the power window regulator switch assembly.

Text in Illustration





(b) Check that the LED illuminates.

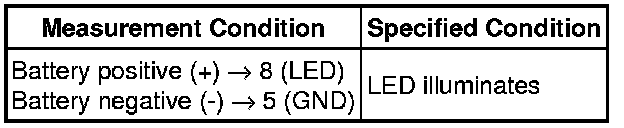

(1) Apply battery voltage to the power window regulator switch and check that the LED illuminates.

OK:





If the result is not as specified, replace the power window regulator switch assembly.

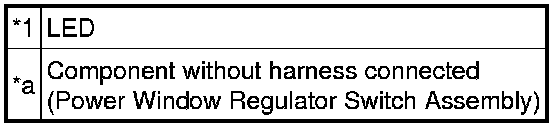

Text in Illustration
