Electrical Diagrams

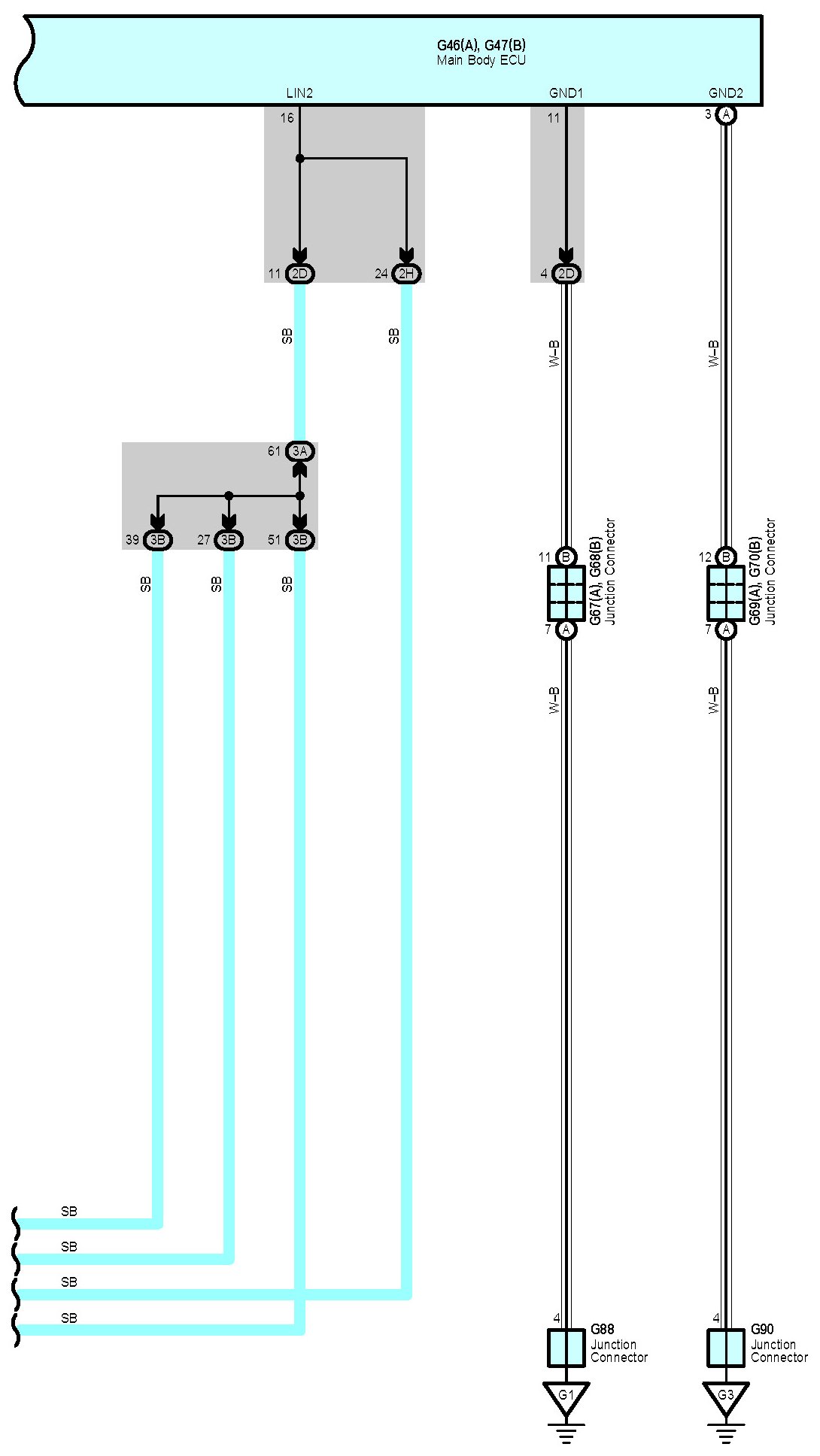

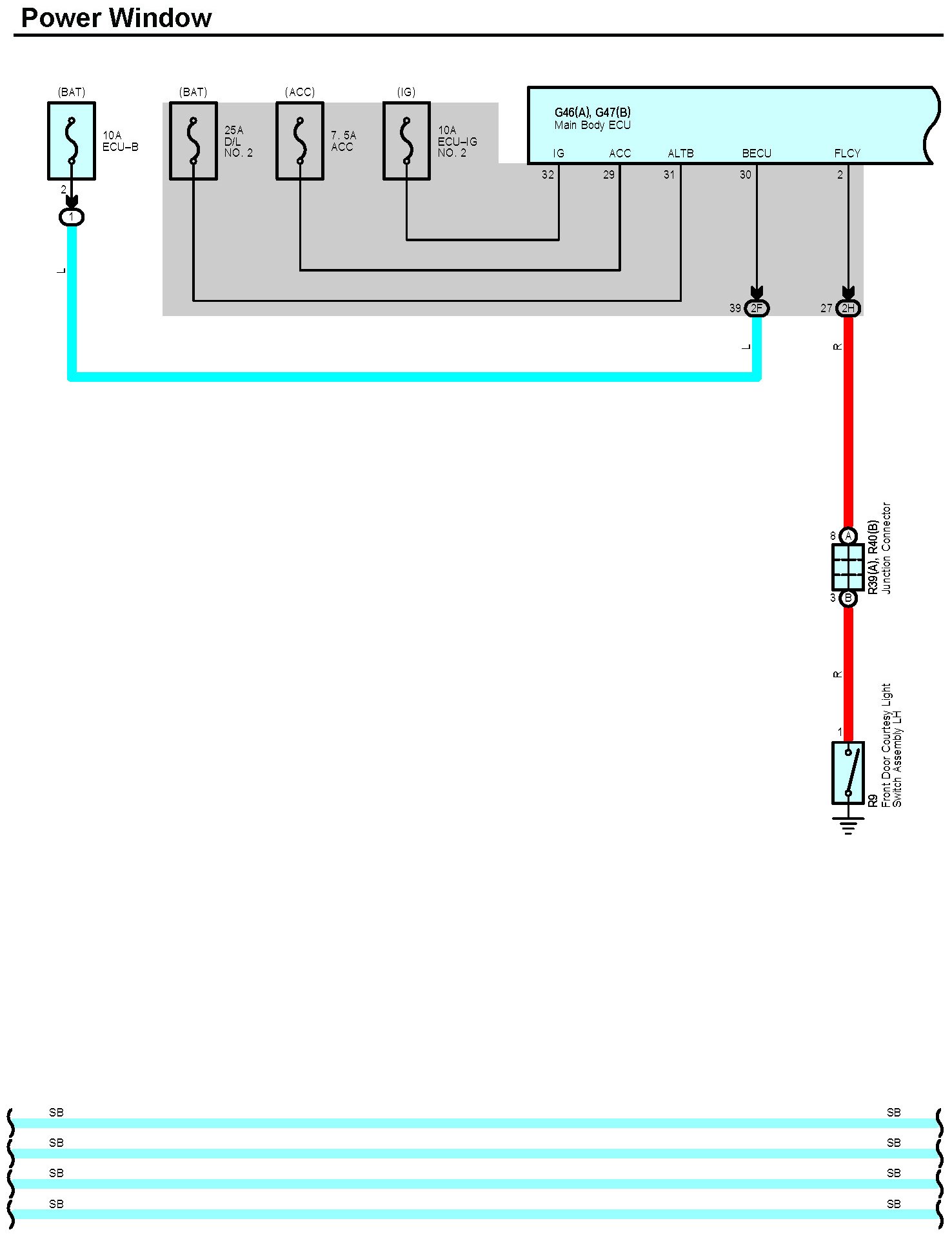

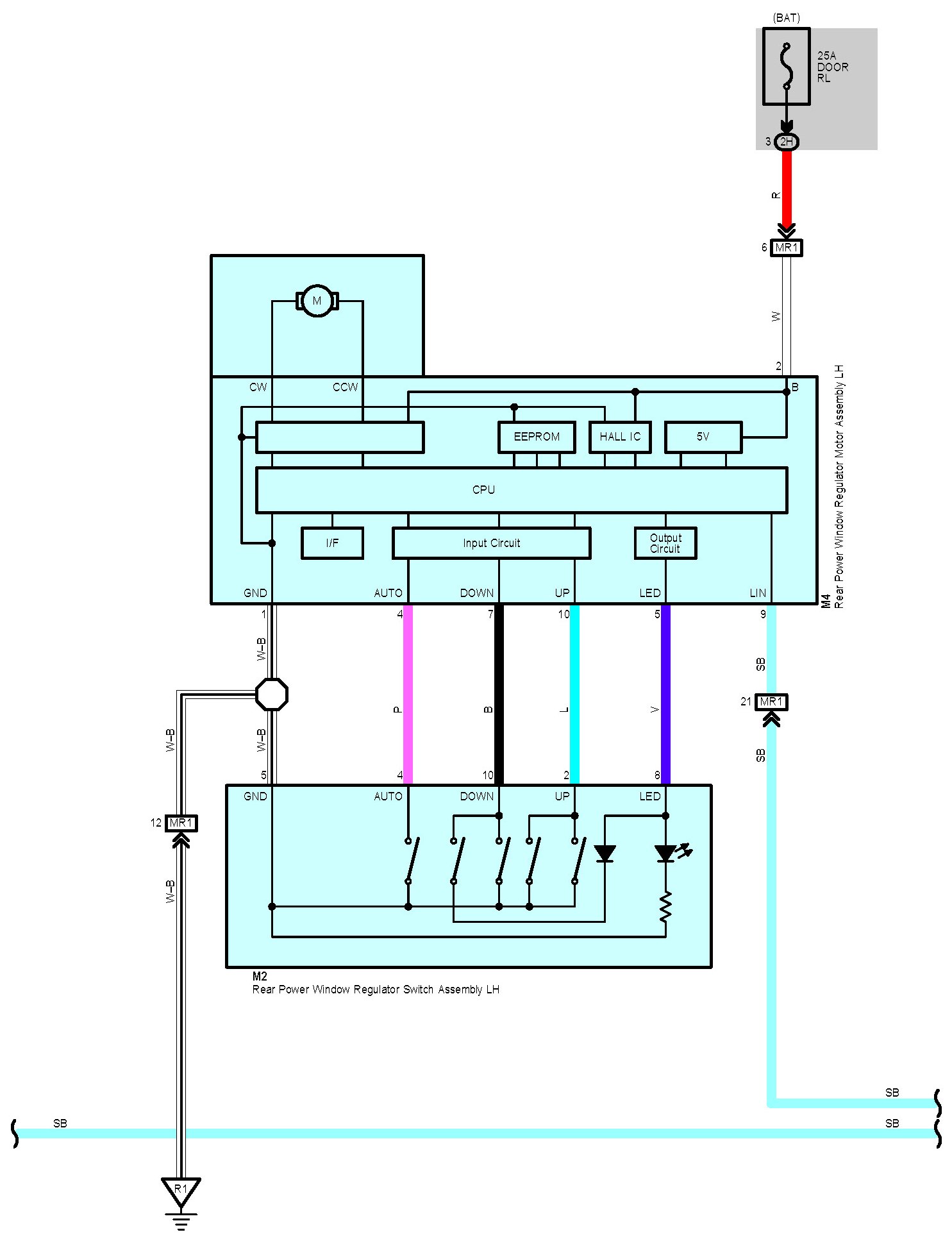

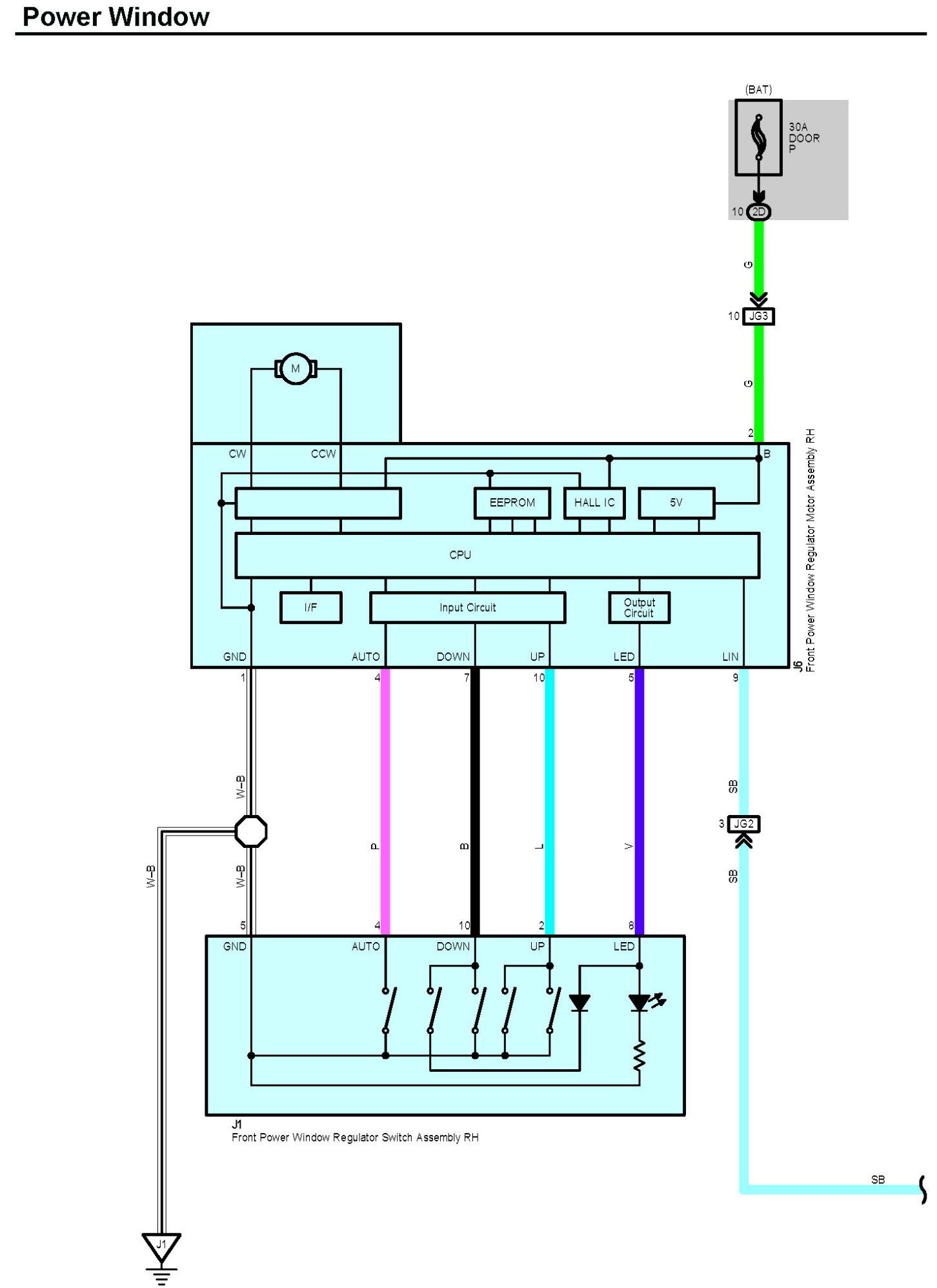

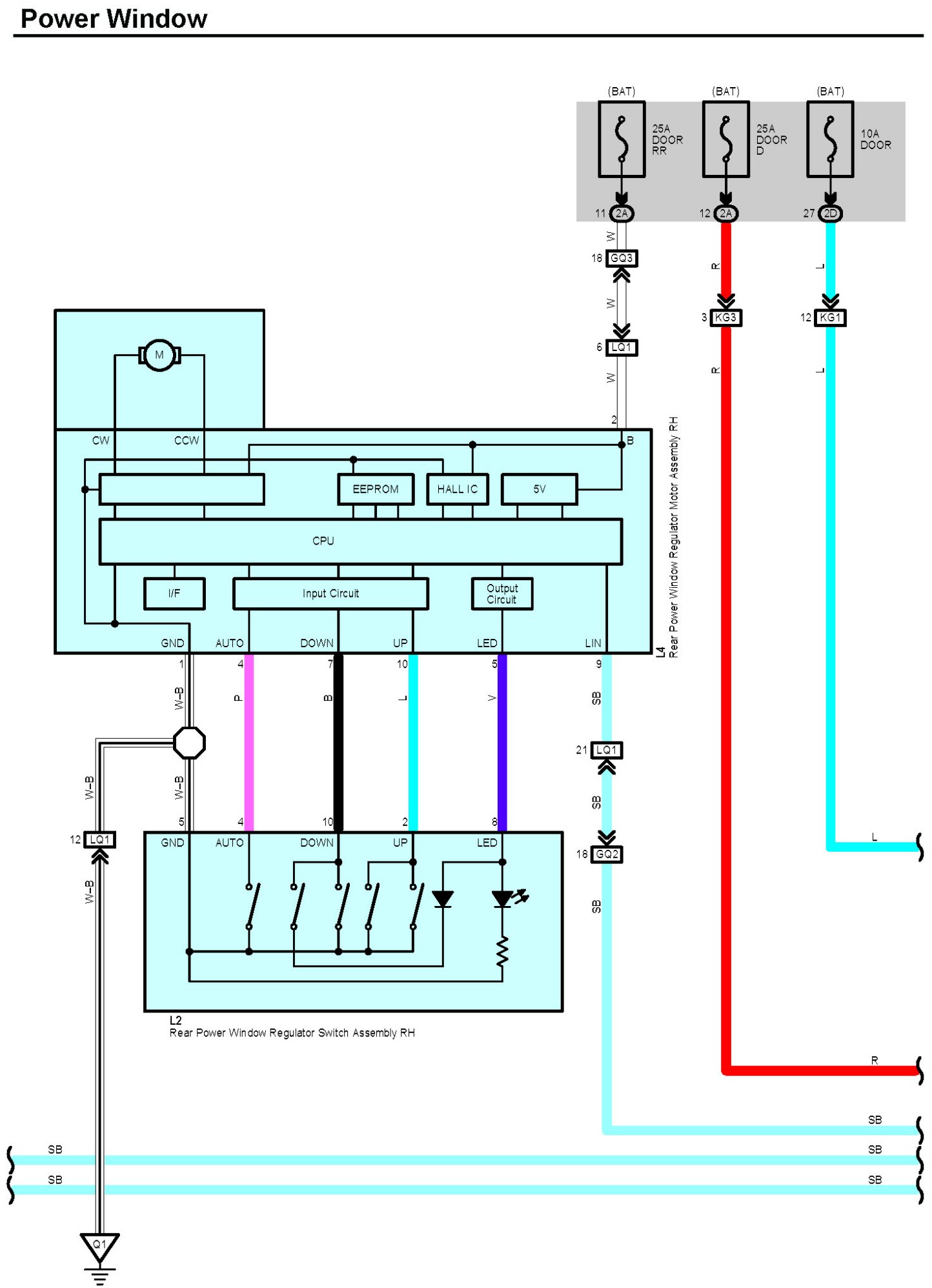

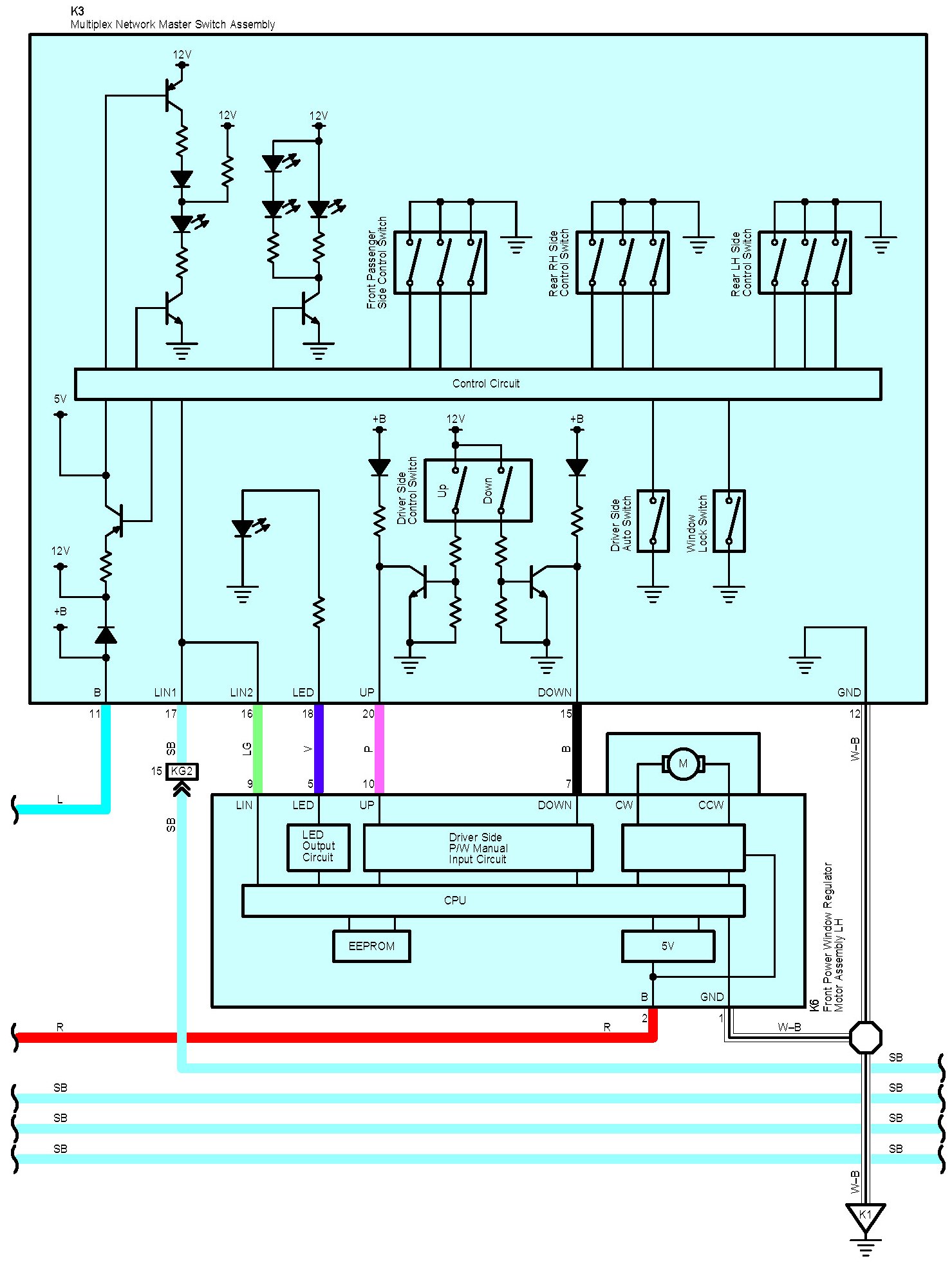

Power Window Part 1:

Power Window Part 2:

Power Window Part 3:

Power Window Part 4:

Power Window Part 5:

Power Window Part 6:

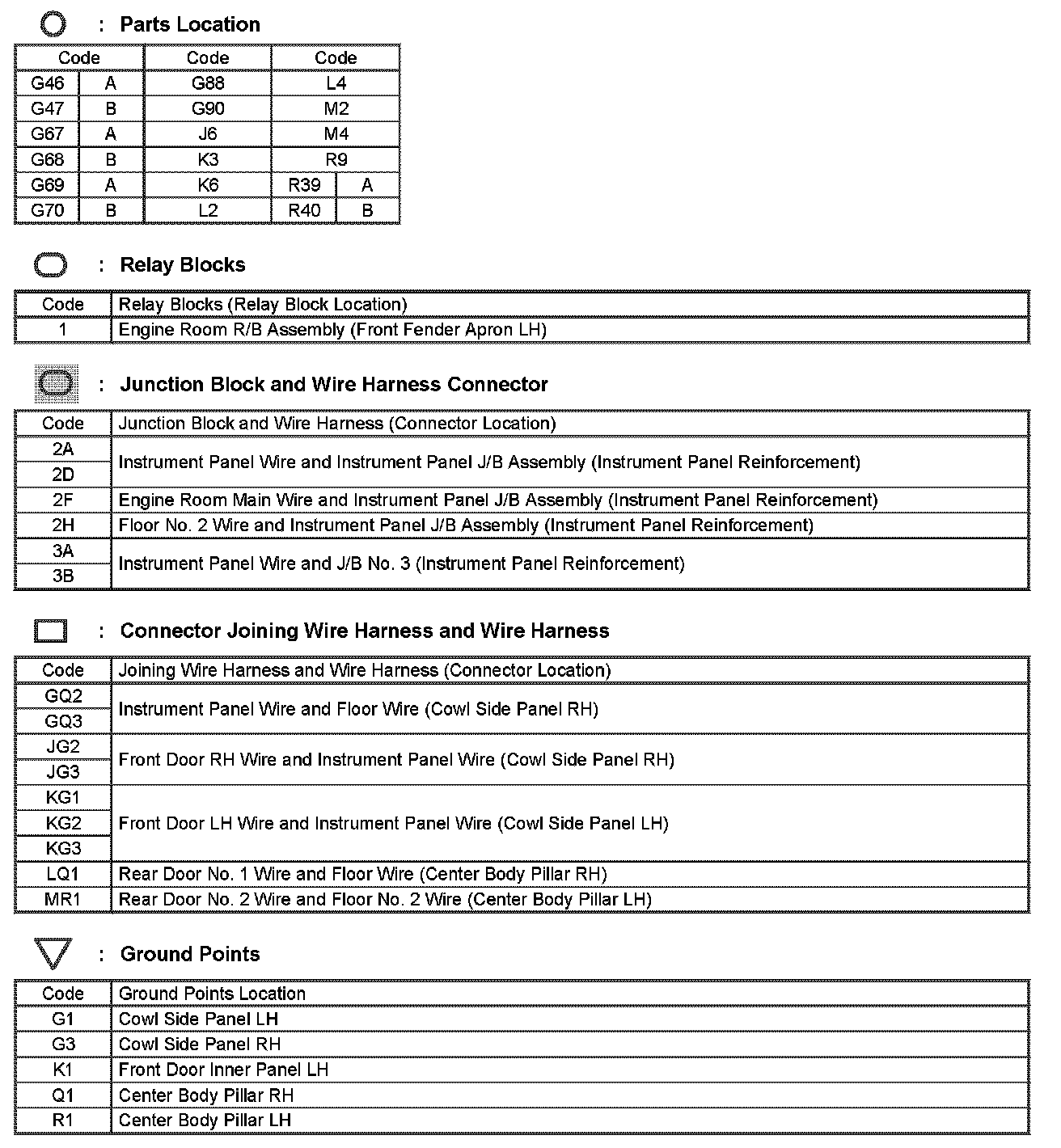

Locations: The locations of components, connectors, ground points, and splices referred to within these diagrams can be found at Vehicle Locations. Locations

Connector Views: Diagrams of the connectors referred to within these diagrams can be found at Connector Views by Connector Number. Connector Views By Connector Number
