Service Data





SPECIFICATIONS: VF4BM TRANSFER / 4WD / AWD: SERVICE DATA

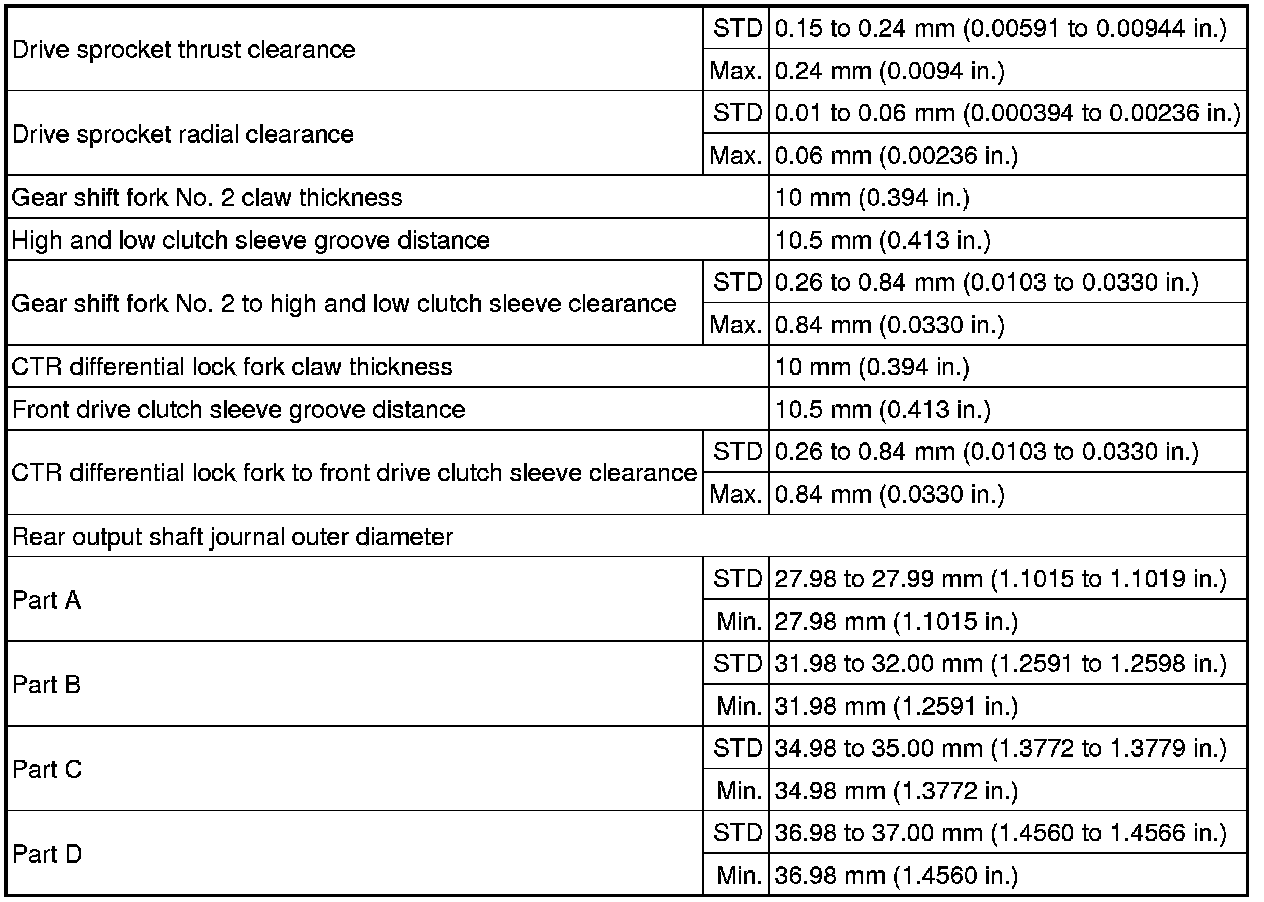

Output Shaft Rear

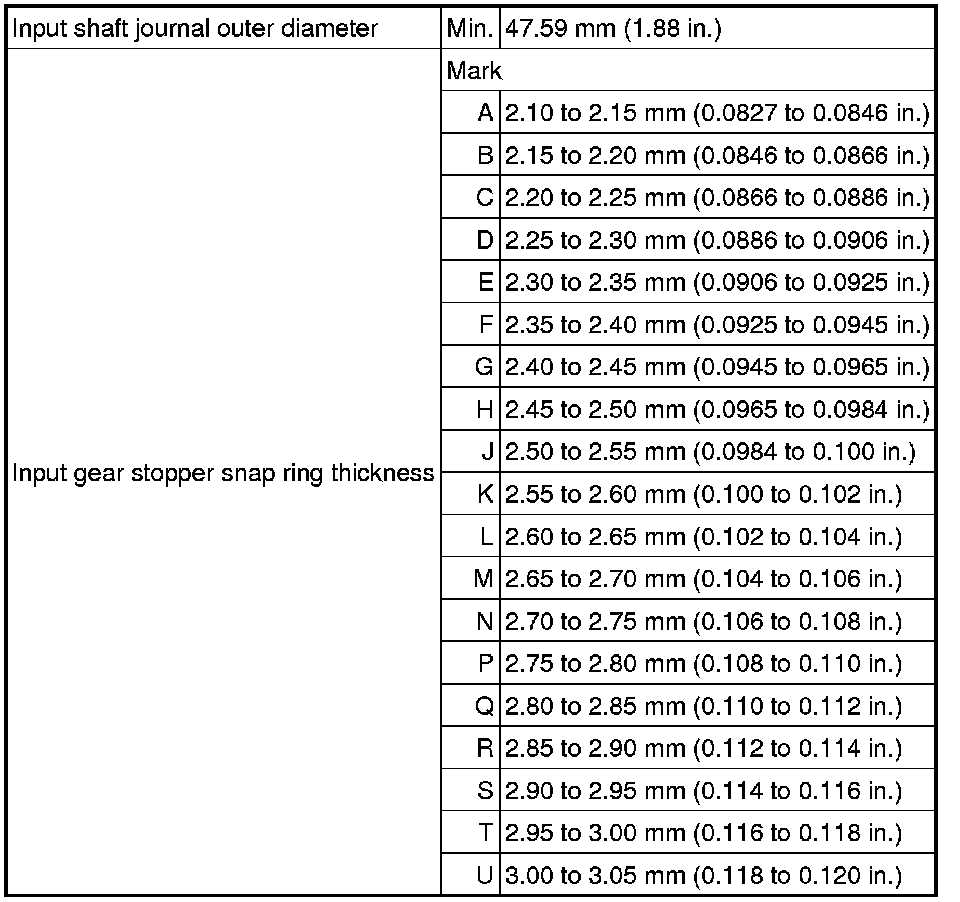

Input shaft

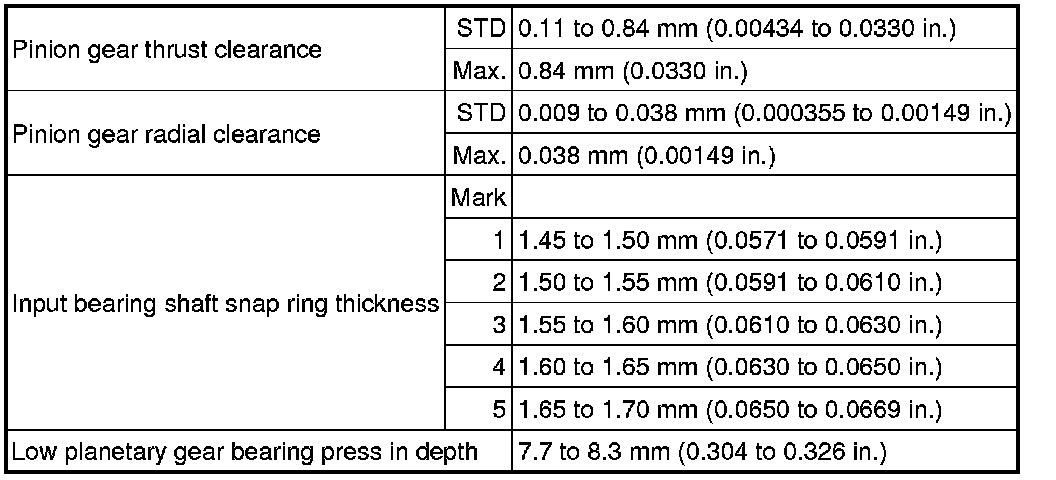

Planetary gear
