Service Data





SPECIFICATIONS: DRIVE SHAFT / PROPELLER SHAFT: SERVICE DATA

Front Drive Shaft Assembly

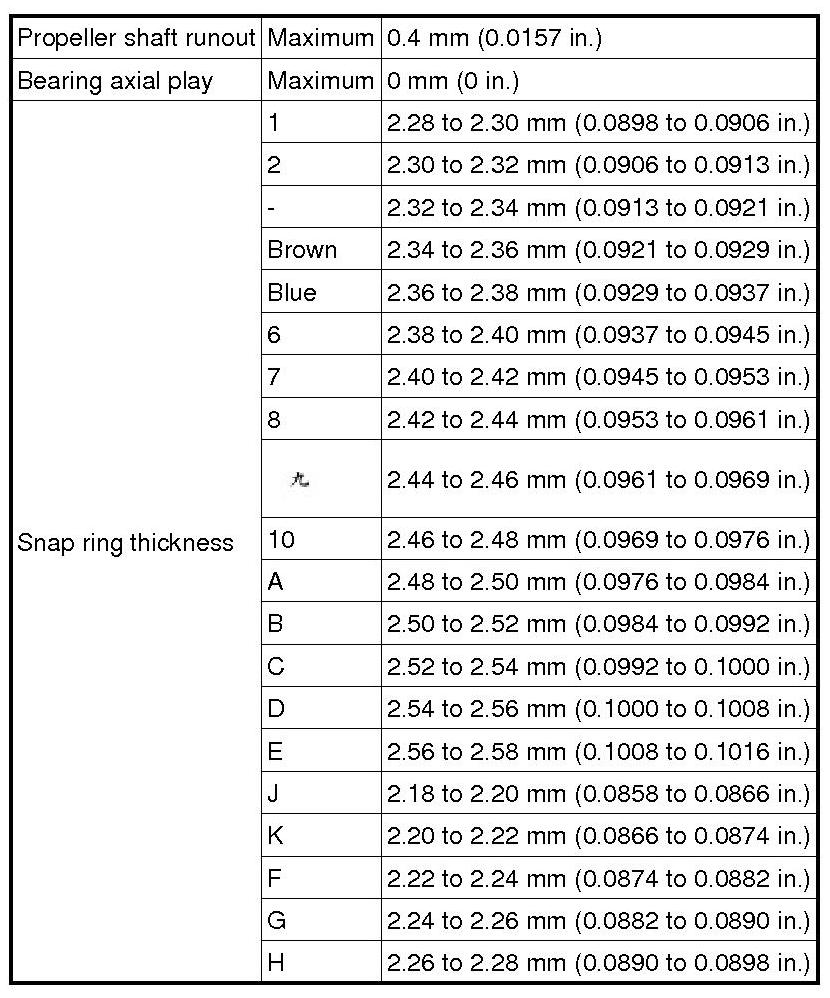

Front Propeller Shaft

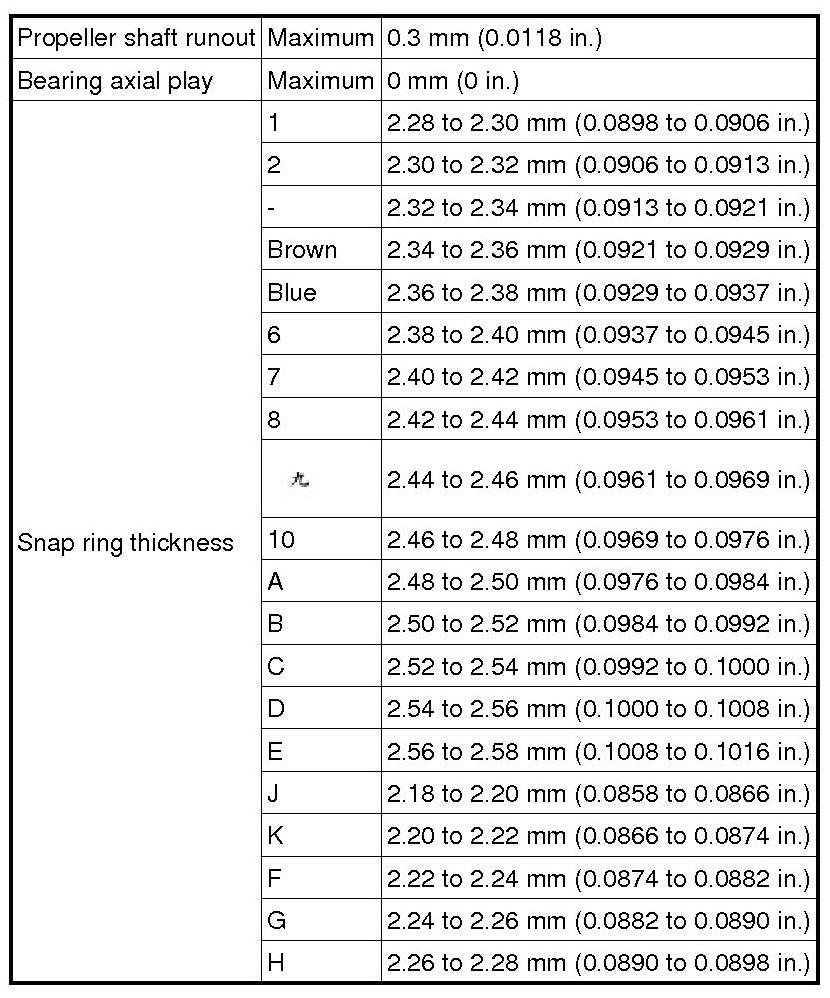

Rear Propeller Shaft Assembly
