Home >> Lexus >> 2011 >> GX 460 V8-4.6L (1UR-FE) >> Repair and Diagnosis >> Transmission and Drivetrain >> Drive/Propeller Shafts, Bearings and Joints >> Drive/Propeller Shaft >> Service and Repair >> Removal and Replacement >> Propeller Shaft Assembly >> Components

Components

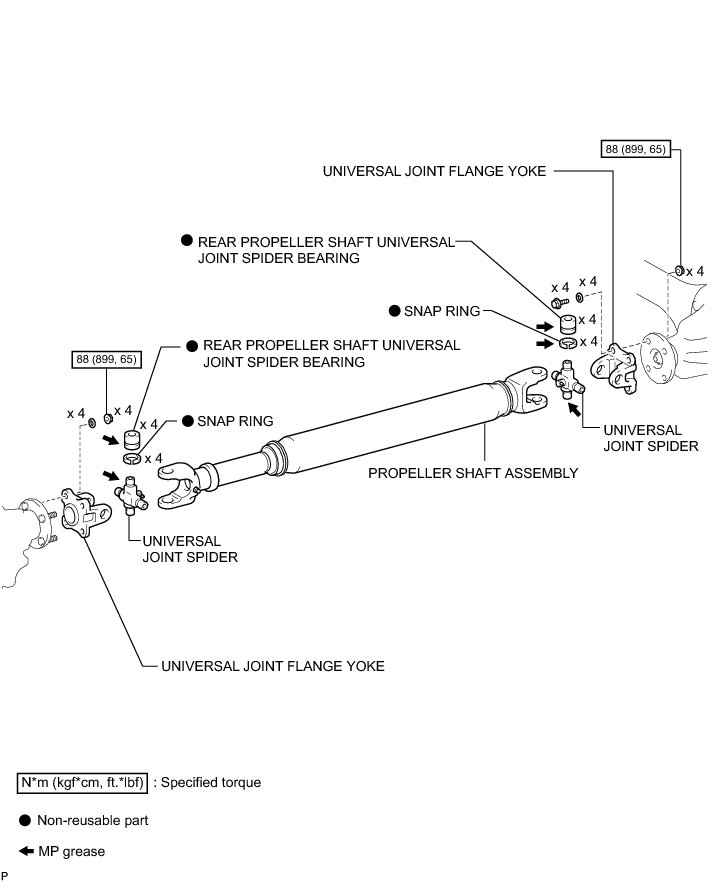

DRIVE SHAFT / PROPELLER SHAFT: PROPELLER SHAFT ASSEMBLY: COMPONENTS
