Front Propeller Shaft Assembly
>>
Components
Components

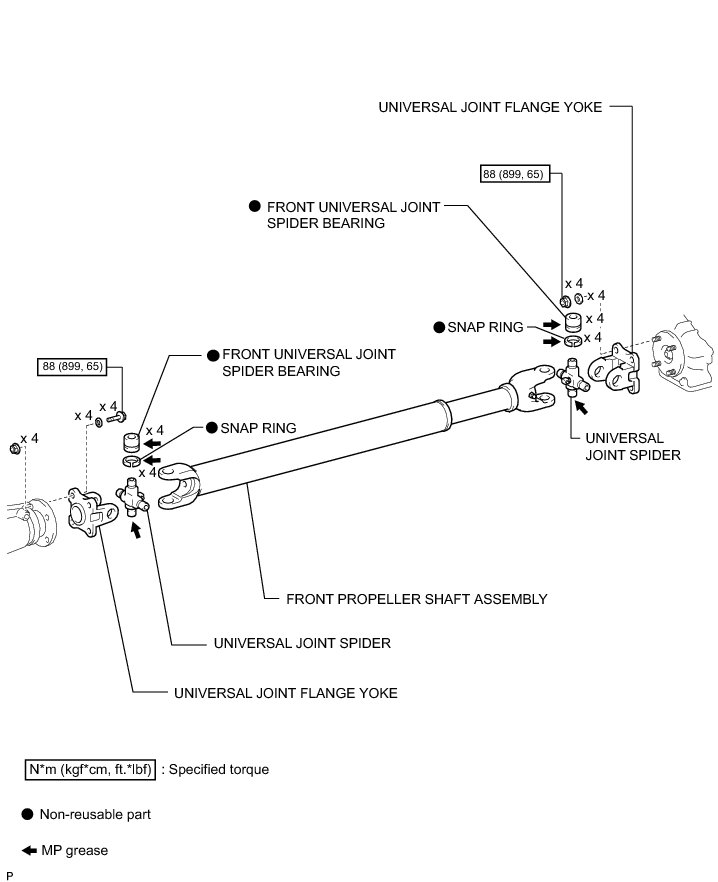

DRIVE SHAFT / PROPELLER SHAFT: FRONT PROPELLER SHAFT ASSEMBLY: COMPONENTS
