Home >> Lexus >> 2011 >> GX 460 V8-4.6L (1UR-FE) >> Repair and Diagnosis >> Transmission and Drivetrain >> Drive Axles, Bearings and Joints >> Specifications >> Fluid Type Specifications

Fluid Type Specifications





PREPARATION: AXLE AND DIFFERENTIAL: LUBRICANT

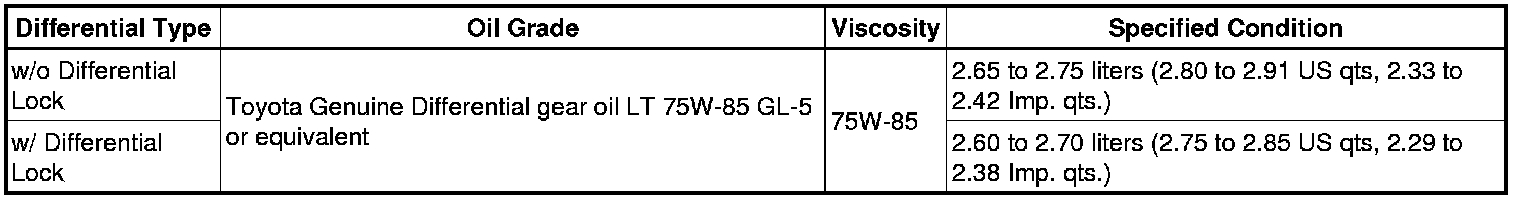

Front Differential Capacity

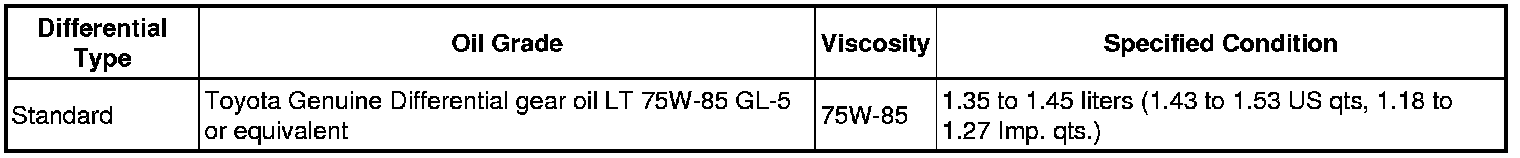

Rear Differential Capacity
