Reassembly
DRIVE SHAFT / PROPELLER SHAFT: FRONT DRIVE SHAFT ASSEMBLY: REASSEMBLY
1. INSTALL FRONT AXLE HUB LH DUST SEAL
(a) Using a brass bar and hammer, install a new dust seal.
NOTICE:
Do not damage the dust seal.
2. INSTALL FRONT DRIVE SHAFT DUST COVER
(a) Using SST and a press, install a new dust cover.
SST : 09527-10011

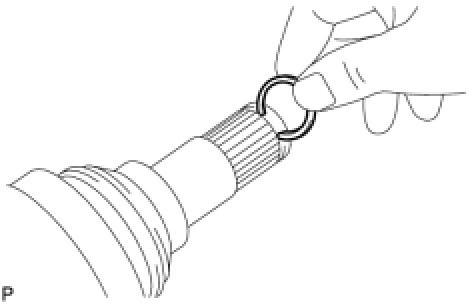

3. INSTALL SHAFT SNAP RING
(a) Install a new shaft snap ring.
4. INSTALL OUTBOARD JOINT BOOT
HINT
Before installing the boot, wrap vinyl tape around the spline of the shaft to prevent damage to the boot.
Text in Illustration
(a) Temporarily install a new outboard joint boot with 2 new clamps to the outboard joint.
(b) Pack the outboard joint and boot with grease from the boot kit.
Standard grease capacity:
266 to 276 g (9.4 to 9.7 oz.)
5. INSTALL FRONT NO. 2 AXLE OUTBOARD JOINT BOOT CLAMP
(a) Hold the drive shaft lightly in a vise between aluminum plates.
NOTICE:
Do not overtighten the vise.
(b) Place SST onto the front No. 2 axle outboard joint boot clamp.
SST : 09521-24010
(c) Tighten SST so that the No. 2 front axle outboard joint boot clamp is pinched.
Text in Illustration
NOTICE:
Do not overtighten SST.
(d) Using SST, measure the clearance of the No. 2 front axle out board joint boot clamp.
SST : 09240-00020
Standard clearance:
2.1 mm (0.0827 in.) or less
NOTICE:
If the measured value is more than the specified value, retighten the clamp.
6. INSTALL FRONT NO. 1 AXLE OUTBOARD JOINT BOOT CLAMP
(a) Hold the drive shaft lightly in a vise between aluminum plates.
NOTICE:
Do not overtighten the vise.
(b) Secure the outboard joint boot clamp to the boot.
Place SST onto the outboard joint boot clamp.
SST : 09521-24010
(c) Tighten SST so that the front axle outboard joint boot clamp is pinched.
Text in Illustration
NOTICE:
Do not overtighten SST.
Using SST, measure the clearance of the front axle outboard joint boot clamp.
SST : 09240-00020
Standard clearance:
1.3 mm (0.0512 in.) or less
NOTICE:
If the measured value is more than the specified value, retighten the clamp.

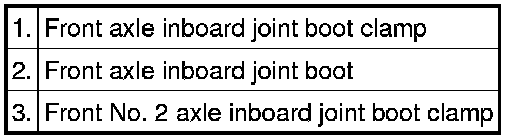

7. INSTALL INBOARD JOINT BOOT
(a) Temporarily install a new inboard joint boot to the outboard joint.
8. INSTALL FRONT AXLE INBOARD JOINT ASSEMBLY
(a) Install new parts to the outboard joint in the following order.
(b) Secure the outboard joint shaft in a vise between aluminum plates.
NOTICE:
Do not overtighten the vise.
Align the matchmarks and install the tripod joint to the outboard joint.
Text in Illustration
NOTICE:
Position tripod so that the beveled side of the tripod faces toward the inboard joint.
(c) Align the matchmarks and install the tripod to the inboard joint.
(d) Using a brass bar and hammer, tap the tripod onto the outboard joint.
NOTICE:
* Do not hit the roller portion.
* Keep the tripod joint free of foreign matter.
Using a snap ring expander, install a new snap ring.
(e) Pack the inboard joint assembly and boot with grease from the boot kit.
Standard grease capacity:
239 to 249 g (8.4 to 8.8 oz.)
Align the matchmarks and install the inboard joint onto the outboard joint.
Text in Illustration
9. INSTALL FRONT NO. 1 AXLE INBOARD JOINT BOOT CLAMP
(a) Hold the drive shaft lightly in a vise between aluminum plates.
NOTICE:
Do not overtighten the vise.
(b) Secure the inboard joint boot clamp to the boot.
(c) Place SST onto the inboard joint boot clamp.
SST : 09521-24010
(d) Tighten SST so that the front axle inboard joint boot clamp is pinched.
Text in Illustration
NOTICE:
Do not overtighten SST.
(e) Using SST, measure the clearance of the front axle inboard joint boot clamp.
SST : 09240-00020
Standard clearance:
1.3 mm (0.0512 in.) or less
NOTICE:
If the measured value is more than the specified value, retighten the clamp.
10. INSTALL FRONT NO. 2 AXLE INBOARD JOINT BOOT CLAMP
(a) Hold the inboard joint shaft assembly in a vise between aluminum plates.
NOTICE:
Do not overtighten the vise.
(b) Place SST onto the No. 2 front axle inboard joint boot clamp.
SST : 09521-24010
(c) Tighten SST so that the No. 2 front axle inboard joint boot clamp is pinched.
Text in Illustration
NOTICE:
Do not overtighten SST.
Using SST, measure the clearance of the No. 2 front axle inboard joint boot clamp.
SST : 09240-00020
Standard clearance:
2.1 mm (0.0827 in.) or less
NOTICE:
If the measured value is more than the specified value, retighten the clamp.
