Replacement

AXLE AND DIFFERENTIAL: FRONT DIFFERENTIAL SIDE GEAR SHAFT OIL SEAL: REPLACEMENT

HINT
* Use the same procedure for the RH and LH sides.
* The procedure listed below is for the LH side.

1. REMOVE FRONT DRIVE SHAFT ASSEMBLY LH

(a) Remove the front drive shaft assembly LH Removal.

2. REMOVE FRONT DRIVE SHAFT ASSEMBLY RH

HINT
Use the same procedure described for the LH side.

3. REMOVE DIFFERENTIAL SIDE GEAR SHAFT OIL SEAL

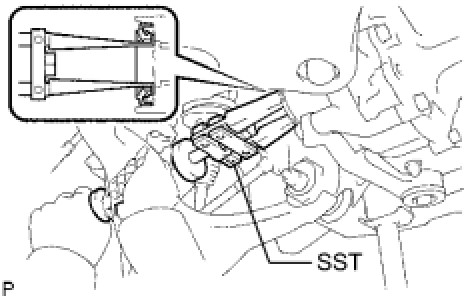

(a) Using SST, tap out the 2 oil seals.

SST : 09308-10010

4. INSTALL DIFFERENTIAL SIDE GEAR SHAFT OIL SEAL

(a) Apply MP grease to the lip of 2 new oil seals.

(b) Using SST and a hammer, tap in the 2 oil seals.

SST : 09550-00032

SST : 09950-70010

09951-07100

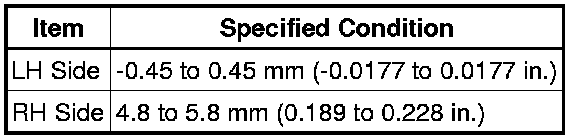

Standard Oil Seal Depth:





Text in Illustration





NOTICE:
Make sure the LH and RH oil seals are installed in the proper locations.

5. INSTALL FRONT DRIVE SHAFT ASSEMBLY LH

(a) Install the front drive shaft assembly LH Installation.

6. INSTALL FRONT DRIVE SHAFT ASSEMBLY RH

HINT
Use the same procedure described for the LH side.
