Wiring Harness: Testing and Inspection

A760F AUTOMATIC TRANSMISSION / TRANSAXLE: TRANSMISSION WIRE: INSPECTION

1. INSPECT TRANSMISSION WIRE (ATF TEMPERATURE SENSOR)





(a) Measure the resistance according to the value(s) in the table below.

HINT
If the resistance is out of the specified range at any of the ATF temperatures shown in the table below, the driveability of the vehicle may decrease.

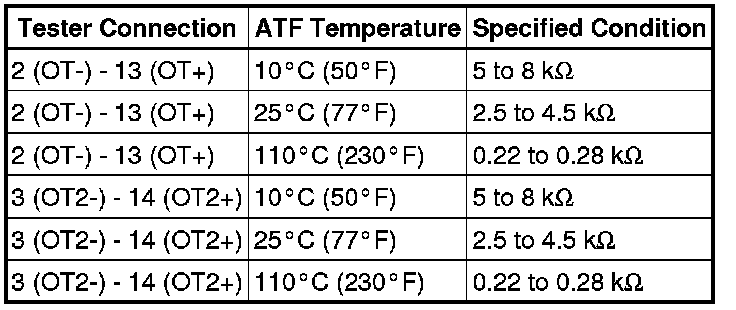

Standard Resistance:





Text in Illustration





If the result is not as specified, replace the transmission wire.
