Air Suspension System
SUSPENSION CONTROL: AIR SUSPENSION SYSTEM: TERMINALS OF ECU

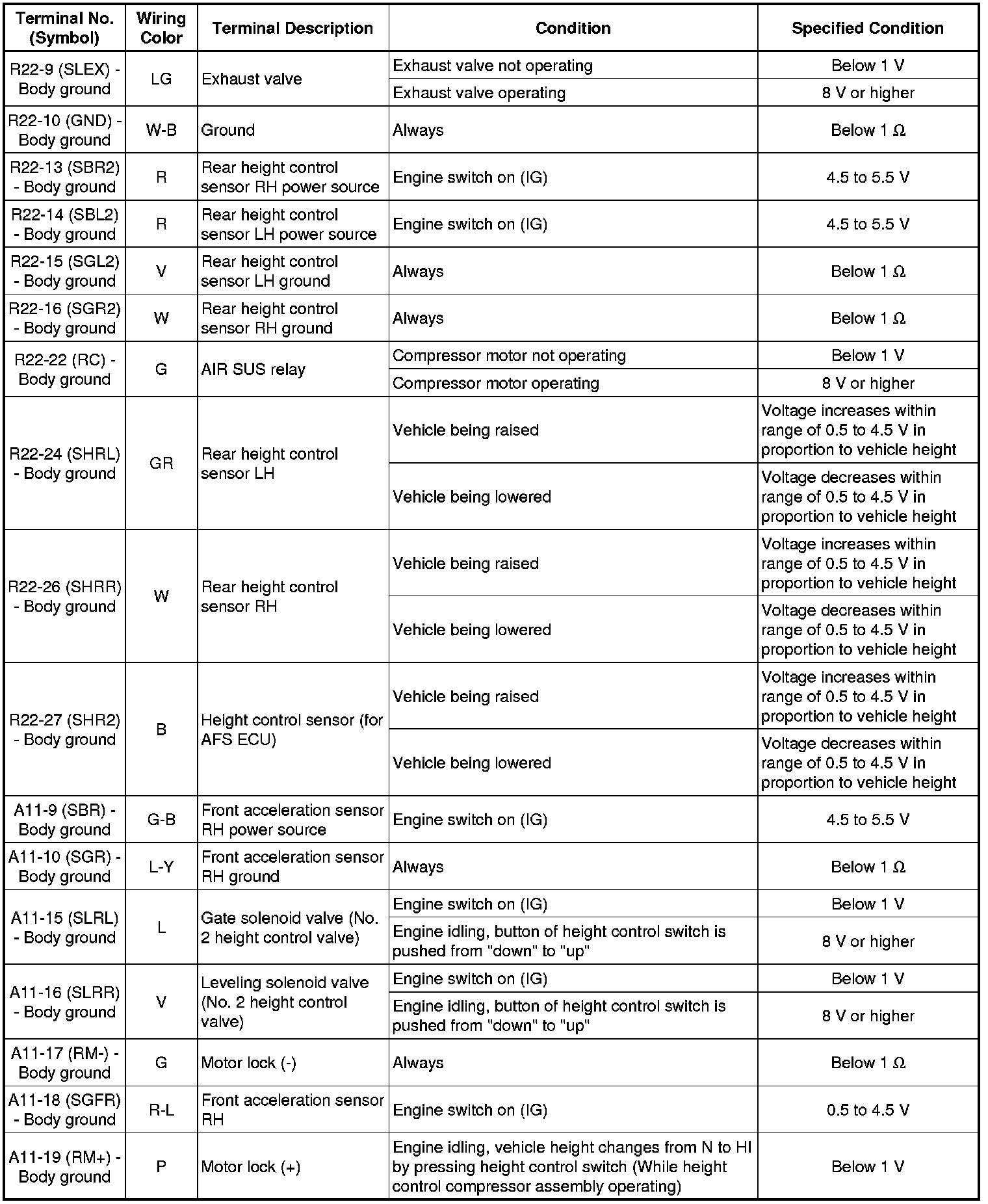

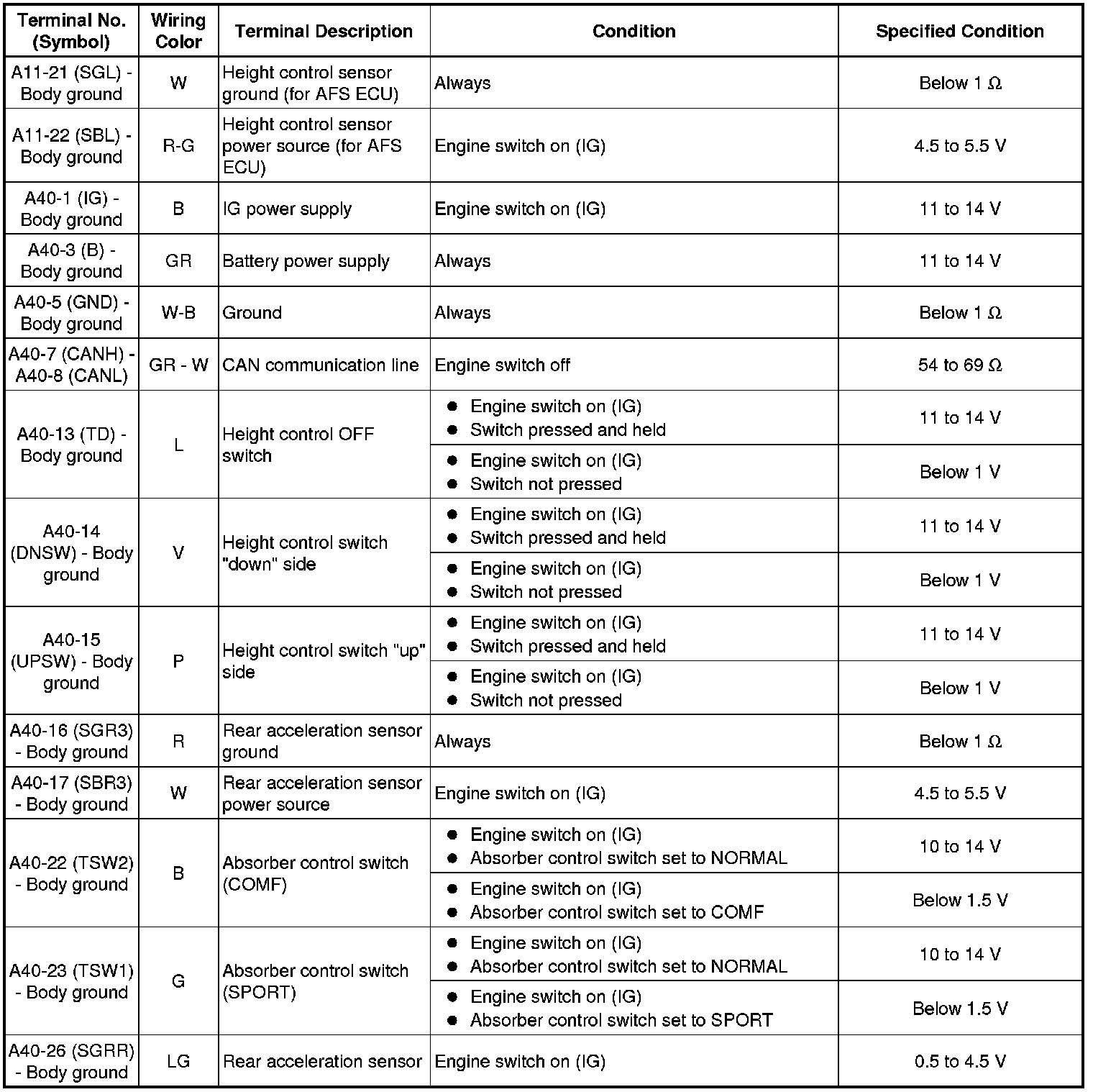

1. CHECK SUSPENSION CONTROL ECU
HINT
* Inspect the connectors from the back side while the connectors are connected.
* Check the operation of a particular valve by listening for an operating sound or by using the Data List.

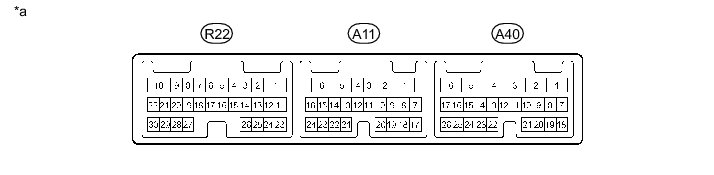

Text in Illustration
