Fail-Safe Chart





SUSPENSION CONTROL: KINETIC DYNAMIC SUSPENSION SYSTEM: FAIL-SAFE CHART

1. FAIL-SAFE FUNCTION

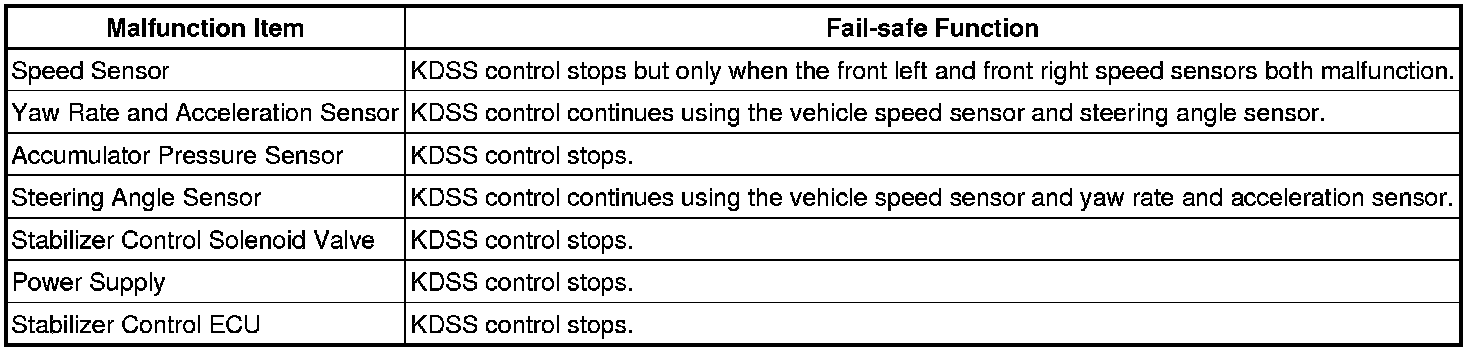

(a) If the stabilizer control ECU detects a malfunction, the fail-safe functions shown in the table below operate.
