Fail-Safe Chart





SUSPENSION CONTROL: AIR SUSPENSION SYSTEM: FAIL-SAFE CHART

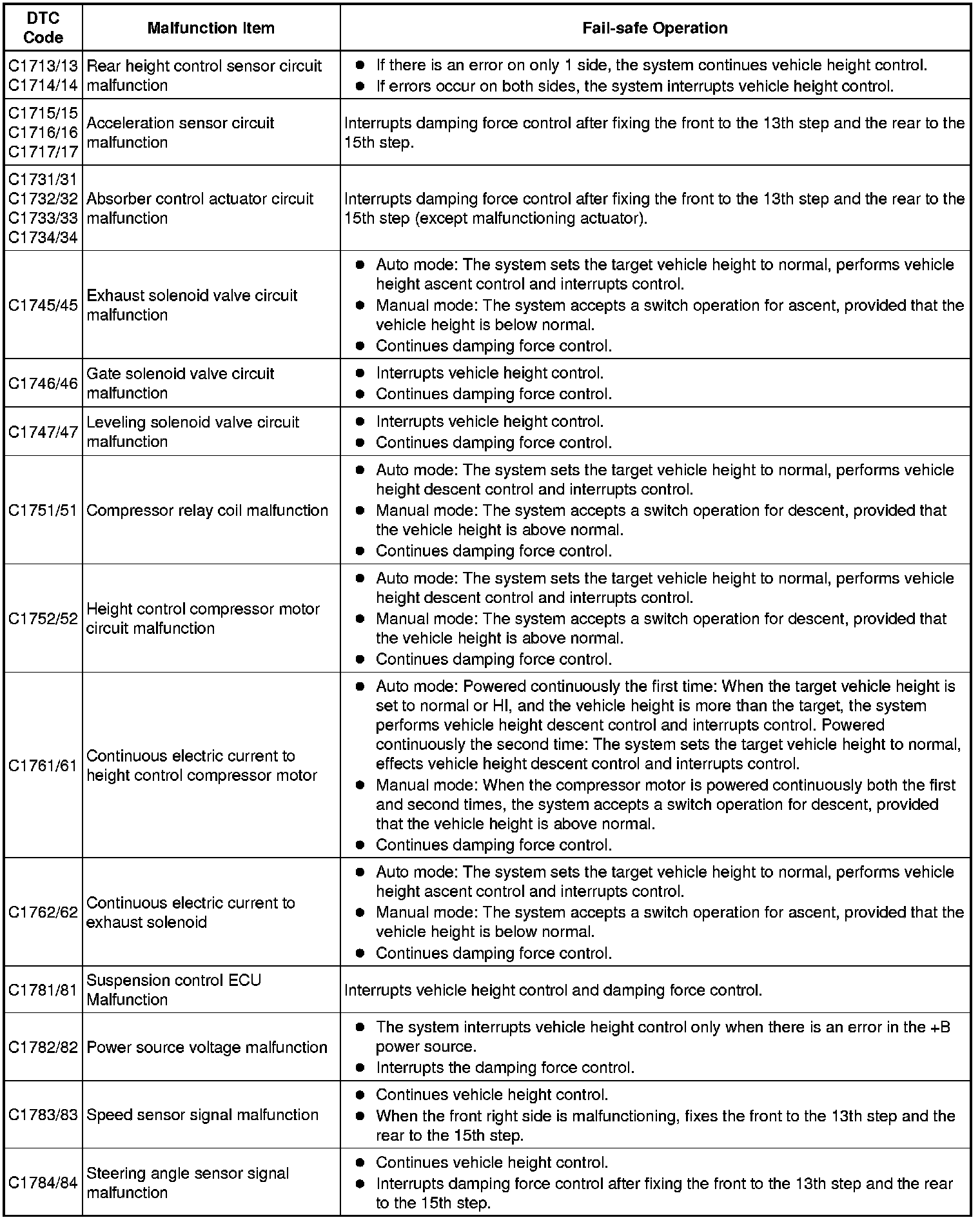

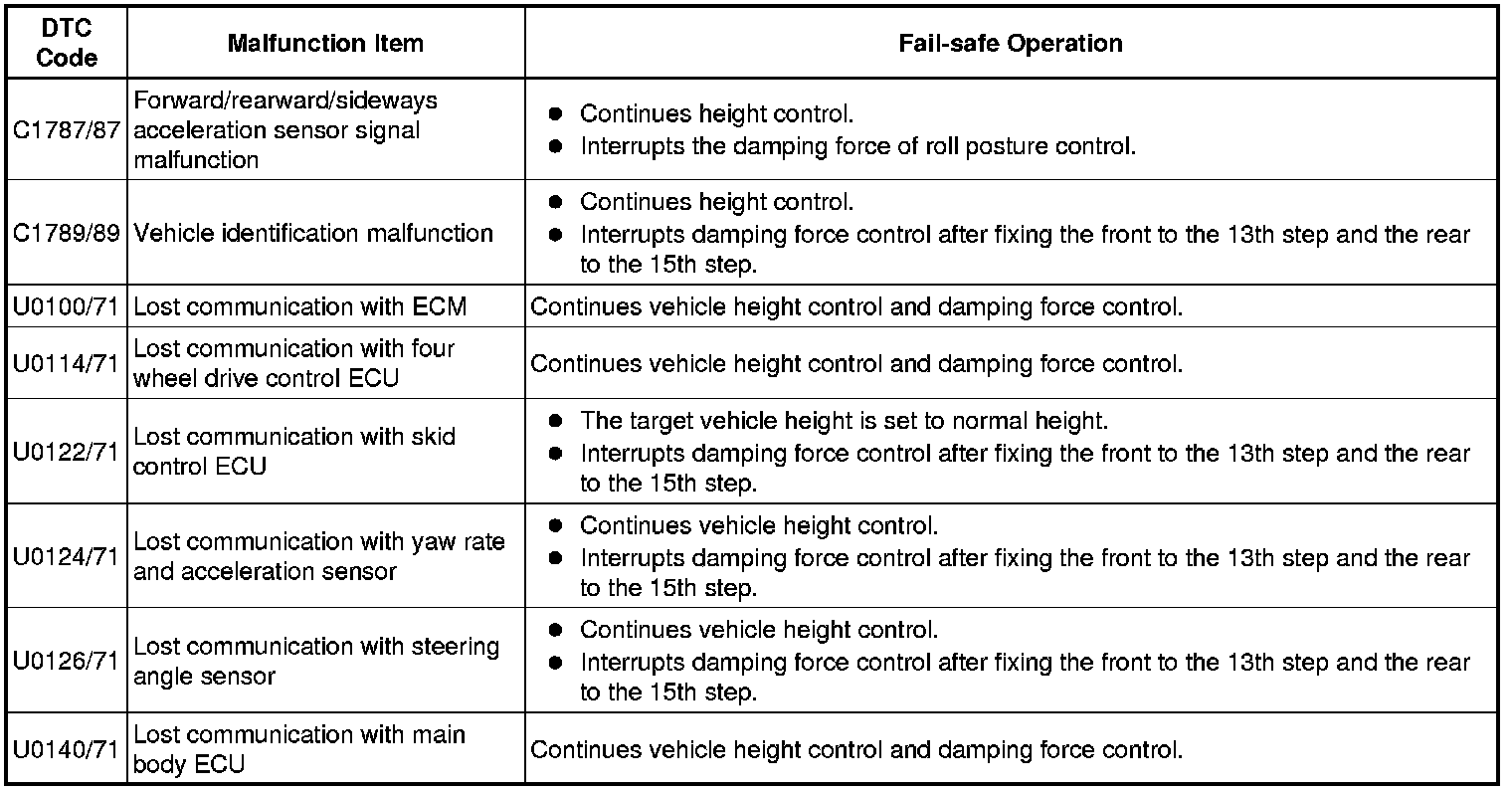

1. FAIL-SAFE FUNCTION

(a) When an air suspension system malfunction is detected under normal control operation, the suspension control ECU suspends switch control of the height control operation.

Air Suspension System
