Absorber Control Switch

SUSPENSION CONTROL: ABSORBER CONTROL SWITCH: INSPECTION

1. INSPECT ABSORBER CONTROL SWITCH

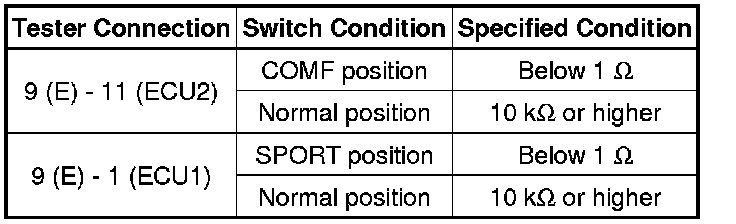

(a) Measure the resistance according to the value(s) in the table below.





Standard Resistance:





Text in Illustration





If the result is not as specified, replace the absorber control switch.
