Ride Control Solenoid Valve: Testing and Inspection

SUSPENSION CONTROL: CONTROL VALVE ASSEMBLY: INSPECTION

1. INSPECT NO. 2 HEIGHT CONTROL VALVE SUB-ASSEMBLY

(a) Measure the resistance according to the value(s) in the table below.

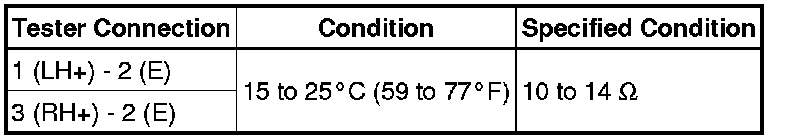

Standard Resistance:





Text in Illustration

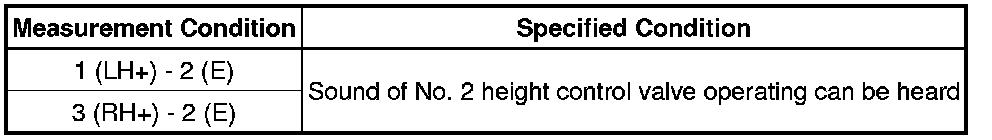

(b) Check the operating sound of the height control valve when battery voltage is applied to the terminals.

OK:





If the result is not as specified, replace the No. 2 height control valve sub-assembly.
