Kinetic Dynamic Suspension System

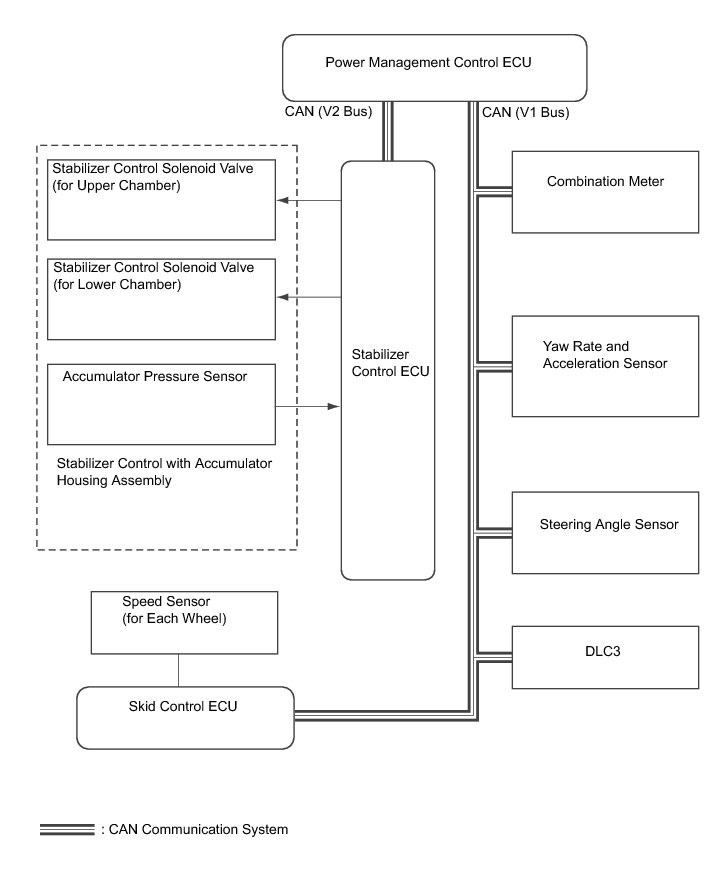

SUSPENSION CONTROL: KINETIC DYNAMIC SUSPENSION SYSTEM: SYSTEM DIAGRAM

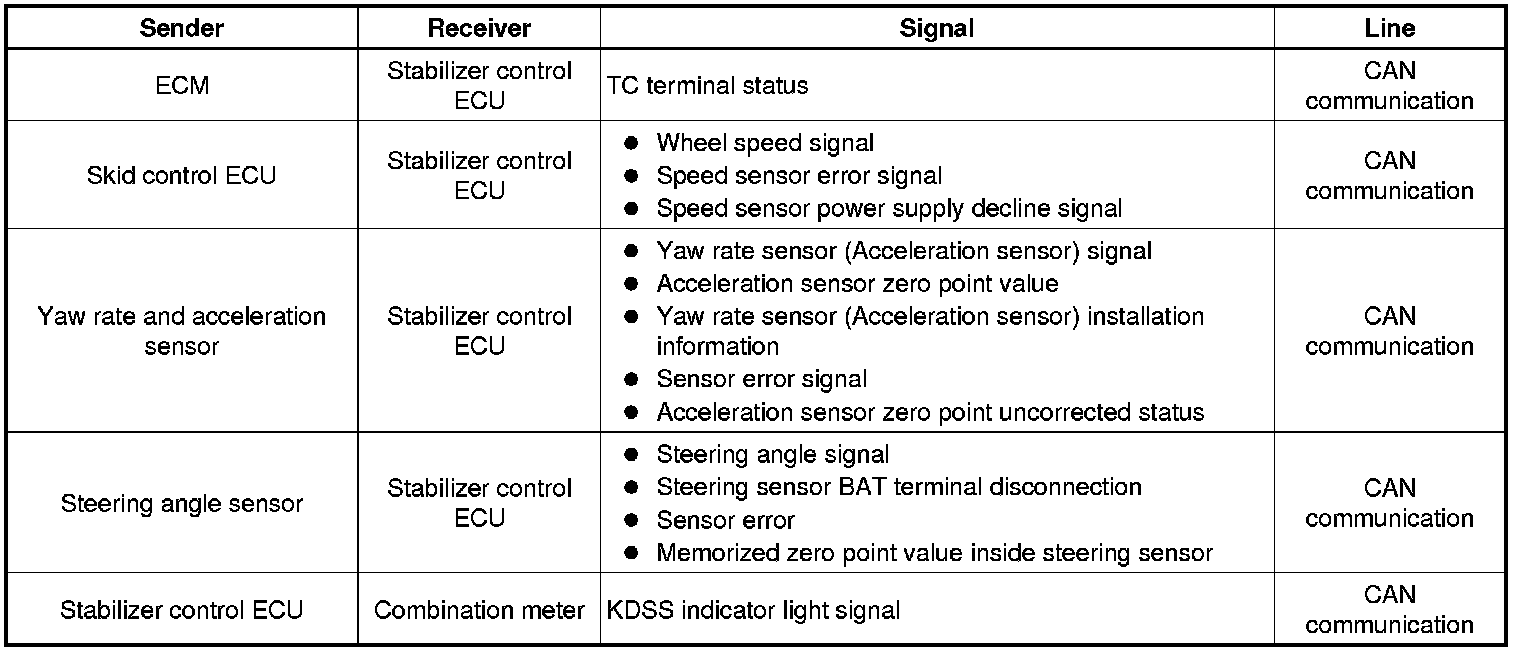

Communication Table










SYSTEM: SYSTEM DESCRIPTION

1. DESCRIPTION

(a) System description

In the KDSS (Kinetic Dynamic Suspension System), a cylinder is installed to each of the front and rear stabilizer bars. The front and rear cylinder upper chambers and the front and rear lower chambers are each connected by a pipe. The hydraulic circuit is filled with high-pressure suspension fluid. The ECU controls the stabilizer control solenoid valves according to input signals from sensor.

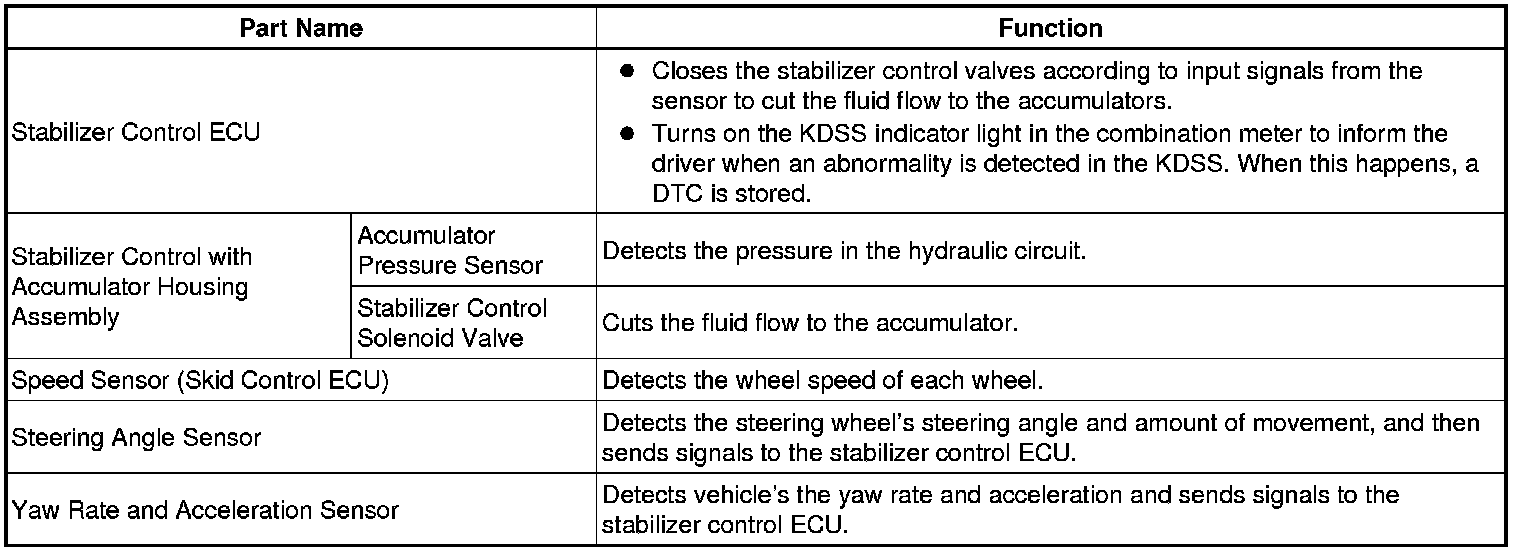

2. FUNCTION OF COMPONENTS
