Damping Control Actuator: Testing and Inspection

SUSPENSION CONTROL: ABSORBER CONTROL ACTUATOR: INSPECTION

1. INSPECT ABSORBER CONTROL ACTUATOR

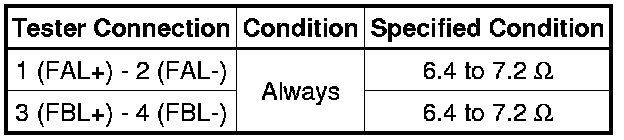

(a) Measure the resistance according to the value(s) in the table below.





Standard Resistance:

for LH





Text in Illustration





If the result is not as specified, replace the absorber control actuator.

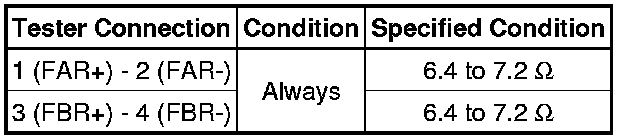

(b) Measure the resistance according to the value(s) in the table below.





Standard Resistance:

for RH





Text in Illustration





If the result is not as specified, replace the absorber control actuator.
