Removal

REAR SUSPENSION: REAR LATERAL CONTROL ROD: REMOVAL

1. REMOVE REAR LATERAL CONTROL ROD ASSEMBLY

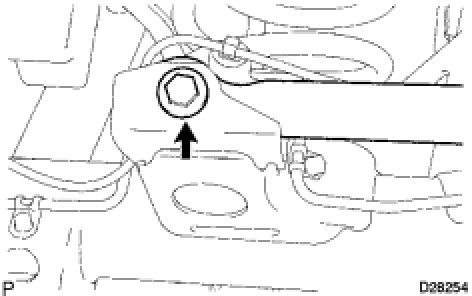

(a) Remove the bolt.

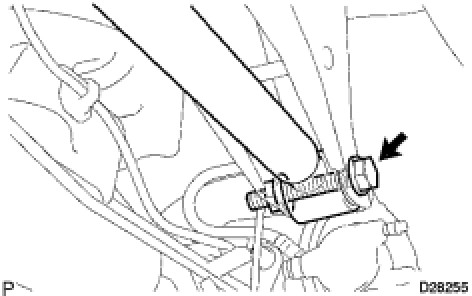

(b) Remove the bolt, nut and lateral control rod assembly.





HINT
Turn the bolt while holding the nut.
