Installation

REAR SUSPENSION: REAR LATERAL CONTROL ROD: INSTALLATION

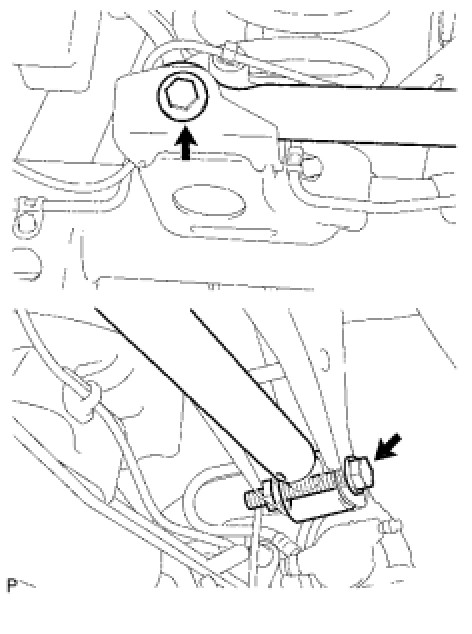

1. TEMPORARILY INSTALL REAR LATERAL CONTROL ROD ASSEMBLY

(a) Temporarily install the lateral control rod assembly with the bolt and nut.

(b) Temporarily install the bolt.

2. STABILIZE SUSPENSION Installation

3. TIGHTEN REAR LATERAL CONTROL ROD ASSEMBLY

(a) Tighten the 2 bolts.





Torque : 130 Nm (1326 kgf-cm, 96 ft-lbf)

HINT
Turn the bolt while holding the nut.
