Removal

AXLE AND DIFFERENTIAL: STEERING KNUCKLE: REMOVAL

HINT
* Use the same procedure for the RH and LH sides.
* The procedure listed below is for the LH side.

1. REMOVE FRONT SPEED SENSOR LH Removal

2. REMOVE FRONT AXLE HUB SUB-ASSEMBLY LH

(a) Remove the front axle hub Removal.

3. DISCONNECT TIE ROD END SUB-ASSEMBLY LH Removal

4. DISCONNECT FRONT LOWER BALL JOINT ATTACHMENT LH





(a) Remove the 2 bolts and disconnect the front lower ball joint attachment from the axle.

5. REMOVE STEERING KNUCKLE LH

(a) Support the front suspension lower arm LH with a jack.

(b) Remove the clip and nut.

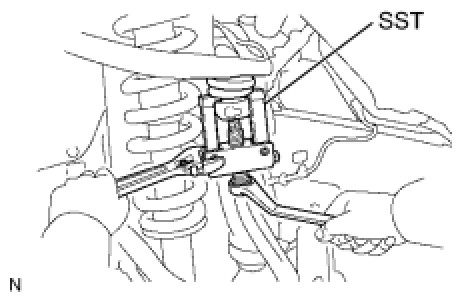

(c) Using SST, disconnect the upper ball joint from the steering knuckle.

SST : 09628-62011





NOTICE:
Do not the damage the ball joint dust cover.

(d) Remove the steering knuckle.
