Removal

REAR SUSPENSION: REAR UPPER ARM: REMOVAL

HINT
* Use the same procedure for the RH and LH sides.
* The procedure listed below is for the LH side.

1. REMOVE REAR WHEEL

2. DISCONNECT REAR HEIGHT CONTROL SENSOR LINK SUB-ASSEMBLY (w/ Air Suspension) Removal

3. REMOVE REAR UPPER CONTROL ARM ASSEMBLY LH

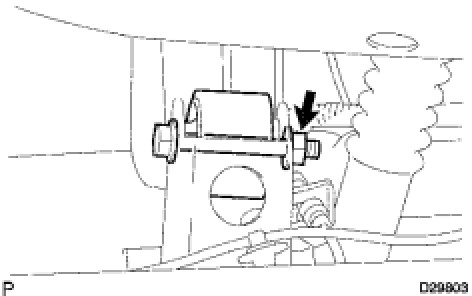

(a) Remove the nut, washer and bolt from the rear axle housing.





HINT
Turn the nut while holding the bolt.

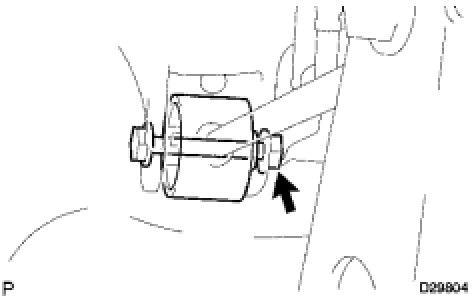

(b) Remove the nut, washer, bolt and upper control arm assembly.





HINT
Turn the nut while holding the bolt.
