Removal

REAR SUSPENSION: REAR LOWER ARM: REMOVAL

HINT
* Use the same procedure for the RH and LH sides.
* The procedure listed below is for the LH side.

1. REMOVE REAR WHEEL

2. DISCONNECT NO. 3 PARKING BRAKE CABLE ASSEMBLY

(a) Remove the bolt and disconnect the No. 3 parking brake cable assembly.

3. REMOVE LOWER CONTROL ARM ASSEMBLY LH

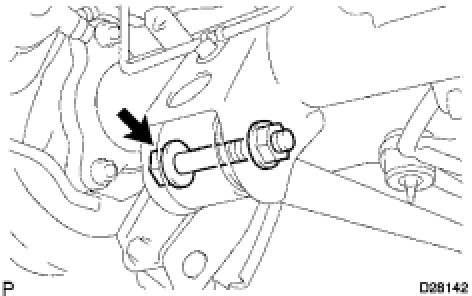

(a) Remove the nut and bolt from the rear axle housing.





HINT
Turn the bolt while holding the nut.

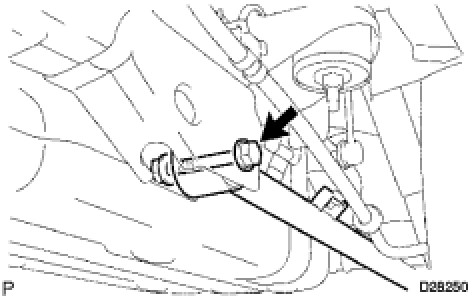

(b) Remove the nut, bolt and lower control arm assembly.





HINT
Turn the bolt while holding the nut.
