Installation

REAR SUSPENSION: REAR LOWER ARM: INSTALLATION

HINT
* Use the same procedure for the RH and LH sides.
* The procedure listed below is for the LH side.
* A bolt without a torque specification is shown in the standard bolt chart Standard Bolt - Specified Torque For Standard Bolts.

1. TEMPORARILY INSTALL LOWER CONTROL ARM ASSEMBLY LH

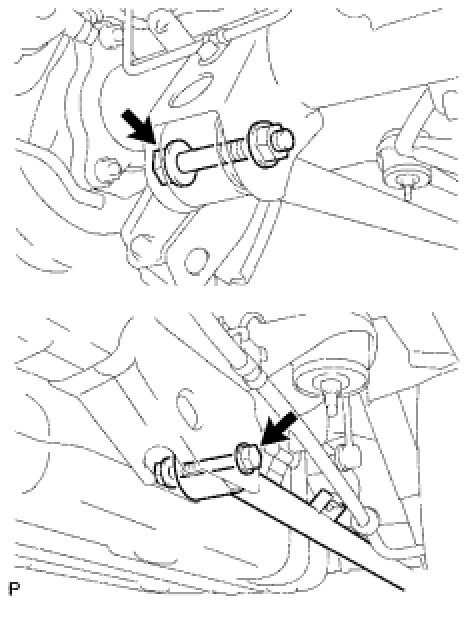

(a) Temporarily install the lower control arm assembly with the bolt and nut.





Text in Illustration





HINT
Install the lower control arm assembly as shown in the illustration.

(b) Temporarily install the lower control arm assembly to the rear axle housing with the nut and bolt.

2. CONNECT NO. 3 PARKING BRAKE CABLE ASSEMBLY

(a) Connect the No. 3 parking brake cable assembly with the bolt.

Torque : 13 Nm (127 kgf-cm, 9 ft-lbf)

3. INSTALL REAR WHEEL

Torque : 112 Nm (1142 kgf-cm, 83 ft-lbf)

4. STABILIZE SUSPENSION Installation

5. TIGHTEN LOWER CONTROL ARM ASSEMBLY LH

(a) Tighten the 2 bolts.





Torque : 130 Nm (1326 kgf-cm, 96 ft-lbf)

HINT
While holding the nut, turn the bolt.
